LOFMEM T

LOFMEM T

LOFMEM T membrane filter cartridges offer precision filtration – even under harsh, corrosive environments. The polytetrafluoroethylene (PTFE) membrane with additional polypropylene support layers and components offer superior hydrophobicity and water intrusion resistance compared to PVDF based media and are more economical than all fluorocarbon filters.

Absolute rated PTFE membrane filter cartridges are suitable for gas/vent applications and the filtration of aggressive compounds. Specific uses include: strong acids and bases, compressed gases, photoresists, pharmaceutical intermediates, hot DI water and fermentation air.

FILTER MATERIAL

Nylon 6.6 membrane




RETENTION

Absolute



MAX. OPERATING TEMPERATURE

176 °F (80 °C)



Core features

  • High flow rates and high surface area minimizes total system size requirements
  • Full traceability marking
  • Integrity testing and 100% flushing with 18 MΩ-cm de-ionized water prior to shipment
  • Manufactured in ISO Class 7 Cleanroom Environment
FILTER MATERIALPTFE membrane (1.4404)
RETENTION RATING0.05, 0.1, 0.2, 0.45, 1 (µm)
RETENTION EFFICIENCYAbsolute
LENGTHS (NOMINAL)10“, 20“, 30“, 40“
ADAPTER CODESDOE, 1, 2, 3, 4, 10, 20
INNER COREPolypropylene
END CAPSPolypropylene
CAGESPolypropylene
MAX. OPERATING TEMPERATURE203 °F (95 °C)
MAX. PRESSURE DIFFERENCE IN FLOW DIRECTION

75 psid at 70 °F (5.2 bar at 21 °C)
40 psid at 176 °F (2.8 bar at 80 °C)
15 psid at 203 °F (1.0 bar at 95 °C)

เขียนวันที่

LOFMEM N

LOFMEM N

LOFMEM N membrane filter cartridges uses absolute rated nylon 66 membrane that is inherently hydrophilic and has excellent chemical resistance. LOFMEM N is manufactured without the use of glues, adhesives or wetting agents, ensuring high purity in every application.

Absolute rated Nylon 6.6 membrane filter cartridges have superior chemical compatibility making them the preferred choice for high purity water filtration, organic solvents and aqueous co-solvent systems, and other water and process applications.



FILTER MATERIAL

Nylon 6.6 membrane




RETENTION

Absolute



MAX. OPERATING TEMPERATURE

176 °F (80 °C)



Core features

  • Hydrophilic Nylon 6.6 membrane
  • Superior chemical resistance
  • Absolute rated filtration
  • All-thermal bonded construction, no adhesives
  • No wetting agents
  • Available in multiple configurations
FILTER MATERIALNylon 66 membrane
RETENTION RATING0.20, 0.45, 1.00(µm)
RETENTION EFFICIENCYAbsolute
LENGTHS (NOMINAL)10“, 20“, 30“, 40“
ADAPTER CODEDOE, 1, 2, 3, 4, 10, 20
INNER COREPolypropylene
END CAPSPolypropylene
CAGESPolypropylene
MAX. OPERATING TEMPERATURE176 °F (80 °C)
MAX. PRESSURE DIFFERENCE IN FLOW DIRECTION

758 psid at 81 °F (4.0 bar at 21 °C)

เขียนวันที่

BECO PROTECT PP Pure

BECO PROTECT PP Pure

BECO PROTECT PP Pure depth filter cartridges are designed for pre and fine depth filtration of many types of beverages, liquid food, cosmetics, fine chemicals, and process water. This filter cartridge’s pleated polypropylene (PP) filter material provides greater surface area and high flow rates.



FILTER MATERIAL

Polypropylene (PP)




RETENTION

99.98% efficiency



MAX. OPERATING TEMPERATURE

176 °F (80 °C)



Core features

  • Large effective filter area through pleated filter material
  • High retention for a reliable separation effect, ß ratio ≥ 5000 or ≥ 99.98% efficiency for defined particles
  • High chemical resistance through use of 100% polypropylene
ARTICLE NUMBERPPPB6 – PPP20
FILTER MATERIALPolypropylene (PP)
RETENTION RATING (ΜM)0.6, 1.2, 3, 5, 10, 20
RETENTION EFFICIENCY99.98%
LENGTHS10″, 20″, 30″, 40″
ADAPTER CODESF, 0, 2, 7
CAGESYes
STRUCTUREPleated
PRESSURE HOLD TEST
TEST PRESSURE IN PSIG AND DIFFUSION RATE PER 10″

–

BACKWASHABILITY29 psid (2.0 bar) at 68 °F (20 °C)
CHEMICAL RESISTANCEpH 1 – 14
MAX. OPERATING TEMPERATURE176 °F (80 °C)
MAX. DIFFERENTIAL PRESSURE IN FLOW DIRECTION

72.5 psid (5.0 bar) at 68 °F (20 °C)

29 psid (2.0 bar) at 176 °F (80 °C)

STEAM CYCLES> 100 at 230 °F (110 °C) in 30 minutes
เขียนวันที่

BECO PROTECT PG

BECO PROTECT PG

BECO PROTECT PG depth filtration cartridges consist of wrapped polypropylene filter material with layered media that allows for coarse to fine filtration in a variety of applications in the beverage and food industry. The graded filter layers from coarse to fine allow a high retention efficiency and excellent backwashing capability combined with a long service life.




FILTER MATERIAL

Polypropylene (PP)




RETENTION

99.98% efficiency



MAX. OPERATING TEMPERATURE

176 °F (80 °C)



Core features

  • High retention for a reliable separation effect, ß ratio ≥ 5000 or ≥ 99.98% efficiency for defined particles
  • Long filter service life
  • High chemical resistance through use of 100% polypropylene
  • High dirt holding capacity through graded filter configuration
  • Back-washable up to 29 psig (200 kPa, 2 bar) at 176 °F (80 °C)
ARTICLE NUMBERPG002 – PG995
FILTER MATERIALPolypropylene (PP)
RETENTION RATING (ΜM)0.2, 0.3, 0.5, 0.6, 0.8 1, 2, 3, 5, 10, 15, 20, 30, 40, 50, 75 100, 120, 150
RETENTION EFFICIENCY99.98%
LENGTHS9.75″, 10″, 19.5″, 20″, 29.5″, 30″, 40″
ADAPTER CODESX, F, 0, 2, 7
CAGESYes
STRUCTUREWrapped
PRESSURE HOLD TEST
TEST PRESSURE IN PSIG AND DIFFUSION RATE PER 10″

–

BACKWASHABILITYUp to 29 psid (2.0 bar) at 176 °F (80 °C)
CHEMICAL RESISTANCEpH 1 – 14
MAX. OPERATING TEMPERATURE176 °F (80 °C)
MAX. DIFFERENTIAL PRESSURE IN FLOW DIRECTION

69.6 psid (4.8 bar) at 77 °F (25 °C)

29 psid (2.0 bar) at 176 °F (80 °C)

STEAM CYCLES> 100 at 230 °F (110 °C) in 30 minutes
เขียนวันที่

BECO PROTECT PB

BECO PROTECT PB

The BECO PROTECT PB depth filtration cartridges consist of thermally bonded, melt-blown polypropylene filter material that gives them a high chemical resistance and added dirt holding capacities. They are ideal for meeting the coarse pre-filtration requirements of process water in the food industry.



FILTER MATERIAL

Polypropylene (PP)




RETENTION

90% efficiency



MAX. OPERATING TEMPERATURE

149 °F (65 °C)



Core features

  • High dirt holding capacity
  • High chemical resistance
  • Pressure surge resistance
  • Long service life
ARTICLE NUMBERPB005 – PB999
FILTER MATERIALPolypropylene (PP)
RETENTION RATING (ΜM)0.5, 1, 3, 5, 10, 25, 50, 75, 100
RETENTION EFFICIENCY90%
LENGTHS9.75”, 10”, 19.5”, 20”, 29.5”, 30”, 39”, 40”
ADAPTER CODESNo
CAGESMelt-blown
STRUCTUREWrapped
PRESSURE HOLD TEST
TEST PRESSURE IN PSIG AND DIFFUSION RATE PER 10″		–
BACKWASHABILITYYes
CHEMICAL RESISTANCEpH 1 – 14
MAX. OPERATING TEMPERATURE149 °F (65 °C)
MAX. DIFFERENTIAL PRESSURE IN FLOW DIRECTION

46.4 psid (3.2 bar) at 68 °F (20 °C)

17.4 psid (1.2 bar) at 140 °F (60 °C)

STEAM CYCLESNot recommended
เขียนวันที่

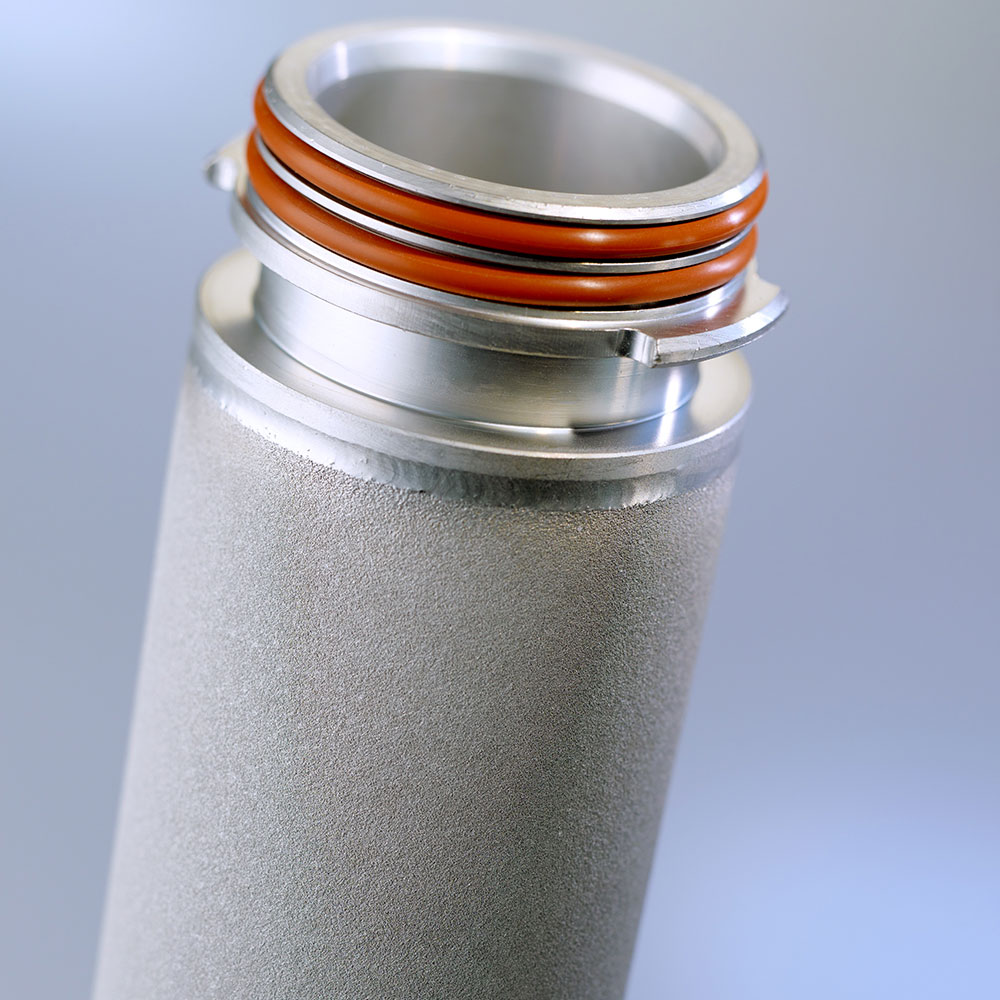

BECO PROTECT KM

BECO PROTECT KM

BECO PROTECT KM stainless steel depth filtration cartridges are made from porous metal powder (316 L) and are available with retention rating of 10 µm. These filter cartridges are ideal for separating rust particles and abraded matter in steam filtration applications as well as the filtration of liquids at high temperatures.




FILTER MATERIAL

Stainless steel 316L (1.4404)




RETENTION

Nominal



MAX. OPERATING TEMPERATURE

392 °F (200 °C)



Core features

  • Pure stainless steel (316 L)
  • High mechanical and thermal stability
  • Large pore volume and high permeability
  • Multiple regeneration cycles
ARTICLE NUMBERKM10
FILTER MATERIALStainless steel 316L (1.4404)
RETENTION RATING (ΜM)10
RETENTION EFFICIENCYNominal
LENGTHS10”, 20”, 30”
ADAPTER CODES7
CAGESYes
STRUCTURESintered
PRESSURE HOLD TEST
TEST PRESSURE IN PSIG AND DIFFUSION RATE PER 10″		–
BACKWASHABILITYUp to 14.5 psid (1.0 bar) at 77 °F (25 °C)
CHEMICAL RESISTANCEpH 1 – 14
MAX. OPERATING TEMPERATURE392 °F (200 °C)
MAX. DIFFERENTIAL PRESSURE IN FLOW DIRECTION–
STEAM CYCLES> 100
เขียนวันที่

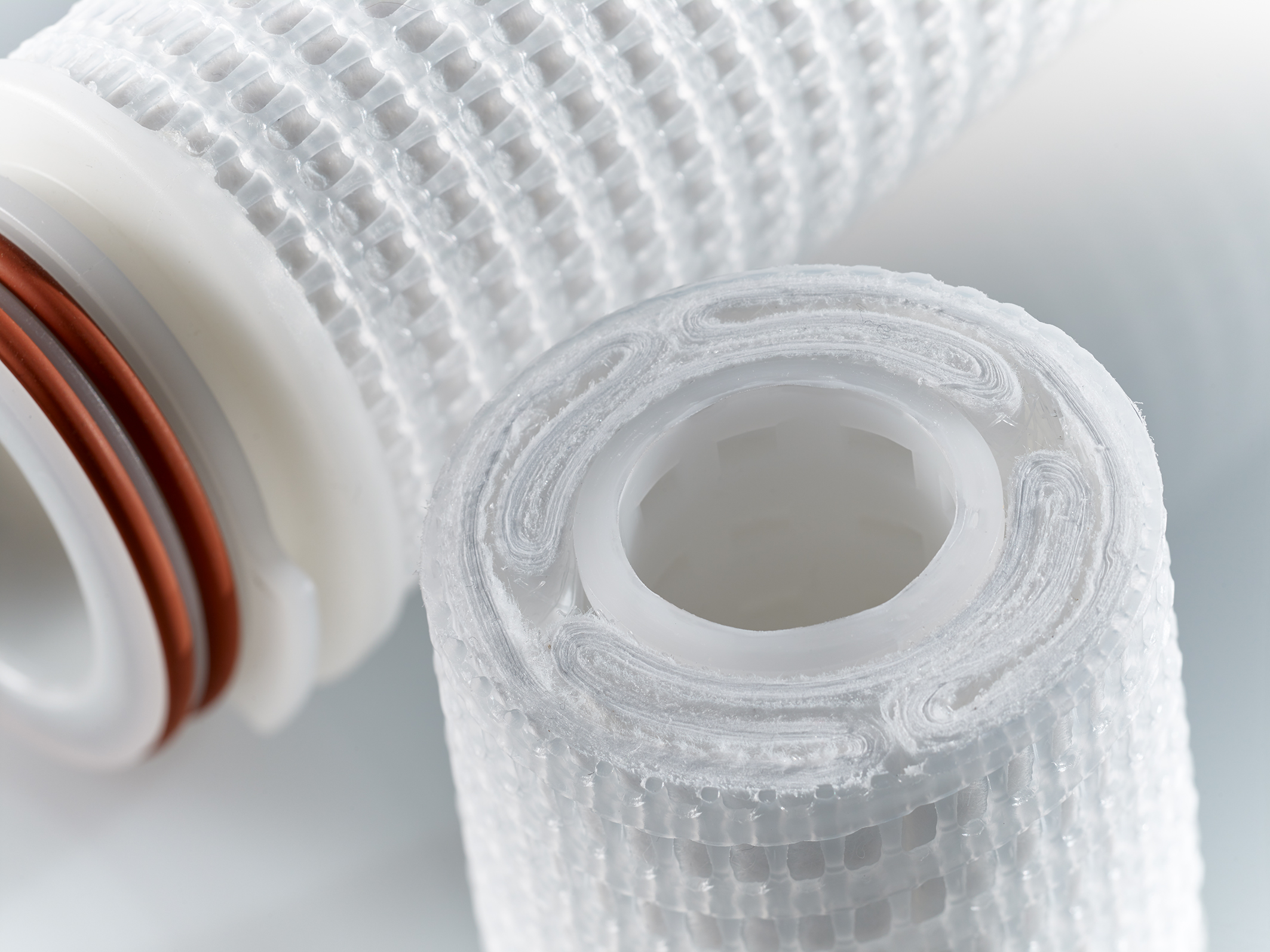

BECO PROTECT FS

BECO PROTECT FS

BECO PROTECT FS FineStream innovative depth filtration cartridges are used to protect downstream membrane filter cartridges in beverage filtration. The innovative and unique special pleating with variable flow rate increases the filter area and achieves unparalleled efficiency of retentions for pre-filtration.



FILTER MATERIAL

Polypropylene (PP)




RETENTION

99.98% efficiency



MAX. OPERATING TEMPERATURE

176 °F (80 °C)



Core features

  • High retention for a reliable separation effect, ß ratio ≥ 5000 or ≥ 99.98% efficiency for defined particles
  • Outstanding protection for subsequent membrane filtration thanks to the fine, newly developed filter material (by 0.2 µm –type) and thus an increased membrane filter cartridge service life
  • The larger filter area gives a greater filter performance
  • Variable flow
  • Minimum product loss with flow from inside to outside
  • Backwashable at up to 29 psig (200 kPa, 2 bar) at 176 °F (80 °C)
  • High chemical resistance by using 100% polypropylene
ARTICLE NUMBERFS002 – FS200
FILTER MATERIALPolypropylene (PP)
RETENTION RATING0.2, 0.3, 0.5, 0.6, 0.8, 1, 2, 3, 5, 10, 20 (µm)
RETENTION EFFICIENCY99.98%
LENGTHS10″, 20″, 30″, 40″
ADAPTER CODESF, 0, 2, 7
CAGESYes
STRUCTURESpecial Pleated
PRESSURE HOLD TEST
TEST PRESSURE IN PSIG AND DIFFUSION RATE PER 10″		–
BACKWASHABILITYUp to 29 psid (2.0 bar) at 176 °F (80 °C)
CHEMICAL RESISTANCEpH 1 – 14
MAX. OPERATING TEMPERATURE176 °F (80 °C)
MAX. DIFFERENTIAL PRESSURE IN FLOW DIRECTION

69.6 psid (4.8 bar) at 77 °F (25 °C)

29 psid (2.0 bar) at 176 °F (80 °C)

STEAM CYCLES> 100 at 230 °F (110 °C) in 30 minutes
เขียนวันที่

BECO PROTECT CS

BECO PROTECT CS

BECO PROTECT CS CellStream depth filtration cartridges are the first depth filteration cartridges to be made from BECOPAD depth filter sheet material. The unique method of wrapping maximizes the filter area and additionally provides outstanding mechanical and thermal stability for all beverage filtration applications.




FILTER MATERIAL

Special cellulose



RETENTION

Nominal

MAX. OPERATING TEMPERATURE

176 °F (80 °C)

Core features

  • Robust design for high economic efficiency (backwashable at up to 29 psig (200 kPa, 2 bar) at 176 °F (80 °C), steamable > 50 cycles)
  • High retention of fine particles and colloids (BECO PROTECT CS 115) for optimum preparation and protection of downstream membrane filtration systems
  • Cartridges fit in commercially available filter cartridge housings (code 2 and 7)
  • Suitable for very small quantities
ARTICLE NUMBERCS115, CS170, CS270
FILTER MATERIALSpecial cellulose (PP)
RETENTION RATING (ΜM)0.2, 0.4, 0.7
RETENTION EFFICIENCYNominal
LENGTHS30″, 40″
ADAPTER CODES2, 7
CAGESYes
STRUCTUREWrapped
PRESSURE HOLD TEST
TEST PRESSURE IN PSIG AND DIFFUSION RATE PER 10″

–

BACKWASHABILITYUp to 29 psid (2.0 bar) at 176 °F (80 °C)
CHEMICAL RESISTANCELimited
MAX. OPERATING TEMPERATURE176 °F (80 °C)
MAX. DIFFERENTIAL PRESSURE IN FLOW DIRECTION

21.8 psid (1.5 bar) at 68 °F (20 °C)

STEAM CYCLES> 100 at 230 °F (110 °C) in 30 minutes

© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

BECO PROTECT CL

BECO MEMBRAN PS Wine

BECO PROTECT CL Coreless depth filter cartridges consist of wrapped polypropylene filter material with different layers from coarse to fine. The filter cartridges are manufactured without a core and with a large diameter to provide high flow rates. BECO PROTECT CL Coreless depth filter cartridges are used in a variety of applications with high flow rates for liquid clarification in the food and beverage industry.



FILTER MATERIAL

Polypropylene

RETENTION

99.98% efficiency

MAX. OPERATING TEMPERATURE

176 °F (80 °C)

Core features

  • Large diameter filter cartridge for high flow rates and low differential pressure
  • Long filter service life
  • High chemical resistance through use of 100% polypropylene
  • High dirt holding capacity through graded filter configuration
  • No binders or adhesives

© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

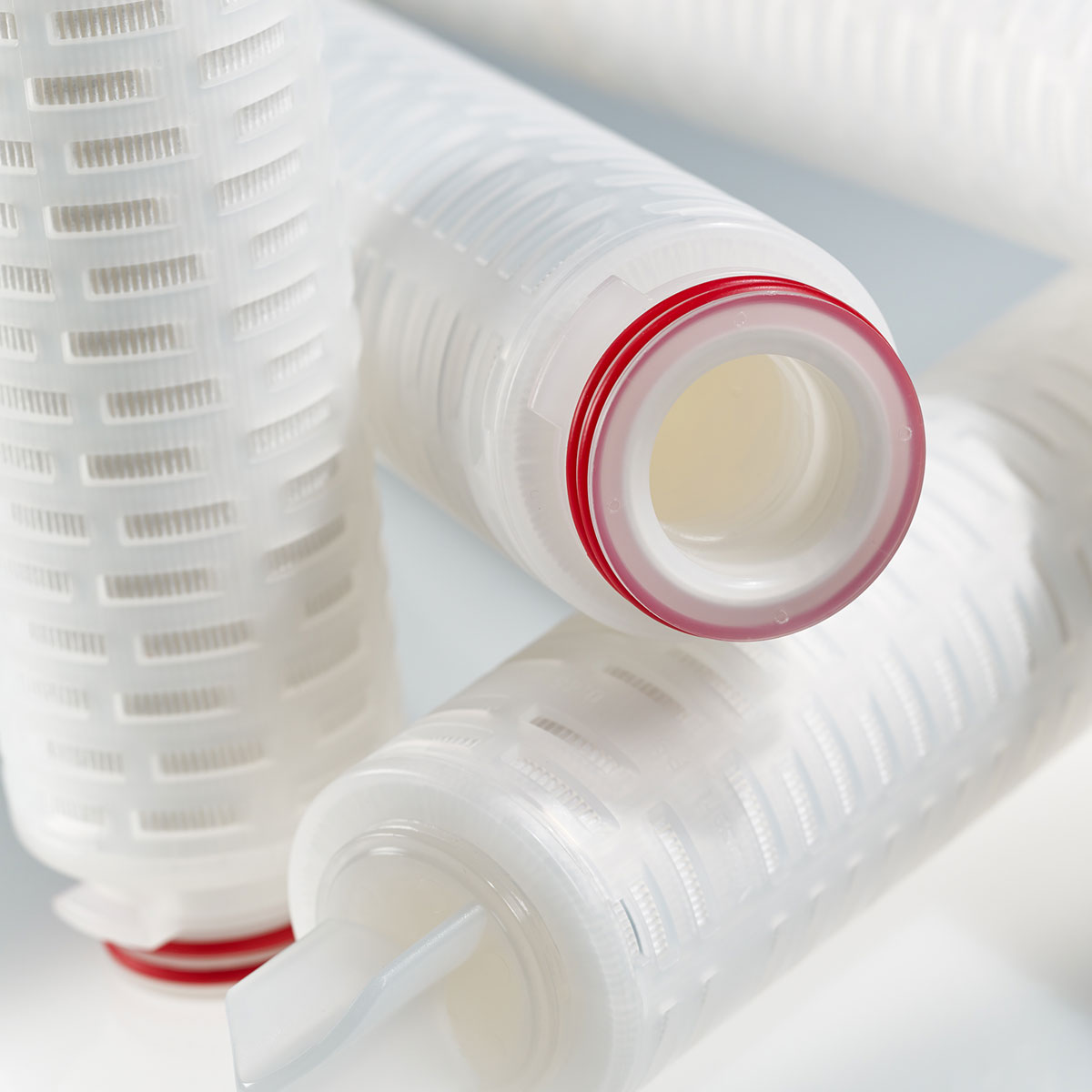

BECO MEMBRAN PS Wine

BECO MEMBRAN PS Wine

Winemakers give special attention to the color and flavor of their wines. Filtering wine is an important step in the final stages of wine and sparkling wine to ensure microbial stable and flavorful wine. Eaton’s BECO MEMBRAN PS Wine membrane filter cartridges are designed specifically for reliable removal of spoilage microorganisms of wine and sparkling wine.

BECO MEMBRAN PS Wine filter cartridge are made of high-quality polyethersulfone membranes that perfectly combine long service life with full maintenance of valuable flavor and color of premium wines.

FILTER MATERIAL

Polyethersulfone

RETENTION

Absolute (LRV-Values)

MAX. OPERATING TEMPERATURE

166 °F (80 °C)

Core features

  • The asymmetric polyethersulfone membrane provides high microbiological retention and can be integrity tested
  • The high filter area and asymmetric membrane structure of polyethersulfone offers exceptionally high flow rates and outstanding service life
  • The special design allows for 72.5 psi (5 bar) differential pressure in the direction of flow and 29 psi (2 bar) differential pressure in reverse to support a long service life
  • The high thermal stability allows more than 100 steam sterilization cycles
  • Available in 0.45 and 0.65 µm, code 2 and 7 and length of 20" (500 mm) and 30" (750 mm). For other dimensions and retention ratings it can be perfectly complemented by BECO MEMBRAN PS Pure Range
  • Full maintenance of valuable flavor and color in wines
  • Eaton can suggest the most economical configuration of pre and final filter
ARTICLE NUMBERPSW04, PSW06
FILTER MATERIALPolyethersulfone
RETENTION RATING (ΜM)0.45, 0.65
RETENTIONAbsolute
LENGTHS20”, 30”
ADAPTER CODES2, 7
CAGESYes
STRUCTUREPleated
PRESSURE HOLD TEST
TEST PRESSURE IN PSIG AND DIFFUSION RATE PER 10″

PSW04
21.8 psig (1.5 bar)  ≤ (15 ml/min)

PSW06
14.5 psig (1.0 bar) ≤ 10 ml/min

BACKWASHABILITYLimited 29 psid (2.0 bar) at 68 °F (20 °C)
CHEMICAL RESISTANCEpH 1 – 14
MAX. OPERATING TEMPERATURE176 °F (80 °C)
MAX. DIFFERENTIAL PRESSURE IN FLOW DIRECTION

72.5 psid (5.0 bar) at 68°F (20 °C)

4.4 psid (0.3 bar) at 250 °F (121 °C)

STEAM CYCLES≥ 100 at 221 °F (105 °C) in 30 minutes
