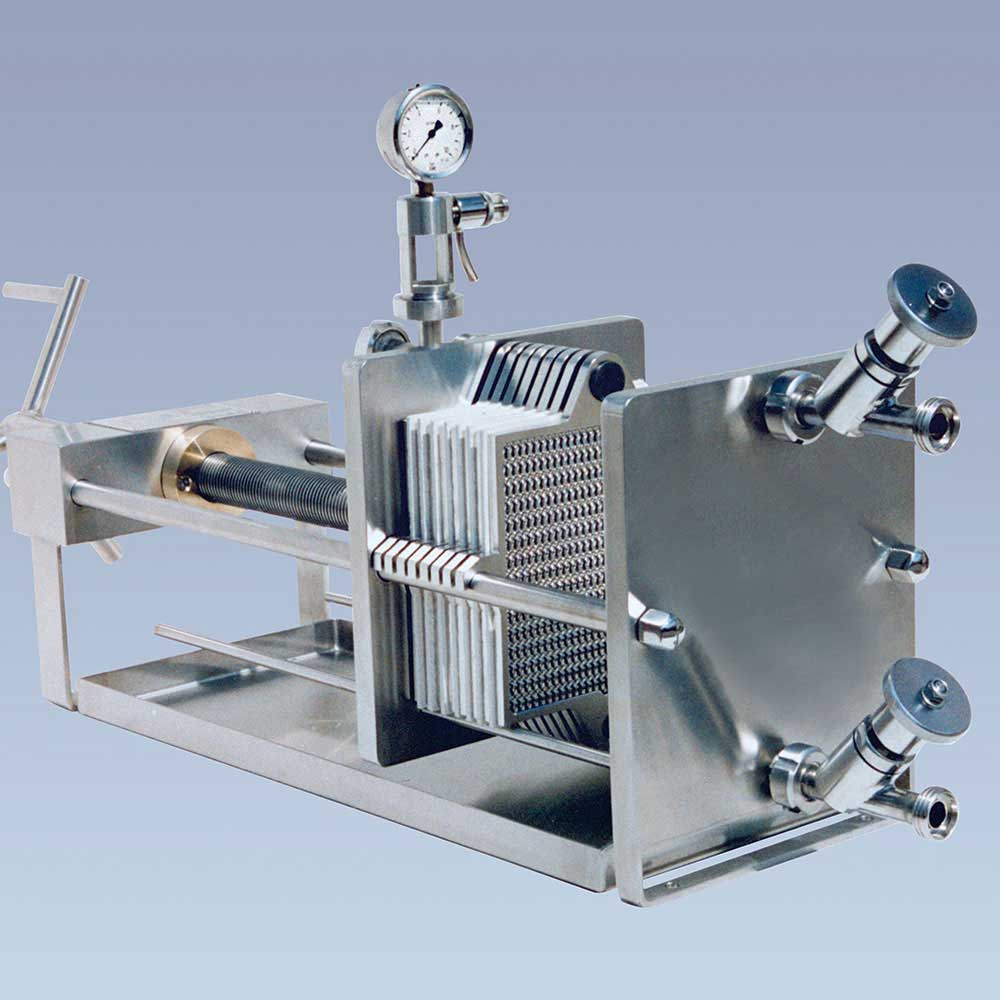

BECO COMPACT PLATE 200

BECO COMPACT PLATE 200

The Eaton BECO COMPACT PLATE 200 SF/ASF plate and frame filters are adapted to the specific practical requirements of small filtration quantities. The stationary filter frame with central, manual rightening spindle and filter and frame elements made from stainless steel, AISI 316 L, can be equipped with a maximum filter area of 1.02 m².

Eaton’s depth filtration system for small volume filtration tasks in laboratories and research centers. The areas of application include small batches and upscaling in the biotechnology and pharmaceutical, chemical, cosmetics and foodstuff industries. Eaton’s BECO COMPACT PLATE 200 filter is a high-class multi sheet filter with high compression of the depth filter sheets.

MATERIAL

Stainless Steel







MAX. FILTER AREA

1.1 ft² (1.02 m²)




USE

Laboratory, Small Batches





Core features

  • High flexibility owing to the simple adaptation of the filter area ( from 0.07 to 1.02 m²) to the respective application
  • Variable application options because of the use of filtrate plates, feed plates or cake frames
  • Can be used as a sheet filter, precoating filter or as a combination of both
  • Easy handling and good cleanability thanks to ergonomic design, smooth surfaces and open support grid of filter plates
  • Low drip loss due to the compact design of the filter and a larger spindle
  • High chemical resistance for the use of quality stainless steel materials, AISI 316 L/AISI 316 Ti

Industries include:

  • Beer
  • Wine
  • Fruit juice
  • Fruit wine
  • Fine chemicals
  • Pharmaceuticals
Operating pressure:max. 145 psi (1,000 kPa/10 bar)
Differential pressure:max. 58 psi (400 kPa/4 bar)
Operating temperature:max. 284 °F (140 °C), depending on the filter plates used
Filter area per sheet:0.37 ft² (0.034 m²)
Product contacting parts:Stainless steel AISI 316L/AISI 316Ti
Other parts:Stainless steel AISI 304
Gaskets/O-Rings:Silicone, Viton
Inlet:DN 15, DIN 11851
Outlet:DN 15, DIN 11851
 WidthCake volumeWeight
Filter plate0.32 in (8 mm)–1.8 lb (0.8 kg)
Feed plate0.32 in (8 mm)–1.8 lb (0.8 kg)
Cake frame0.32 in (8 mm)0.03 gal (0.12 l)1.8 lb (0.8 kg)
Cake frame0.98 in (25 mm)0.17 gal (0.65 l)5.3 lb (2.4 kg)
TypeFilter area
ft² (m²)		Cake
volume*
gal (l)		Filter plates/
cake frames		Depth filter sheets
7.9 x 7.9 in
(200 x 200 mm)
qty.		Weight
≈ lb (kg)
200 SF10.98 (1.02)–14/1530176 (80)
200 ASF
with 0.32″ (8 mm) cake frames		10.98 (1.02)0.48 (1.8)14/1530172 (78)
200 ASF
with 0.98″ (25 mm) cake frames		8.07 (0.75)1.89 (7.15)10/1122201 (91)

© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

BECO MiniCap P

BECO MiniCap P

BECO MiniCap P ready-to-use filters include BECOPAD P depth filter sheets. The BECOPAD P depth filter sheet’s high-purity celluloses form a unique structure, which even for microbe removal does not require mineral components.

The BECO MiniCap P disposable filters are used for the filtration of small volumes of media containing particles, or for microbe removal.

FILTER MATERIAL

Totally Disposable







RETENTION

3.3 in² (21.2 cm²)




MAX. OPERATING TEMPERATURE

Scale-up Trials





Core features

  • Shorter process times
  • Higher process safety
  • No cleaning effort or cleaning validation required

BECOPAD P depth filter media are cationic, characterized by charge-related adsorption during filtration. Additionally, the filter medium has very low soluble ion content, especially calcium, magnesium, and aluminum. The chemical resistance and bursting strength is extremely high. Therefore, is suitable for applications involving mechanical separation of particles and adsorptive retention of negatively charged particles.

Due to the minimum endotoxin content and the increased endotoxin reduction, the filter medium is ideal for pharmaceutical processes.

BECO MiniCap P filters have a filter area of 3.3 in² (21 cm²). With a filtration volume of 0.26 – 2.6 gal (1 – 10 liter), they are suitable for laboratory applications and scale-up trials.

Applications

  • Scale-up trials
  • Selection of suitable filter media and determination of the required filter area
  • Sample preparation
  • Separation of cell debris
  • Filtration of cell culture media
  • Filtration of serum

Industries include:

  • Biotechnology
  • Pharmaceutical
  • Fine Chemistry

OVERVIEW OF BECO MINICAP P FILTERS

Order numberBECO MiniCap P
F1711300BECO MiniCap P 170 Kit
F2711300BECO MiniCap P 270 Kit
F3511300BECO MiniCap P 350 Kit
F5511300BECO MiniCap P 550 Kit
F5811300BECO MiniCap P 580 Kit

TECHNICAL DATA

Effective filter area3.3 in² (21.2 cm²)
Diameter of the filtration unit2.9 in (74 mm)
HousingPolypropylene according to FDA CFR § 177.1520
Connections (filtrate inlet and outlet)Hose connections 0.24 – 0.47 in (6 – 12 mm) in diameter
Reference values for the flow capacity0.26 – 0.52 gal/h (1 – 2 l/h)
Max. inlet and differential pressure44 psi (300 kPa/3 bar) at 77 °F (25 °C)
Filling volume0.44 fl oz (13 ml)
Dead volume after purging with compressed air 4.4 psi (30 kPa/300 mbar)0.17 fl oz (5 ml)



Article numberDepth filter media usedNominal retention rate μmThick-nessAsh contentBursting strength wet % Water throughput atEndo-toxin content (EU/ml**)
   in (mm)%psi (kPa) Δ p = 14.5 psi gpm/ft2(Δ p = 100 kPa* l/m2/min)
F1711300BECOPAD P 1700.2 – 0.40.15 (3.9)< 1> 21.8 (150) 1.9(77)< 0.025
F2711300BECOPAD P 2700.5 – 0.70.15 (3.9)< 1> 21.8 (150) 3.3(135)< 0.025
F3511300BECOPAD P 3500.7 – 1.00.15 (3.9)< 1> 21.8 (150) 3.9(160)< 0.025
F5511300BECOPAD P 5502.0 – 3.00.15 (3.9)< 1> 21.8 (150) 17.2(700)< 0.025
F5811300BECOPAD P 5808.0 – 10.00.15 (3.9)< 1> 21.8 (150) 87.6(3571)< 0.025

© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

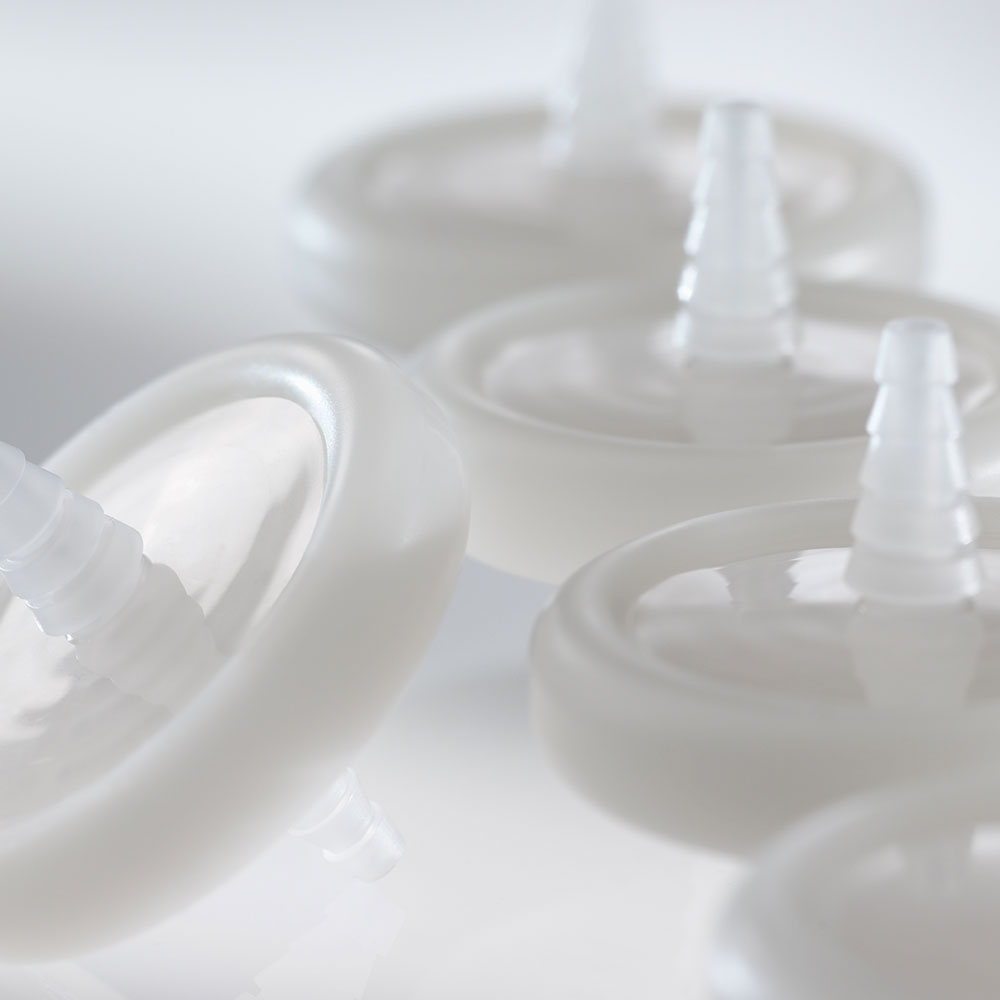

BECO MiniCap

BECO MiniCap

BECO MiniCap filters are ready-to-use for the filtration of small volumes of media containing particles, or for microbiological removal in pharmaceutical and biotechnology applications.

Eaton’s BECO MiniCap depth filters have a filter area of 3.3 in² (21 cm²). With a filtration volume of 0.26 – 2.6 gal (1 – 10 liter) and suitable for laboratory applications and scale-up trials. Eaton’s BECO MiniCap depth filter capsules are available with the BECO PR depth filter sheets and used for pharmaceutical and biotechnology applications, or with more open CP2KS types for prefiltration.

FILTER MATERIAL

Totally Disposable







RETENTION

3.3 in² (21.2 cm²)




MAX. OPERATING TEMPERATURE

Scale-up Trials





Core features

  • Shorter process times
  • Higher process safety
  • No cleaning effort or cleaning validation required

BECO MiniCap Filters with BECO PR Depth Filter Sheet

The PR range, specifically for pharmaceutical and biotechnology applications, has an innovative production process that ensures the endotoxin content is less than 0.125 EU/ml. The special characteristic of this series is high endotoxin retention during filtration of different pharmaceutical products.

BECO MiniCap CP2KS Filters

BECO MiniCap CP2KS filters are optimal for the filtration of strongly colloidal and highly viscous liquids and for liquids containing particles. The high dirt holding capacity enables long service life of the depth filter medium.

Applications

  • Scale-up trials
  • Selection of suitable filter media and determination of the required filter area
  • Sample preparation
  • Separation of cell debris
  • Filtration of cell culture media
  • Filtration of serum

BECO MiniCap filters have a filter area of 21 cm². With a filtration volume of 1 – 10 liter, they are suitable for laboratory applications and scale-up trials.

BECO MiniCap filters are available with the BECO PR depth filter sheets for pharmaceutical and biotechnology applications, or with more open CP2KS filters type for effective prefiltration.

Industries include:

  • Biotechnology
  • Pharmaceutical
  • Fine Chemistry

OVERVIEW OF BECO MINICAP FILTERS

Order numberBECO MiniCap Filters PR Range
F001P300BECO MiniCap PR Steril S 100 Kit
F002P300BECO MiniCap PR Steril S 80 Kit
F004P300BECO MiniCap PR Steril 40 Kit
F008P300BECO MiniCap PR 12 Kit
F020P300BECO MiniCap PR 5 Kit
F040P300BECO MiniCap PR 1 Kit
CP2KS
F270T300BECO MiniCap CP2KS Kit

TECHNICAL DATA

Effective filter area3.3 in² (21.2 cm²)
Diameter of the filtration unit2.9 in (74 mm)
HousingPolypropylene according to FDA CFR § 177.1520
Connections (filtrate inlet and outlet)Hose connections 0.24 – 0.47 in (6 – 12 mm) in diameter
Reference values for the flow capacity0.26 – 0.52 gal/h (1 – 2 l/h)
Max. inlet and differential pressure44 psi (300 kPa/3 bar) at 77 °F (25 °C)
Filling volume0.44 fl oz (13 ml)
Dead volume after purging with compressed air 4.4 psi (30 kPa/300 mbar)0.17 fl oz (5 ml)



TypeArticle numberNominal retention rate μmThick-nessAsh contentBursting strength wet % Water throughput atEndo-toxin content (EU/ml**)
   in (mm)%psi (kPa) Δ p = 14.5 psi gpm/ft2(Δ p = 100 kPa* l/m2/min)
PR Steril S100272950.10.15 (3.9)58> 7.3 (50) 0.7(30)< 0.125
PR Steril S 80272800.20.15 (3.9)50> 11.6 (80) 1.1(46)< 0.125
PR Steril 40272400.40.15 (3.9)49> 7.3 (50) 1.5(61)< 0.125
PR 12272120.80.15 (3.9)50> 18.9 (130) 4.3(175)< 0.125
PR 5272052.00.15 (3.9)50> 8.7 (60) 8.1(330)< 0.125
PR 1272004.00.11 (2.9)49> 7.3 (50) 58.4(2380)

CP2KS2703127.00.15 (3.9)< 1> 21.8 (150) 239.5(9760)–

© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

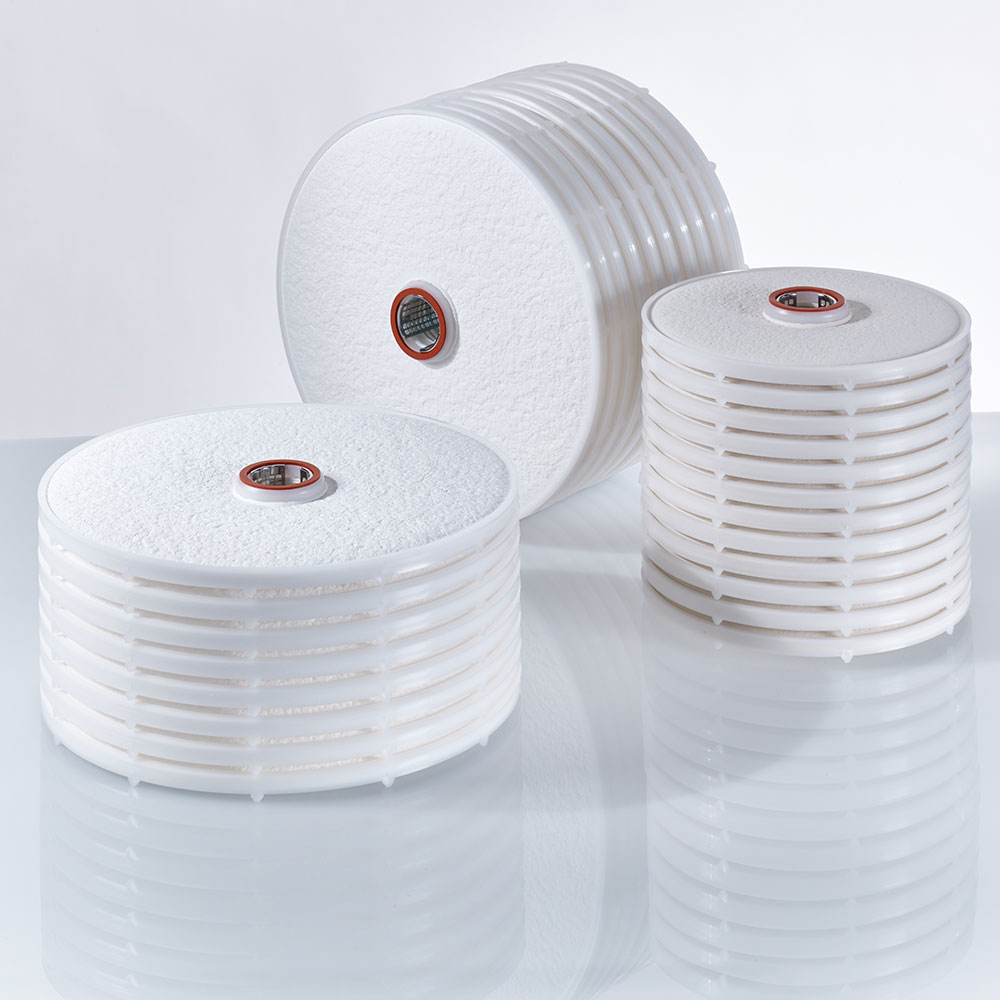

BECODISC BXS

BECODISC BXS

The BECODISC BXS stacked disc cartridges contain two layers of BECO depth filter sheets in one filter unit. The double layer design of the filter cells allows a two-step filtration with fine-tuned retention ratings for pre- and fine filtration. The product range seamlessly covers retention grades between 30 and 0.1 μm, to ensure a comprehensive portfolio for all customer needs.




FILTER MATERIAL

Cellulose with mineral components







RETENTION

Coarse, clarifying, fine filtration; Microbial reduction and removal




MAX. OPERATING TEMPERATURE

FDA, EC1935/2004





Core features

  • Economical filtration process due to B21
  • Maximized performance and lifetime due to increased dirt holding capacity and particle retention
  • Easy handling and shorter setup times
  • Small footprint and lower investment costs for the stacked disc cartridge housings
  • Reduced process costs due to Reduced rinsing volume"

Segments:

  • Beer
  • Wine
  • Fruit juice
  • Spirits
  • Food
  • Fine and Specialty Chemistry
  • Biotechnology
  • Pharmaceutical
  • Cosmetics
  Water throughput at
Utilized BECOPAD®- depth filter sheetNominal retention rate μmΔ p = 100 kPa* l/m2/minΔ p = 14.5 psi gpm/ft2Code Pre-filter layerCode Main filter layer
Steril S 1000.1300.7A01
Steril S 800.2461.1B02
Steril 600.3601.5C03
Steril 400.4691.7D04
SD 300.5842.1E05
KDS 150.61152.8F06
KDS 120.81553.8G08
KD 101.01854.5H10
KD 71.52255.5I15
KD 52.02706.6J20
KD 32.542510.4K25
K23.0155038.0L30
K14.0190046.6M40
CP07S15.04290105.3N–
CP03S20.07140175.2O–
CP02S25.09520233.6P–
CP01S30.012500306.8Q–

© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

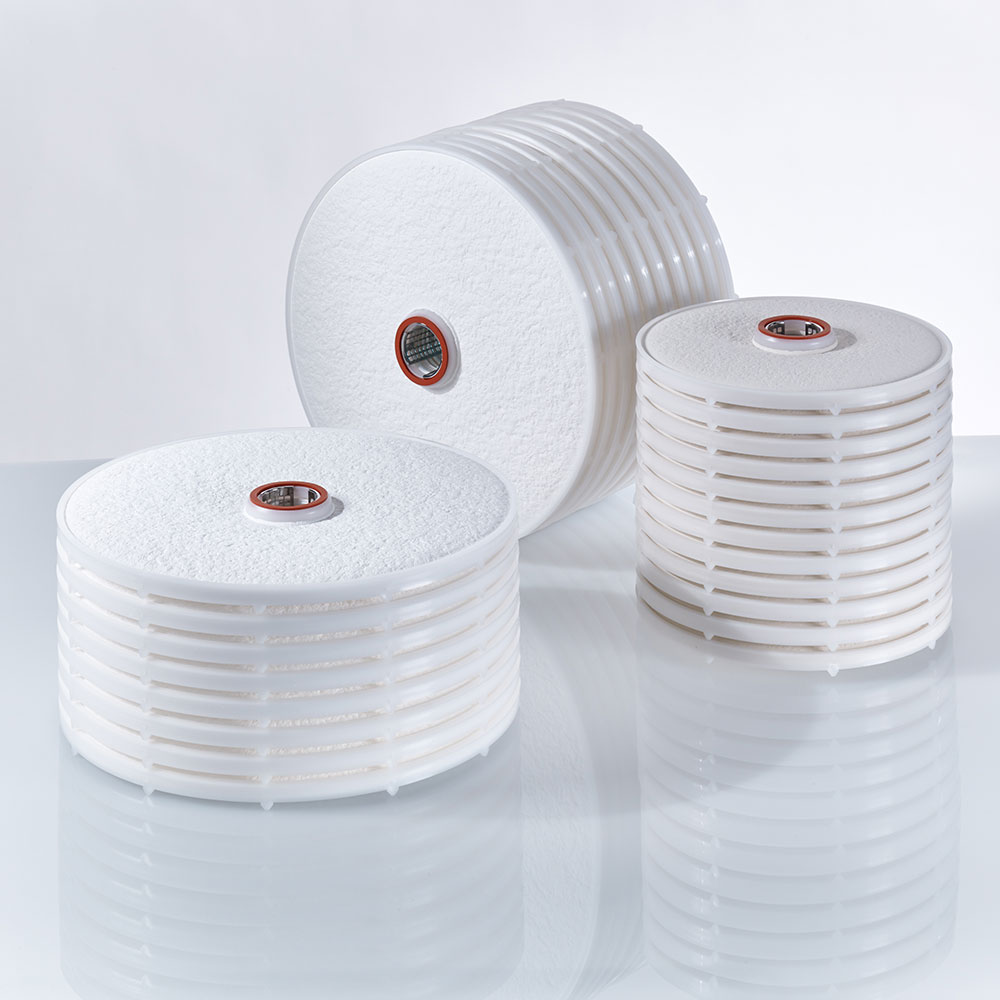

BECODISC BX3

BECODISC BX3

The BECODISC BX3 stacked disc cartridges contain two layers of BECOPAD depth filter sheets made of cellulose, characterized by high purity in one filter unit. The double layer design of the filter cells allows a two-step filtration with fine-tuned retention ratings for pre- and fine filtration. The product range seamlessly covers retention grades between 10 and 0.1 μm, to ensure a comprehensive portfolio for all customer needs.



FILTER MATERIAL

High-purity cellulose







RETENTION

Coarse, clarifying, fine filtration; Microbial reduction and removal




MAX. OPERATING TEMPERATURE

FDA, EC1935/2004





Core features

  • Economical filtration process due to two step- filtration in one unit
  • Maximized performance due to increased dirt holding capacity and particle retention
  • Easy handling and shorter setup times
  • Small footprint and lower investment costs for the stacked disc cartridge housings
  • Double layer configuration and BECOPAD filter media both require less rinsing volume which results in reduced process costs
  • Very good chemical and mechanical resistance
  • Low charge-related adsorption

Segments:

  • Beer
  • Wine
  • Fruit juice
  • Fruit wine
  • Fine chemicals
  • Pharmaceuticals
  Water throughput at
Utilized BECO®- depth filter sheetNominal retention rate μmΔ p = 100 kPa* l/m2/minΔ p = 14.5 psi gpm/ft2Code Pre-filter layerCode Main filter layer
BECOPAD 115 C0.1 – 0.2260.6A11
BECOPAD 1200.1 – 0.3551.3B12
BECOPAD 1700.2 – 0.4801.9C17
BECOPAD 2200.3 – 0.51002.5D22
BECOPAD 2700.5 – 0.71353.3E27
BECOPAD 3500.7 – 1.01603.9F35
BECOPAD 4501.0 – 2.03007.4G45
BECOPAD 5502.0 – 3.057014.0H55
BECOPAD 5808.0 – 10.0357187.6I58

© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

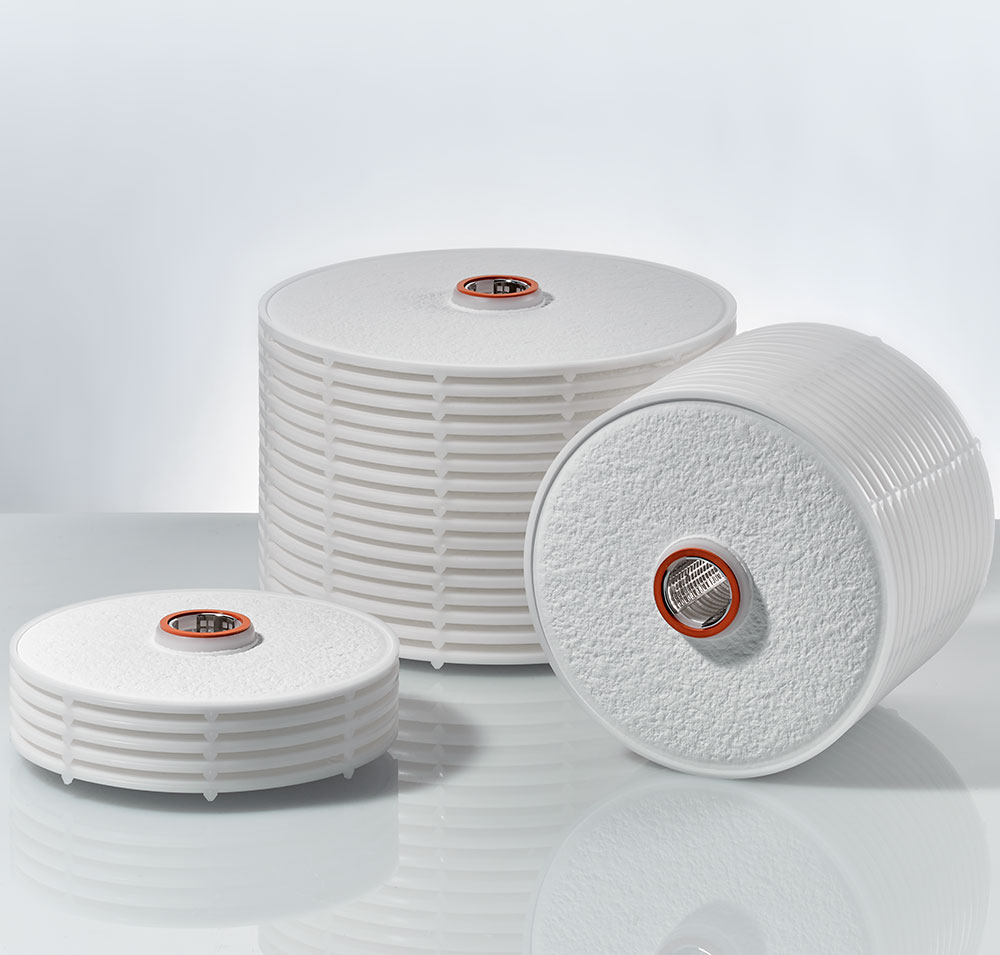

BECODISC R+

BECODISC R+

Backflushable, extra robust BECODISC R+ stacked disc cartridges with BECOPAD premium depth filter sheets are characterized by maximum purity. They can be used for filtration of liquids in food, beverage, cosmetic or fine chemical industries. Application options range from coarse filtration to microbial removal filtration. Users can increase the filter service life considerably by backflushing.



FILTER MATERIAL

High-purity Cellulose







RETENTION

Coarse, clarifying, fine filtration; Microbial reduction and removal




MAX. OPERATING TEMPERATURE

FDA, EC1935/2004





Core features

  • Increased service life due to possibility of backflushing
  • Very high robustness due to the special design
  • Optimized flow distribution upstream and downstream of the filter sheets maximizes filter utilization
  • Combines all advantages of BECOPAD filter material
  • No use of an additional backflush set is required
TypeBECOPAD Depth filter sheetNominal retention rate µmWater throughput
△ p = 14.5 psi gpm/ft2
(△ p = 100 kPa l/m2/min)		Thickness
in (mm)
B1C6115 C0.1 – 0.20.6 (26)0.16 (4.1)
B1761700.2 – 0.41.9 (77)0.15 (3.9)
B2262200.3 – 0.52.5 (100)0.15 (3.9)
B2762700.5 – 0.73.3 (135)0.15 (3.9)
B3563500.7 – 1.03.9 (160)0.15 (3.9)
B4564501.0 – 2.07.4 (300)0.15 (3.9)
B5565502.0 – 3.014.0 (570)0.15 (3.9)
B5865808.0 – 10.087.6 (3571)0.15 (3.9)

© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

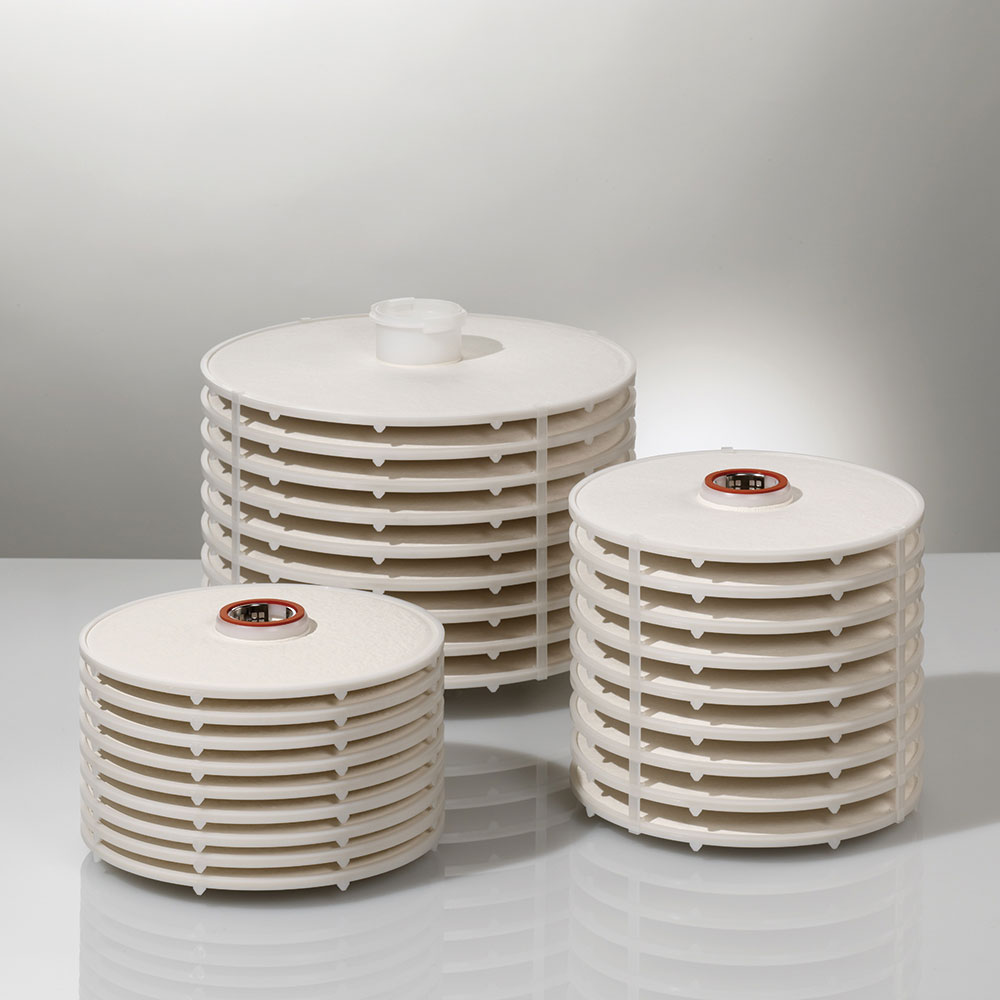

BECODISC P

BECODISC P

Eaton’s BECODISC P stacked disc cartridges with BECOPAD P depth filter sheets are composed of high-purity cellulose. The filter medium is characterized by low extractables, an extremely low endotoxin content (<0.025 EU/ml) after rinsing with 0.61 gal/ft² (25 l/m²) WFI (Water for Injection) and up to 50% reduced rinse volume.

It can be used for a wide range of applications, including clarification of ethanol solutions which have a tendency for ion-related precipitation, catalyst removal, and separation tasks in the production of biopharmaceutical products.

Eaton’s manufacturing method for BECOPAD P depth filters assure consistent product quality and the hightest purity of filter media to meet the manufacturing requirements of pharmaceutical products plus the regulatory need for risk avoidance. These depth filter sheets offer preservation of desired target ingredients in filtrate due to low charge-specific adsorption effects and mechanical separation in pharmaceutical applications.



FILTER MATERIAL

High-purity cellulose







RETENTION

Coarse, clarifying, fine filtration; Microbial reduction and removal




MAX. OPERATING TEMPERATURE

FDA, EC1935/2004; Validation Guide available





Core features

  • Minimum endotoxin contents. This ensures product safety
  • Increased endotoxin retention
  • Without the addition of mineral components, therefore minimum ion content particularly of calcium, magnesium and aluminum ions
  • Very high chemical resistance and mechanical stability
  • Rinsing volume reduced by up to 50%, resulting in reduced process costs
  • A Validation Guide is available upon request

Segments:

  • Beer
  • Wine
  • Fruit juice
  • Fruit wine
  • Fine chemicals
  • Pharmaceuticals
TypeDepth filter sheetNominal retention rate µmWater throughput
△ p = 14.5 psi gpm/ft2
(△ p = 100 kPa l/m2/min)		Thickness
in (mm)
B171BECOPAD P 1700.2 – 0.41.9 (77)0.15 (3.9)
B271BECOPAD P 2700.5 – 0.73.3 (135)0.15 (3.9)
B351BECOPAD P 3500.7 – 1.03.9 (160)0.15 (3.9)
B551BECOPAD P 5502.0 – 3.014.0 (570)0.15 (3.9)
B581BECOPAD P 5808.0 – 10.087.6 (3571)0.15 (3.9)

© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

BECODISC BT

BECODISC BT

BECODISC BT stacked disc cartridges are used for clarifying filtration in the chemical, cosmetic and food industries. The filter sheets remove particles of a coarse, crystalline, amorphous or gel-like structure perfectly. An extremely wide range of filtration tasks can be performed according to given specifications, even with highly viscous liquids.



FILTER MATERIAL

Cellulose with mineral components (B27T / B40T without the addition of mineral components)







RETENTION

Coarse, clarifying and fine filtration




MAX. OPERATING TEMPERATURE

FDA, EC1935/2004





Core features

  • Efficient filtration through high-dirt holding capacity
  • Differentiated fiber and pore structure (internal surface area) for various applications and special process conditions
  • Reliable filtration effect through an ideal combination of the depth filter and the adsorptive potential
  • Maximum purity of raw material for minimum contamination on filtrate
  • Comprehensive quality assurance of all raw materials and additives. Intensive in-process control guarantees

BECODISC BT for Coarse Filtration

B15T, B20T, B25T, B30T

The BECODISC stacked disc cartridges for coarse filtration have filter active components with a mineral basis for clarification of liquids with coarse crystalline and amorphous or gelatinous particle structures. These cartridges are suitable for highly viscous liquids.

Special Stacked Disc Cartridges with Low Ash Content

B27T, B40T

The BECODISC special stacked disc cartridges with low ash content were designed to meet the high filtration demands of the chemical industry. By the implementation and selection of high-purity filter cellulose, the content of washable ions is remarkably low. These stacked disc cartridges are produced with components containing low ions; therefore, the migration of iron or aluminum ions can be reduced to the detection limit.

Applications

  • Polishing filtration of concentrated sugar solutions of approx. 65 °Brix
  • Filtration of edible oils, vegetable extracts, liquid gelatin, oils and separation of bleaching earth
  • Possible applications also include removing of activated carbon
  • Depending upon particle distribution of the activated carbon can even be achieved in a single step filtration process

Applications

  • Filtering sugar
  • Removing activated carbon

Industries:

  • Beer
  • Wine
  • Fruit juice
  • Fruit wine
  • Fine chemicals
  • Pharmaceuticals
TypeDepth filter sheetNominal retention rate µmWater throughput
p = 14.5 psi gpm/ft2
(△ p = 100 kPa l/m2/min)		Thickness
in (mm)
B15TBECO CP07S15.0105.3 (4290)0.14 (3.6)
B20TBECO CP03S20.0175.2 (7140)0.15 (3.7)
B25TBECO CP02S25.0233.6 (9520)0.13 (3.3)
B30TBECO CP01S30.0306.8 (12500)0.18 (4.6)
B27TBECO CP2KS27.0239.5 (9760)0.11 (2.9)
B40TBECO CP1KS40.0555.1 (22620)0.17 (4.3)

© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

BECODISC BS

BECODISC BS

Eaton’s BECODISC BS stacked disc cartridges have superior clarification performance for reliable removal from particles to microorganisms due to optimal pore structure and adsorption. These filter sheets cover filtration grades from 4.0 µm to 0.1 µm nominal rating in applications such as beer, biotechnology, cosmetics, food, fruit juices, wine and more.

FILTER MATERIAL

Cellulose with mineral components







RETENTION

Coarse, clarifying, fine filtration; Microbial reduction and removal




MAX. OPERATING TEMPERATURE

FDA, EC1935/2004





Core features

  • Ideal pore structure for reliable retention of the components to be separated
  • Use of high-quality raw materials for high clarification performance
  • Economic service life through high dirt-holding capacity
  • Comprehensive quality control of all raw and auxiliary materials
  • In-process monitoring ensures consistent quality

Applications

  • Beer
  • Fruit juice
  • Spirits
  • Food
  • Fine and Specialty Chemistry
  • Biotechnology
  • Pharmaceutical
  • Cosmetics
TypeDepth filter sheetNominal retention rate µmWater throughput
p = 14.5 psi gpm/ft2
(△ p = 100 kPa l/m2/min)		Thickness
in (mm)
B01SBECO Steril S 1000.10.7 (30)0.15 (3.9)
B02SBECO Steril S 800.21.1 (46)0.15 (3.9)
B03SBECO Steril 600.31.5 (60)0.15 (3.8)
B04SBECO Steril 400.41.7 (69)0.15 (3.8)
B05SBECO SD 300.52.1 (84)0.15 (3.8)
B06SBECO KDS 150.62.8 (115)0.15 (3.8)
B08SBECO KDS 120.83.8 (155)0.15 (3.8)
B10SBECO KD 101.04.5 (185)0.15 (3.8)
B15SBECO KD 71.55.5 (225)0.15 (3.8)
B20SBECO KD 52.06.6 (270)0.15 (3.8)
B25SBECO KD 32.510.4 (425)0.15 (3.8)
B30SBECO K23.038.0 (1550)0.15 (3.8)
B40SBECO K13.846.6 (1900)0.15 (3.8)

© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

BECODISC BP

BECODISC BP

Eaton’s BECODISC BP stacked disc cartridges meet the exact requirements of the pharmaceutical industry and provide high endotoxin retention on a wide range of pharmaceutical products.

The exceptional pure raw materials and the special production method used to manufacturer the BP stacked disc cartridges result in a low endotoxin content, < 0.125 EU/ml after rinsing with 1.23 gal/ft² (50 l/m²) of WFI (Water for Injection).

FILTER MATERIAL

Cellulose with mineral components







RETENTION

Coarse, clarifying, fine filtration; Microbial reduction and removal




MAX. OPERATING TEMPERATURE

FDA, EC1935/2004; Validation Guide available





Core features

  • Greatest possible endotoxin retention as well as a maximum germ retention rate
  • A special manufacturing process and achieves a low endotoxin content
  • Maximum raw material purity for minimum migration of soluble ions
  • The ideal combination of filtration-active and adsorptive properties ensures maximum reliability
  • Comprehensive quality assurance for all raw and auxiliary materials, and intensive in-process controls ensure consistent quality of the finished products
  • Pyrogen content of <0.125 EU ml-1 in all BECODISC BP stacked disc cartridges is tested based on the LAL test. A certificate is available upon request.

Germ-reducing Filtration

BECODISC B01P, B02P, B04P
BECODISC stacked disc cartridges boast high germ retention rates achieved through the fine-pored structure and an electrokinetic potential with an adsorptive effect. These stacked disc cartridges are characterized by high endotoxin retention rates. Due to their great retention capacity for colloidal components, these filter sheets are particularly suitable as prefilters for subsequent membrane filtration.

Fine Filtration

BECODISC B08P
BECODISC stacked disc cartridges for achieving a high degree of clarification. These stacked disc cartridges reliably retain ultra-fine particles and have a germ reducing effect. They are used in practice as ideal pre-filters for membrane filters, reverse osmosis systems, and to protect chromatography columns.

Clarifying Filtration

BECODISC B20P, B40P
BECODISC stacked disc cartridges with a large-volume pore structure. These stacked disc cartridges have a high dirt holding capacity for particles and are very suitable for clarifying filtration applications.

Applications

  • Pharmaceutical
  • Fine and Specialty Chemistry
  • Biotechnology
     Bursting strength wet  Water throughput at
TypeUtilized BECO depth filter sheetNominal reten-tion rate μmThickness in (mm)Ash content %psi (kPa)
Δ p = 14.5 psi gpm/ft2(Δ p = 100 kPa l/m2/min)Endo-toxin content EU/ml
B01PPR Steril S1000.10.15 (3.9)58> 7.3 (50)0.7(30)< 0.125
B02PPR Steril S800.20.15 (3.9)50> 11.6 (80)1.1(46)< 0.125
B04PPR Steril 400.40.15 (3.9)49> 7.3 (50)1.5(61)< 0.125
B08PPR 120.80.15 (3.9)50> 18.9 (130)4.3(175)< 0.125
B20PPR 52.00.15 (3.9)50> 8.7 (60)8.1(330)< 0.125
B40PPR 14.00.17 (4.3)48> 6.5 (45)58.4(2381)< 0.125

© 2019 NH-TECH.CO.TH All rights reserved.
