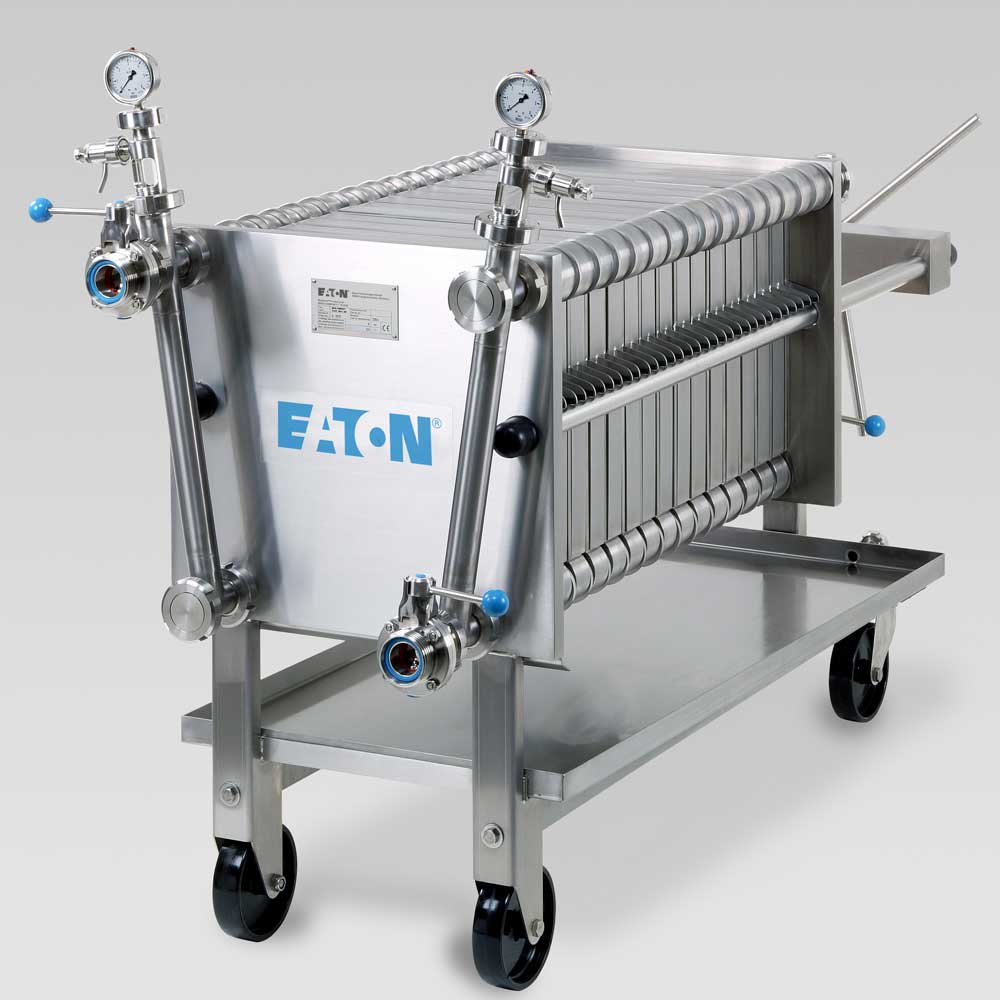

BECO INTEGRA PLATE A400 DC

BECO INTEGRA PLATE A400 DC

Eaton’s depth filtration system for critical filtration tasks in the pharmaceutical, biotech, chemical, cosmetic, and food industries.

Eaton’s BECO INTEGRA PLATE A400 DC system is a multi-sheet filter in enclosed design and the product channels are sealed with depth filter sheets only. For protection, O-rings at the outer edge of the filter package are used to seal the product.

DESIGN

With Circumferential O-Ring Gasket






MATERIAL

Stainless Steel AISI 316L, electrolytically polished




Core features

  • Complete drainage of filter due to unique filter plate design
  • Safe operation no dripping loss due to sealing of filter package by means of O-rings and automatic hydraulic pressure regulation
  • Easy handling and good clean ability thanks to ergonomic design of chassis, and open support grid of filter plates
  • Cake discharge downwards into tray underneath of filter package
  • High flexibility, the filter can be used as a sheet filter or as a precoat filter
  • For precoating/removing of high particle load cake plates in a different width are available

Industries include:

  • Pharmaceuticals
  • Biotech
  • Fine Chemicals
  • Chemicals
  • Cosmetics
  • Food
  • Beverages

Eaton’s BECO INTEGRA PLATE 400 DC system is designed and manufactured according to the cGMP guidelines and the FDA regulations.

Operating pressure:max. 87 psi (600 kPa/6 bar)
Differential pressure:max. 58 psi (400 kPa/4 bar)
Operating temperature:max. 284 °F (140 °C), depending on the filter plates used
Filter area per sheet:1.3 ft² (0.12 m²)
Product contacting parts:Stainless steel AISI 316 L / AISI 316 Ti
Other parts:Stainless steel AISI 304
Gaskets/O-rings:Silicone, EPDM, Viton FEP coated (FDA listed)
Filter inlet:DN 25, DIN 11851/ISO 1″
Filter outlet:DN 25, DIN 11851/ISO 1″

FILTER PLATES/CAKE FRAMES

 WidthCake volume*Weight
 in (mm)gal (l)lb (kg)
Filter plate0.39 (10)–11.0 (5.0)
Feeding plate0.39 (10)–11.0 (5.0)
Cake frame0.39 (10)0.16 (0.60)9.5 (4.3)
Cake frame0.71 (18)0.40 (1.50)17.0 (7.7)
Cake frame0.98 (25)0.63 (2.40)22.5 (10.2)
Cake frame1.57 (40)1.11 (4.20)36.2 (16.4)
TypeFilter areaCake volume*Chassis sizeFilter plates/ cake framesDepth filter sheets 14.7 x 15.9 in (373 x 404 mm)Weight
 ft² (m²)gal (l) qtyqty≈ lb (kg)
400 SF

43.9 (4.08)

77.5 (7.20)

129.2 (12.00)

–

1

2

3

16/17

29/30

49/50

34

60

100

1,312 (595)

1,642 (745)

2,128 (965)

400 ASF with 0.39″ (10 mm) cake frames

43.9 (4.08)

77.5 (7.20)

129.2 (12.00)

2.6 (10)

4.8 (18)

7.9 (30)

1

2

3

16/17

29/30

49/50

34

60

100

1,288 (584)

1,596 (724)

2,050 (930)

400 ASF With 0.71″ (18 mm) cake frames

33.6 (3.12)

59.4 (5.52)

95.6 (8.88)

5.3 (20)

9.3 (35)

14.8 (56)

1

2

3

12/13

22/23

36/37

26

46

74

1,301 (590)

1,627 (738)

2,061 (935)

400 ASF with 0.98″ (25 mm) cake frames

25.8 (2.40)

49.1 (4.56)

80.1 (7.44)

6.3 (24)

12.2 (46)

20.0 (74)

1

2

3

9/10

18/19

30/31

20

38

62

1,272 (577)

1,618 (734)

2,066 (937)

400 ASF with 1.57″ (40 mm) cake frames

18.1 (1.68)

36.2 (3.36)

59.4 (5.52)

7.7 (29)

15.6 (59)

25.6 (97)

1

2

3

6/ 7

13/14

22/23

14

28

46

1,268 (575)

1,642 (745)

2,112 (958)

เขียนวันที่

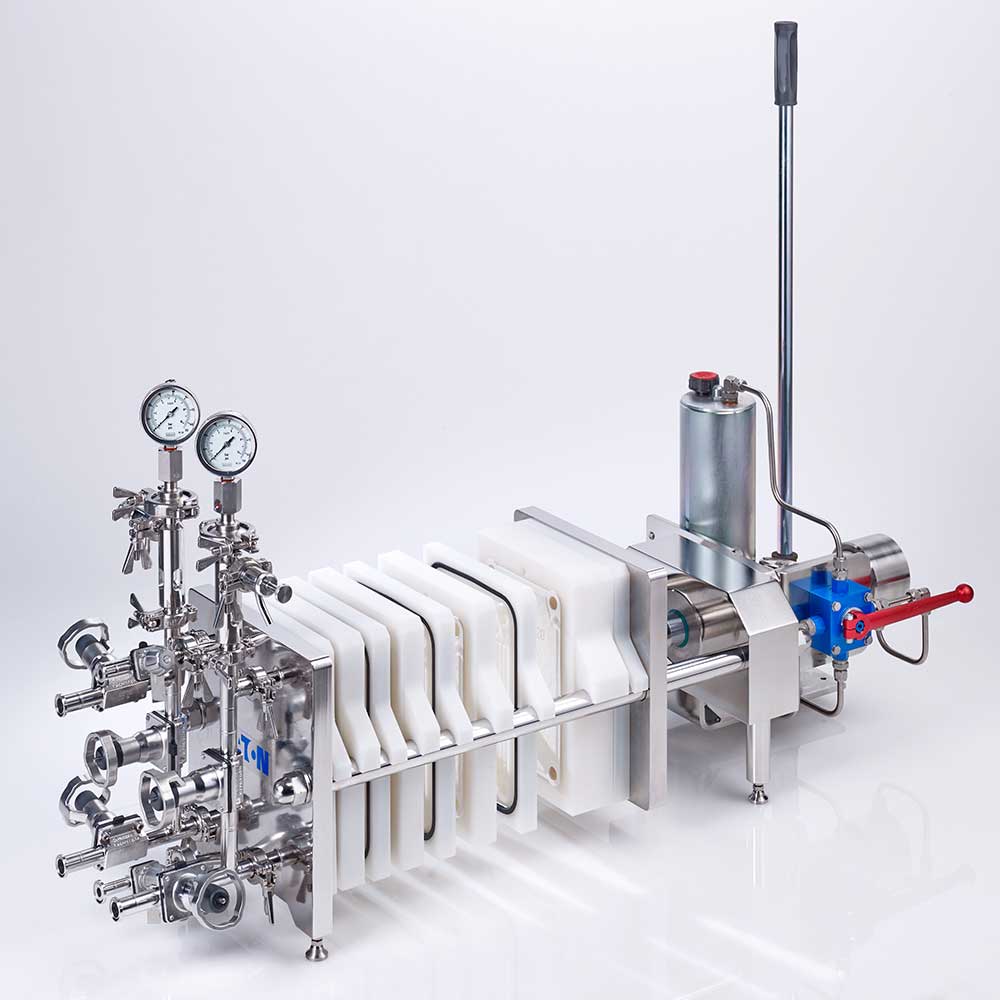

BECO INTEGRA PLATE A200 EP/OEP

BECO INTEGRA PLATE A200 EP/OEP

Eaton’s depth filtration system for critical filtration tasks in the pharmaceutical, biotech, chemical, cosmetic, and food industries.

BECO INTEGRA PLATE A200 EP/OEP is an enclosed multi-sheet filter with external chamber. Depth filter sheets seal the product channels.

The BECO INTEGRA PLATE A200 EP version has gaskets at the external chamber that seal the entire filter package. The BECO INTEGRA PLATE A200 OEP version has a gasket-free filter package.

CLEANING

CIP/SIP






DESIGN

With External Chamber




MATERIAL

PP or PVDF, FDA listed





Core features

  • CIP of filter package without depth filter sheets
  • Complete drainage of filter due to unique filter plate design
  • Safe operation: No drip loss due to sealed external chamber
  • Easy handling and good cleanability thanks to ergonomic design of chassis, and open support grid of filter plates; cake discharge downwards into tray underneath of filter package
  • High flexibility: The filter can be used as a sheet filter or as a pre-coat filter. For pre-coating/removing of high particle load, cake frames in different widths are available

Industries include:

  • Pharmaceuticals
  • Biotech
  • Fine Chemicals
  • Chemicals
  • Cosmetics
  • Food
  • Beverages

Eaton’s BECO INTEGRA PLATE A200 EP/OEP is designed and manufactured according to the cGMP guidelines and the FDA regulations.

Operating pressure/ temperature:

max. 72.5 psi (500 kPa/5 bar) at 104 °F (40 °C)

max. 29 psi (200 kPa/2 bar) at 140 °F (60 °C)

CIPMax. 14.-5 psi (100 kPa/1 bar) at 185 °F (85 °C)
Differential pressure/ temperature:max. 43.5 psi (300 kPa/3 bar) at 104 °F (40 °C)
Filter area per sheet:0.3 ft² (0.028 m²)
Product contacting parts:Polypropylene/ Stainless steel AISI 316L
Other parts:Stainless steel AISI 304
Gaskets/O-rings:Silicone, EPDM (FDA listed), Viton
Filter inlet:TC 3/4″ ISO2852/ASME BPE
Filter outlet:TC 3/4″ ISO2852/ASME BPE
External chamber:TC 1/2″ ISO2852/ASME BPE

FILTER PLATES/CAKE FRAMES

Width in (mm)Cake volume* gal (l)Weight lb (kg)
Initial/ end plate0.91 (23)2.65 (1.2)
Filter plate0.91 (23)2.43 (1.1)
Cake frame0.79 (20)1.32 (0.6)
Cake frame1.18 (30)1.76 (0.8)
Cake frame1.57 (40)2.43 (1.1)
Cake frame2.36 (60)3.75 (1.7)
TypeFilter areaCake volume*ChassisFilter plates/ cake framesDepth filter sheets 6.14 x 9.04 in (156 x 229.5 mm)approx.
 ft² (m²)gal (l) qty.qty.≈ lb (kg)
200 SF with 0.91″ (23 mm) feeding elements7.84 (0.728)–112/1326330 (150)
200 ASF with 0.79″ (20 mm) cake frames9.04 (0.840)1.66 (6.3)114/1530322 (146)
200 ASF with 1.18″ (30 mm) cake frames7.23 (0.672)2.22 (8.4)111/1224318 (144)
200 ASF with 1.57″ (40 mm) cake frames6.03 (0.560)2.59 (9.8)19/1020313 (142)
200 ASF with 2.36″ (60 mm) cake frames 4.82 (0.448)3.25 (12.3)17/ 816313 (142)

© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

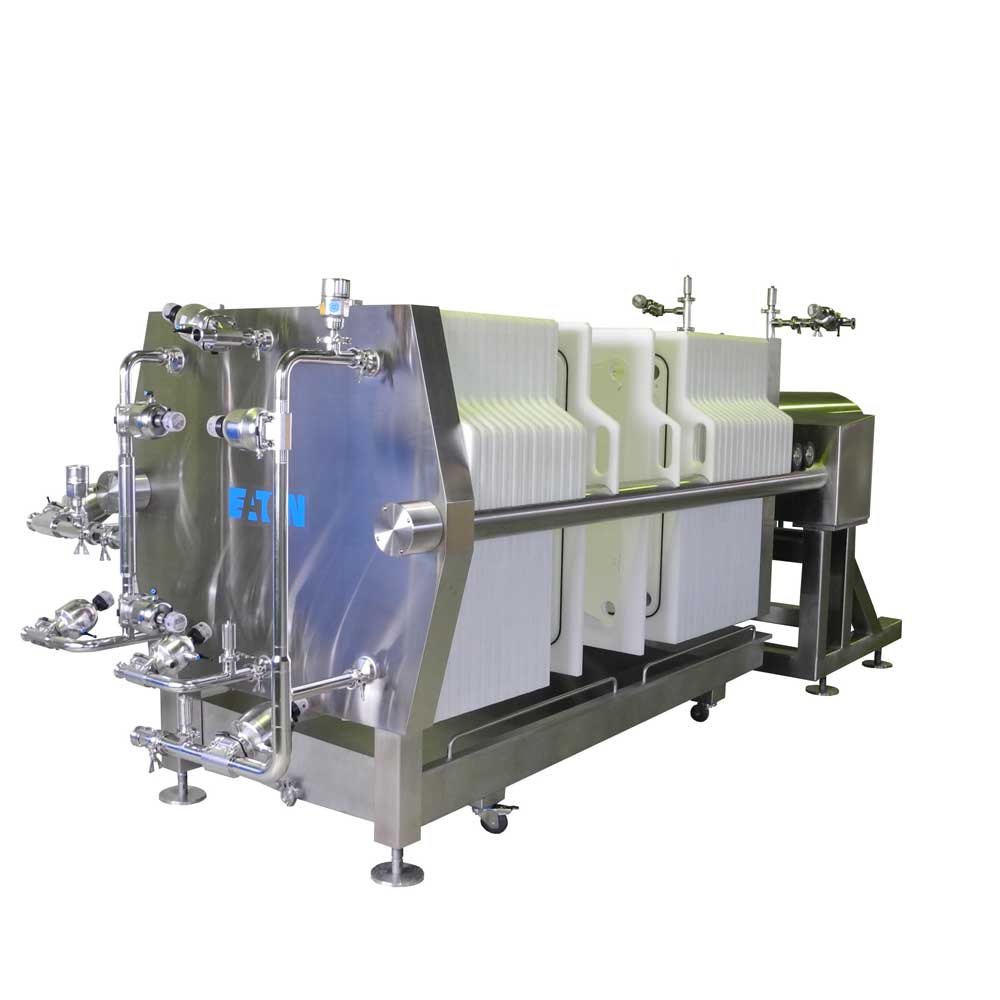

BECO INTEGRA PLATE A1000 EP/OEP

BECO INTEGRA PLATE A1000 EP/OEP

BECO INTEGRA PLATE A1000 EP/OEP enclosed plate and frame filter is the depth filtration system for critical filtration tasks in the pharmaceutical and biotech, chemical, cosmetics, and food industries.

BECO INTEGRA PLATE A1000 EP/OEP is a multi-sheet filter with external chamber. Depth filter sheets seal the product channels.

The BECO INTEGRA PLATE A1000 EP version has gaskets at the external chamber that seal the entire filter package. The BECO INTEGRA PLATE A1000 OEP version has a gasket-free filter package.

CLEANING

CIP







DESIGN

With External Chamber




MATERIAL

PP and PVDF, FDA Listed





Core features

  • CIP of filter package – without depth filter sheets
  • Complete drainage of filter due to unique filter plate design
  • Safe operation no dripping loss due to sealed external chamber and automatic hydraulic pressure regulation
  • Easy handling and good clean ability thanks to ergonomic design of chassis, and open support grid of filter plates
  • Cake discharge downwards into tray underneath of filter package
  • High flexibility, the filter can be used as a sheet filter or as a precoat filter
  • For precoating/removing of high particle load cake plates in a different width are available

Industries include:

  • Pharmaceuticals
  • Biotech
  • Fine Chemicals
  • Chemicals
  • Cosmetics
  • Food
  • Beverages

BECO INTEGRA PLATE A1000 EP/OEP filter is designed and manufactured according to the cGMP guidelines and the FDA regulations

Operating pressure/ temperature:max. 72 psi (500 kPa/5 bar) at 104 °F (40 °C)
max. 29 psi (200 kPa/2 bar) at 140 °F (60 °C)
Differential pressure/ temperature:max. 300 kPa (3 bar) bei 40 °C
Filter area per sheet:8.07 ft² (0.75 m²)
Product contacting parts:Polypropylene/Stainless Steel AISI 316L
Sonstige Teile:Stainless Steel AISI 304
Dichtungen/ O-Ringe:Silicone, EPDM (FDA listed), Viton
Filter inlet:TC 2,5″ ISO2852/ASME BSP
Filter outlet:TC 2,5″ ISO2852/ASME BSP
External chamber:TC 2,5″ ISO2852/ASME BSP
TypeFilter area
ft² (m²)		Cake
volume*
gal (l)		Chassis sizeFilter plates/
cake frames
qty		Depth filter sheets 680 x 779 mm
qty		Weight for Standard Type
≈ lb (kg)
1000 SF plate and frame filter
with 0.79″ (20 mm) cake frames		500.52 (46.50)
791.15 (73.50)
1,081.77 (100.50)
1,372.40 (127.50)		91.93 (348)
145.56 (551)
198.92 (753)
252.55 (956)		1
2
3
4		30/31
48/49
66/67
84/85		62
98
134
170		14,548 (6,599)
16,448 (7,461)
18,571 (8,424)
20,472 (9,286)
1000 ASF frame filter
with 1.18″ (30 mm) cake frames		419.80 (39.00)
661.98 (61.50)
920.31 (85.50)
1,162.50 (108.00)		128.65 (487)
202.88 (768)
282.14 (1,068)
356.63 (1,350)		1
2
3
4		25/26
40/41
56/57
71/72		52
82
114
144		14,422 (6,542)
16,241 (7,367)
18,375 (8,335)
20,194 (9,160)
1000 ASF frame filter
with 1.57″ (40 mm) cake frames		371.35 (34.50)
581.25 (54.00)
791.15 (73.50)
1,001.04 (93.00)		159.30 (603)
249.64 (945)
339.73 (1,286)
429.81 (1,627)		1
2
3
4		22/23
35/36
48/49
61/62		46
72
98
124		14,391 (6,528)
16.164 (7,332)
18,157 (8,236)
19,929 (9,040)
 Width
in (mm)		Cake volume
gal (l)		Weight lb
(kg)
Initial/End plate1.10 (28)–67.9 (30.8)
Filter plate1.10 (28)–61.3 (27.8)
Cake frame0.79 (20)2.97(11.25)22.3 (10.1)
Cake frame1.18 (30)4.95(18.75)33.5 (15,2)
Cake frame1.57 (40)6,93 (26.25)44.5 20.2

© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

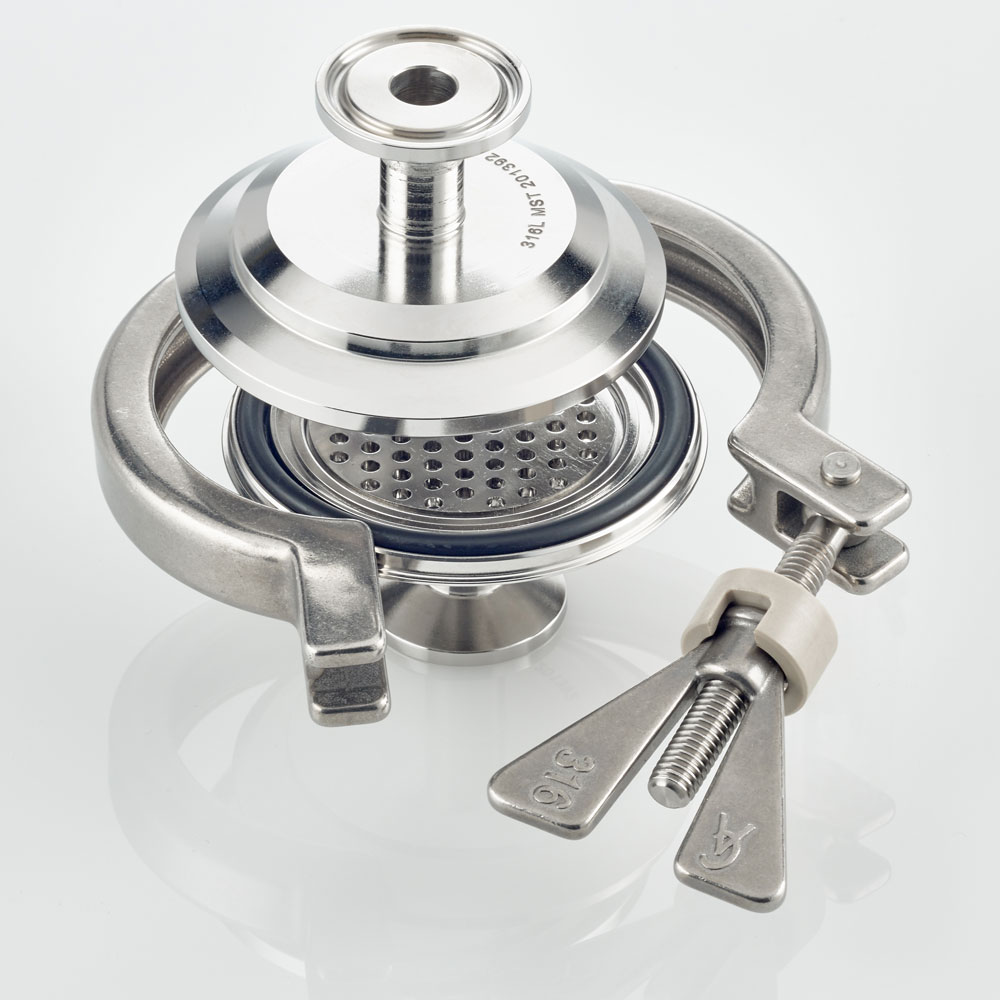

BECO INTEGRA LAB 60 P

BECO INTEGRA LAB 60 P

BECO INTEGRA LAB 60 P is an enclosed single-sheet depth filtration system with a wide range of accessories for small volume filtration tasks in laboratories and research centers. The areas of application include small batches and upscaling in biotechnology and pharmaceutical, chemical, and cosmetics industries.

MATERIAL

Stainless steel AISI 316L /316 Ti







FILTER AREA

3.25 in² (21 cm²)




USE

Small Volume Filtration, Scale-up





Core features

  • Simple and clearly arranged design with many connection, valve, and pressure measurement options
  • A wrap-around gasket ensures a high level of safety by preventing leakage to the surrounding atmosphere
  • Ergonomic design for easy handling
  • Effortless replacement of filter sheets, thorough and easy cleaning
  • Variable application possibilities by using the base filter and sludge chambers of various size (with and without heating) for sheet and cake filtration
  • System components enable parallel or step filtration processes using one arrangement of several filters

Industries include:

  • Biotech
  • Fine chemicals
  • Pharmaceuticals
  • Cosmetics
  • Chemical
Max. permissible operating pressure:87 psi (600 kPa/6 bar)
Max. permissible differential pressure:58 psi (400 kPa/4 bar)
Max. permissible operating temperature:284 °F (140 °C)
Depth filter size:Ø 2.36″, 0.08..0.16″ thick (Ø 60 mm, 2…4 mm)
Filter area:3.25 in² (21 cm²)
Weight:2.20 lbs (1 kg)
Product contacting parts:Stainless steel AISI 316L / Stainless steel AISI 316Ti
Others:Stainless steel AISI 304
Gaskets, O-rings:EPDM, Silicone, Viton, FEP coated
Filter inlet:DN 8 ‚Tri-Clamp, ISO 1127
Filter outlet:DN 8 ‚Tri-Clamp, ISO 1127

© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

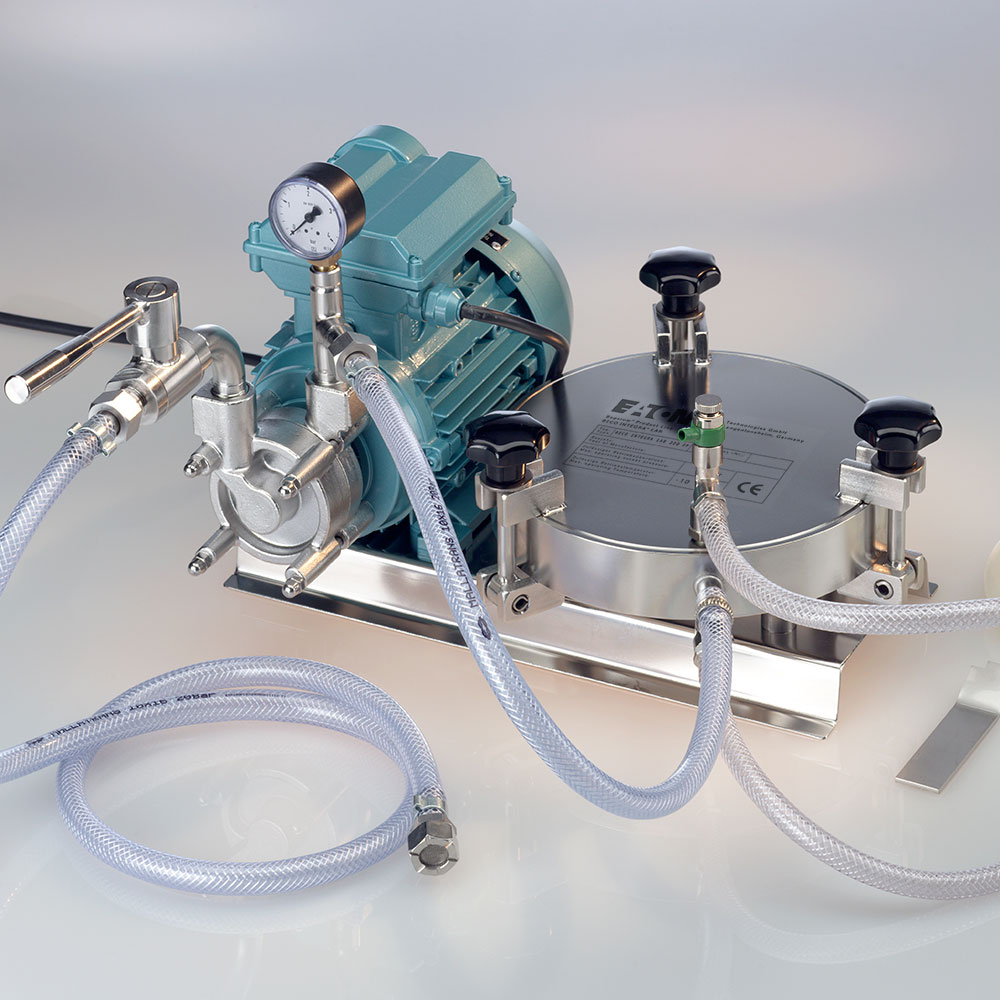

BECO INTEGRA LAB 220 SP

BECO INTEGRA LAB 220 SP

Eaton offers the BECO INTEGRA LAB 220 SP sheet filtration system for single and two stage filtration.

Consisting of a feed pump and filter, Eaton’s BECO INTEGRA LAB 220 SP system was specially developed for processing small volumes in the laboratory, small production batches, and upscaling in the food, chemical and cosmetics industries.

MATERIAL

Stainless Steel AISI 304

FILTER AREA







FILTER AREA

0.33 ft² (310 cm²)/Depth Filter Sheet




USE

Small Volume Filtration, Scale-up





Core features

  • Enclosed filter system
  • Single and two stage filtration
  • Portable unit with centrifugal pump
Max. permissible operating pressure:58 psi (400 kPa/4 bar)
Max. permissible differential pressure:43.5 psi (300 kPa/3 bar)
Max. permissible operating temperature:176 °F (80 °C)
Filter sheet format:8.74″ (222 mm) round
Filter area:0.33 ft² (310 cm2)/ depth filter shee
Weight:46.30 lbs(21 kg)
Number of filter sheets
Single stage filtration:
Two stage filtrations:		2 sheets Two stage filtrations:
1 x 2 or 2 x 2 sheets
Cake frame width:0.39″ (10 mm)
Max. cake volume:0.08 gal (0.3 l)
Product contacting parts/Others:Stainless Steel AISI 304
Gaskets:EPDM
Parts contacting liquid/product:Stainless steel
Sealing of housing:EPDM
Rotation speed:2,800 rpm
Suction height:Max. 59″ (1.5 m) SL
Frequency:50 Hz
Voltage:220/230 Volt
Power:0.37 kW
Protection class:IP 44


© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

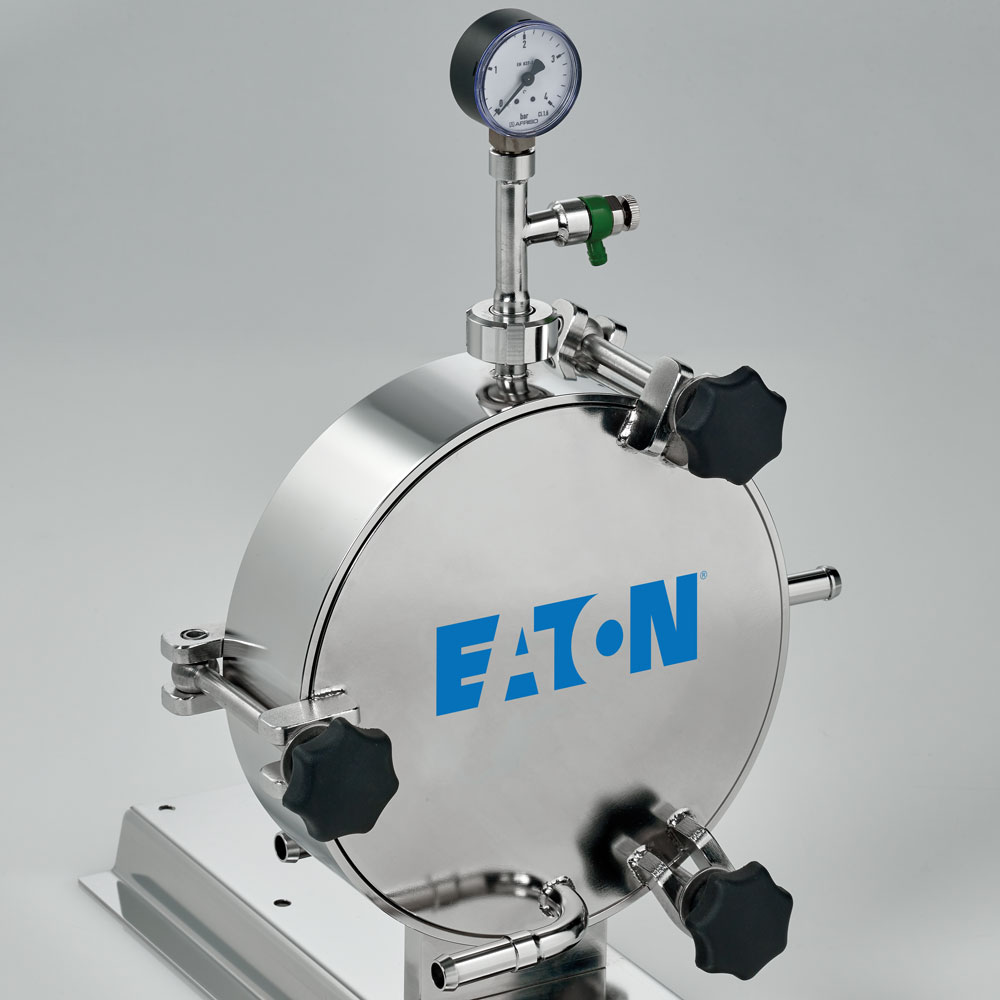

BECO INTEGRA LAB 220 S

BECO INTEGRA LAB 220 S

Eaton’s BECO INTEGRA LAB 220 S filter was developed especially for processing small quantities in laboratories and in technical colleges as well as for the production of small batches and for up-scaling in the beverage, food, bioengineering, pharmaceuticals, chemical and cosmetic industries.

The special design of Eaton’s BECO INTEGRA LAB 220 S filter makes it possible to directly transfer the results of laboratory and technical college testing to process equipment such as the BECO INTEGRA PLATE. The filter is comprised primarily of two round, vertical filter elements located on both the left and right sides of the filter frame.

MATERIAL

Stainless steel AISI 316L/316Ti







FILTER AREA

0.33 ft² (310 cm²)/Depth Filter Sheet




USE

Small Volume Filtration, Scale-up





Core features

Eaton’s BECO INTEGRA LAB 220 S filter system works on the principle of filtration with depth filtration sheets. Depending upon the application, undesirable suspended solids, sediments or microorganisms are removed from the liquid/suspension via filtration. For this purpose the liquid is fed into a cake frame. The pressure difference between the in-and outflow causes the liquid to flow through the depth filter sheet. As a result, depending upon application, it emerges either clarified or sterilized. The filtrate then flows out through the outflow, collects in the drainage grooves and is conducted to the filtrate outlet.

An O-ring located behind the sheet frame reliably prevents any emissions from the product being filtered from reaching the surrounding environment, even in difficult filtration applications. Using two different depth filter sheets allows, e.g. coarse and fine filtration, diatomaceous earth and fine filtration or pre- and sterile filtration in one filtration step.

Max. permissible operating pressure:58 psi (400 kPa/4 bar)
Max. permissible differential pressure:43.5 psi (300 kPa/3 bar)
Max. permissible operating temperature:284 °F (140 °C)
Depth filter sheet size:Ø 8.74″ (222 mm)
Filter surface:0.33 ft² (310 cm2)/ depth filter sheet
Weight:30,86 lbs (14 kg)
Number of depth filter sheets
Single stage filtration:
Two stage filtrations:		1 or 2 sheets
1 x 2 or 2 x 2 sheets
Cake frame width:1.58″ (40 mm)
Max. cake volume:0.33 gal (1.25 l)
Product contacting parts:Stainless steel AISI 316L/AISI 316Ti
Others:Stainless steel AISI 304
Gaskets, O-rings:EPDM, Silicone, Viton, FEP coated
Inlet/outlet:Hose nozzle for hose inside Ø 0.51″ (13 mm)
Ventilation:Air relief cock and
manometer
0 – 87 psi
(0 – 600 kPa/0 – 6 bar)

© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

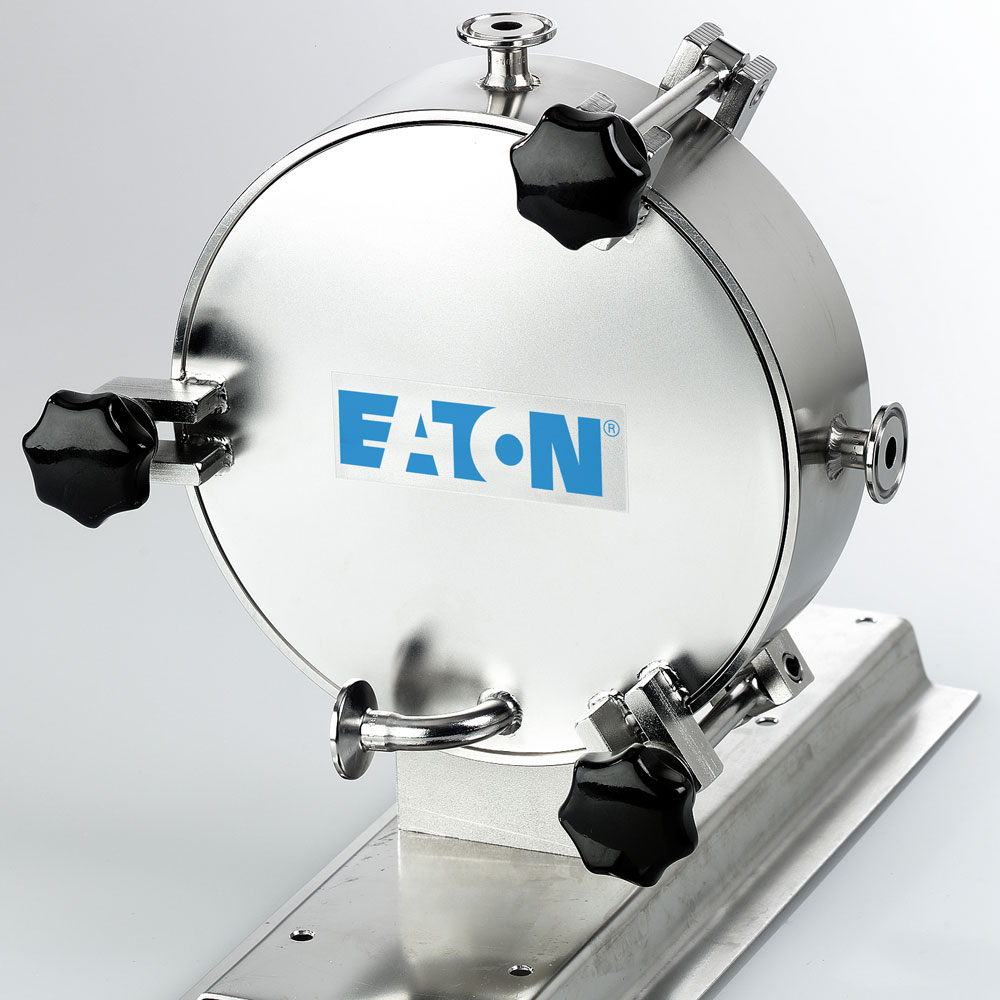

BECO INTEGRA LAB 220 P

BECO INTEGRA LAB 220 P

Eaton’s depth filtration system for small volume filtration tasks in laboratories, research centers and applications include small batches and up-scaling in biotechnology, pharmaceutical, chemical, and cosmetic industries.

Eaton’s BECO INTEGRA LAB 220 P depth filtration system in sanitary design is primarily comprised of two round, vertical filter elements located on the left and right in the filter chamber. The special design makes it possible to transfer the test results directly from the laboratory or research center to production scale equipment.

MATERIAL

Stainless steel AISI 316L/316 Ti







FILTER AREA

0.33 ft² (310 cm²)/Depth Filter Sheet




USE

Small Volume Filtration, Scale-up





Core features

  • Simple and clearly arranged design with many connection, valve, and pressure measurement options
  • A wrap-around gasket ensures a high level of safety by preventing leakage to the surrounding atmosphere
  • Ergonomic design for easy handling, effortless replacement of filter sheets, thorough and easy cleaning, and no dead spaces
  • Variable application capabilities. By installing two different BECO depth filter sheets each, coarse and fine filtration, powder and fine filtration, or pre-filtration and sterilizing filtration can be carried out in one filtration step

Industries include:

  • Beer
  • Wine
  • Fruit juice
  • Fruit wine
  • Fine chemicals
  • Pharmaceuticals
Max. permissible operating pressure:58 psi (400 kPa/4 bar)
Max. permissible differential pressure:43.5 psi (300 kPa/3 bar)
Max. permissible operating temperature:284 °F (140 °C)
Depth filter sheet size:8.74″ (222 mm)
Filter surface:0.33 ft² (310 cm2)/ depth filter sheet
Weight:30,86 lbs (14 kg)
Number of depth filter sheets
Single stage filtration:
Two stage filtrations:		1 or 2 sheets
1 x 2 or 2 x 2 sheets
Cake frame width:1.58″ (40 mm)
Max. cake volume:0.33 gal (1.25 l)
Product contacting parts:Stainless steel AISI 316L / AISI 316 Ti
Others:Stainless steel AISI 304
Gaskets, O-rings:EPDM, Silicone, Viton, FEP coated
Filter inlet:DN 8 ‚Tri-Clamp, ISO 2852
Filter outlet:DN 8 ‚Tri-Clamp, ISO 2852

© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

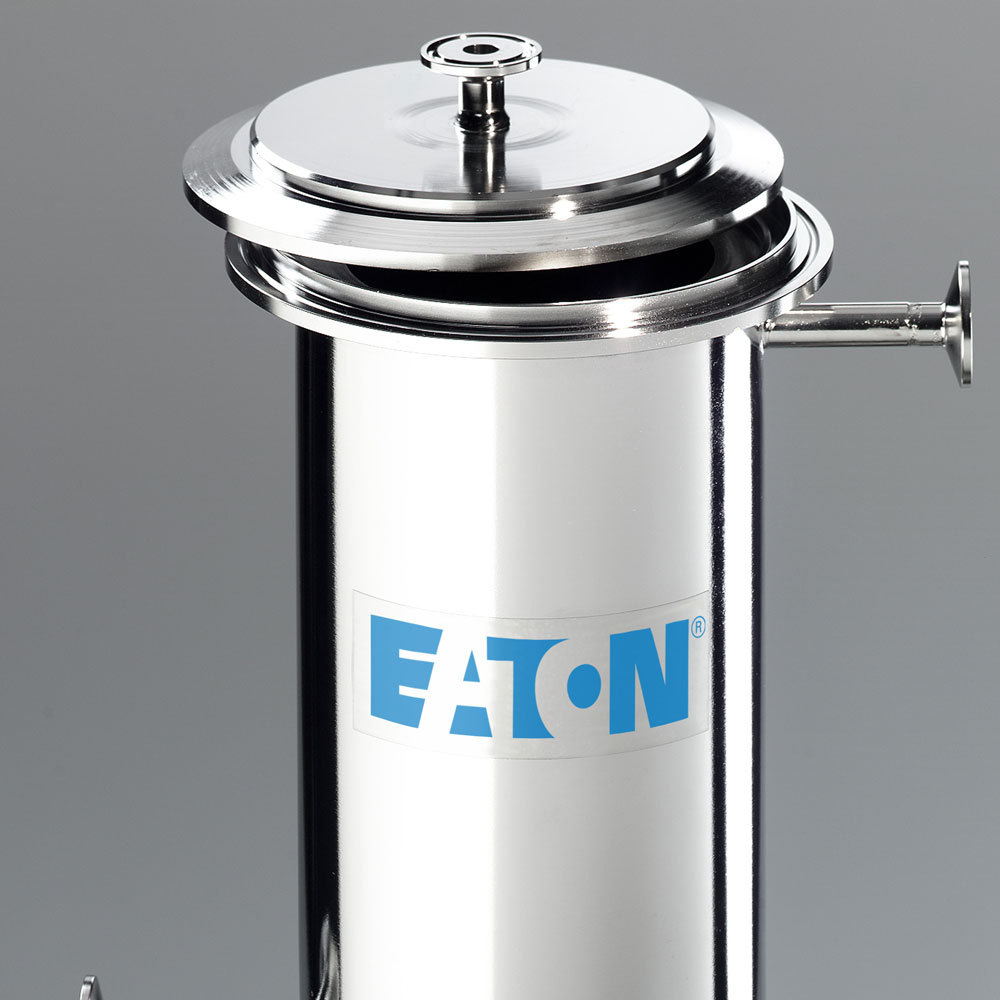

BECO INTEGRA LAB 140 P

BECO INTEGRA LAB 140 P

Eaton’s depth filtration system for small volume filtration tasks in laboratories and research centers.

Eaton’s BECO INTEGRA LAB 140 P depth filtration system in sanitary design is an enclosed single sheet system with a wide range of accessories for applications including small batches and upscaling in biotechnology and pharmaceutical, chemical, and cosmetic industries.

MATERIAL

Stainless Steel AISI 316L/316Ti







FILTER AREA

20.15 in² (130 cm²)




USE

Small Volume Filtration, Scale-up





Core features

  • Simple and clearly arranged design with many connection, valve, and pressure measurement options
  • A wrap-around gasket ensures a high level of safety by preventing leakage to the surrounding atmosphere
  • Ergonomic design for easy handling, effortless replacement, thorough and easy cleaning and no dead spaces
  • Variable application possibilities by using the base filter and sludge chambers of various size (with and without heating) for sheet and cake filtration
  • System components enable parallel or step filtration processes using one arrangement of several filters

Industries include:

  • Beer
  • Wine
  • Fruit juice
  • Fruit wine
  • Fine chemicals
  • Pharmaceuticals
Max. permissible operating pressure:87 psi (600 kPa/6 bar)
Max. permissible differential pressure:58 psi (400 kPa/4 bar)
Max. permissible operating temperature:284 °F (140 °C)
Depth filter sheet size:Ø 5.9″, 0.08..0.16″ thick (Ø 140 mm, 2…4 mm)
Filter surface:20.15 in² (130 cm²)
Weight:13.89 lbs (6.3 kg)
Product contacting parts:Stainless steel AISI 316L / AISI 316Ti
Others:Stainless steel AISI 304
Gaskets, O-rings:EPDM, Silicone, Viton, FEP coated
Filter inlet:DN 8 ‚Tri-Clamp, ISO 2852
Filter outlet:DN 8 ‚Tri-Clamp, ISO 2852

© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

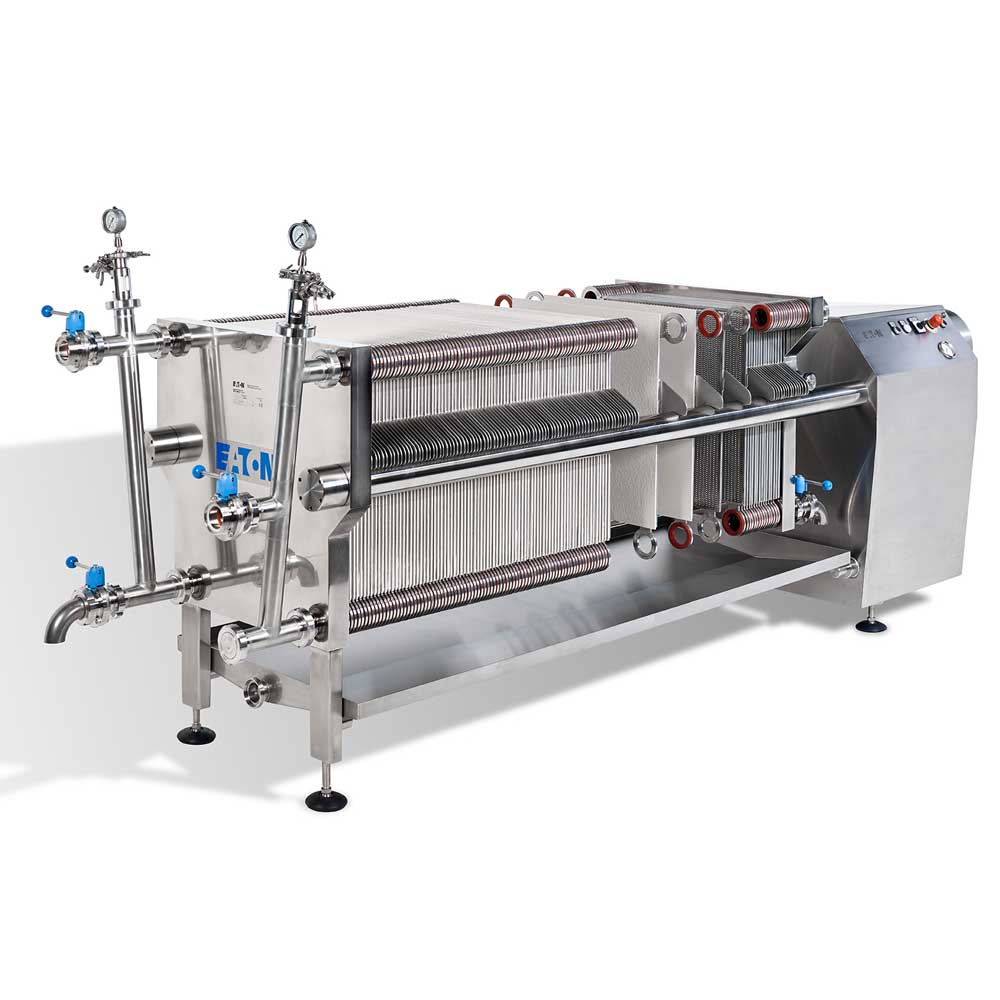

BECO COMPACT PLATE A600

BECO COMPACT PLATE A600

BECO COMPACT PLATE A600 filter is a particularly high-class multi sheet filter with various equipment options.

BECO COMPACT PLATE A600 depth filtration system is used for liquids with large variability. The system utilizes different filter elements and a wide range of different depth filter sheets for applications in the biotechnology, chemical, cosmetics, and food industries.

MATERIAL

Stainless Steel, AISI 316L







MAX. FILTER AREA

745.94 ft² (69.30 m²)




USE

Particle, Sterile, Pre-Coating Filtration





Core features

  • High flexibility through the simple adaptation of the filter area from 7.10 to 745.93 ft² (0.66 to 69.3 m²) to the respective application
  • Variable application options through the use of filtrate plates, unfiltrate plates and cake frames
  • The filter can be used as sheet filter, precoating filter or as a combination of both
  • Easy handling and good cleanability thanks to ergonomic design, smooth surfaces, and open support grid of filter plates
  • Low dripping loss due to the compact design of the filter and a larger spindle
  • Alternatively available with manual hydraulic or electro-hydraulic control
  • Wide range of accessories such as fittings and riser pipes complement the system to a unit ready for connection

Industries include:

  • Beer
  • Wine
  • Fruit juice
  • Fruit wine
  • Fine chemicals
  • Pharmaceuticals

Other designs and further components for expansion to complete systems are available depending on requirements

Operating pressure:max. 87 psi (600 kPa/6bar)
Differential pressure:max. 58 psi (400 kPa/4 bar)
Operating temperature:max. 249,8 °F (121 °C), depending on the filter plates used
Filter area per sheet:3.55 ft² (0.33 m²)
Filter plates:Stainless steel AISI 316L
Noval
Filter frames:Stainless steel AISI 316L
Chassis:Stainless steel AISI 304 or AISI 316L
Gaskets:Silicone
Inlet: Chassis size 1 + 2 + 3: Chassis size 3 + 4:DN 50, DIN 11851
DN 65, DIN 11851
Outlet: Chassis size 1 + 2 + 3: Chassis size 3 + 4:DN 50, DIN 11851
DN 65, DIN 11851
DesignMax Filter area
ft² (m²)		Solids space*
gal (l)		Chassis sizeFilter/ feeding elements or cake framesDepth filter sheets 23.62 x 24.21 in (600 x 615 mm)
qty		Weight
≈ lb (kg)
A600 SF
with stainless steel elements 0.35” (9 mm)		277.10 (25.74)
447.30 (41.58)
582.54 (54.12)
745.94 (69,30)		–1
2
3
4		38/39
62/63
81/82
104/105		78
126
164
210		3,913 (1,775)
4,475 (2,030)
5,225 (2,370)
5,930 (2,690)
A600 SF
with NOVAL filter plates
14.5 mm		198.92 (18.48)
305.48 (28.38)
430.13 (39.96)
511.50 (47.52)		–1
2
3
4		27/28
42/43
55/56
71/72		56
86
112
144		3,329 (1.510)
1,675 (3,693)
1,830 (4,034)
2,005 (4,420)
A600 ASF
with cake frames 0.35” (9 mm)		277.10 (25.74)
447.30 (41.58)
582.54 (54.12)
745.94 (69.30)		13.4 (50.7)
21.6 (81.9)
28.2 (106.6)
36.1 (136.5)		1
2
3
4		38/39
62/63
81/82
104/105		78
126
164
210		3,693 (1,675)
4,233 (1,920)
4,740 (2,150)
5,324 (2,415)
A600 ASF
with cake frames 0.98″ (25 mm)		170.50 (15.84)
277.10 (25.74)
362.31 (33.66)
461.77 (42.90)		41.7 (158)
67.9 (257)
88.8 (336)
113.3 (429)		1
2
3
4		23/24
38/39
50/51
64/65		48
78
102
130		3,704 (1,680)
4,321 (1,960)
4,839 (2,195)
5,445 (2,470)
A600 ASF
with cake frames 1.57″ (40 mm)		127.88 (11,88)
198.92 (18.48)
262.85 (24.42)
341.00 (31.68)		54.9 (208)
85.3 (323)
112.8 (427)
146.4 (554)		1
2
3
4		17/18
27/28
36/37
47/48		36
56
74
96		3,682 (1,670)
4,222 (1,915)
4,729 (2,145)
5,335 (2,420)
 Width
in (mm)		Cake volume
gal (l)		Weight lb
(kg)
Filter plate0.35 in (9 mm)–14.33 lb (6.5 kg)
Filter plate0.57 in (14.5 mm)–6.92 lb
(3.1 kg)
Feeding plate0.35 in (9 mm)–14.33 lb (6.5 kg)
Cake frame0.35 in (9 mm)0.34 gal (1.30 l)6.17 lb (2.8 kg)
Cake frame0.98 in (25 mm)1.74 gal (6.60 l)18.74 lb (8.5 kg)
Cake frame1.57 in (40 mm)3.05 gal (11.55 l)27.56 lb (12.5 kg)

© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

BECO COMPACT PLATE A400

BECO COMPACT PLATE A400

Eaton’s BECO-COMPACT PLATE A400 SF/ASF classic sheet filters are tailored to meet specific filtration requirements and their material quality and design guarantee ideal cleaning properties. Thanks to an optimum flow system, the reliable and economic use of Eaton’s Depth Filter Sheets and  Filter Aids is ensured. Eaton’s Sheet Filters can be used as precoat filters by replacing inlet filter elements with diatomite frames in order to suit a very wide range of different filtration applications.

Eaton’s depth filtration system for liquids with large variability using different filter elements and a wide range of different Eaton depth filter sheets for applications within the foodstuff industry, biotechnology and chemical/cosmetics industry. Eaton’s BECO COMPACT PLATE A400 filter is a particularly high-class multi sheet filter with premium equipment.

MATERIAL

Stainless Steel, AISI 316L







MAX. FILTER AREA

192.89 ft² (17.92 m²)




USE

Particle, Sterile, Pre-Coating Filtration





Core features

  • High flexibility through the simple adaptation of the filter area (from 0.28 to 17.92 m²) to the respective application
  • Variable application options through the use of filtrate plates, unfiltrate plates and cake frames. The filter can be used as sheet filter, precoating filter or as a combination of both
  • Easy handling and good cleanability thanks to ergonomic design, smooth surfaces and open support grid of filter plates
  • Low dripping loss due to the compact design of the filter and a larger spindle. Alternatively available with manual hydraulic or electro-hydraulic control
  • Wide range of accessories such as fittings and riser pipes complement the system to a unit ready for connection

Industries include:

  • Beer
  • Wine
  • Fruit juice
  • Fruit wine
  • Fine chemicals
  • Pharmaceuticals
Operating pressure:max. 87 psi (600 kPa/6bar)
Differential pressure:max. 58 psi (400 kPa/4 bar)
Operating temperature:max. 249,8 °F (121 °C)
Filter area per sheet:1.51 ft² (0.14 m²)
Filter plates:Stainless steel AISI 316L
Noval
Filter frames:Stainless steel AISI 304 / AISI 316L
Chassis:Stainless steel AISI 304
Gaskets:Silicone
Inlet: Chassis size 1 + 2 + 3: Chassis size 3 + 4:DN 40, DIN 11851
DN 40/50, DIN 11851
Outlet: Chassis size 1 + 2 + 3: Chassis size 3 + 4:DN 40, DIN 11851
DN 40/50, DIN 11851
DesignMax Filter area
ft² (m²)		Solids space*
gal (l)		Chassis sizeFilter/ feeding elements or cake framesDepth filter sheets 15.8 x 15.8 in (400 x 400 mm)
qty		Weight
≈ lb (kg)
A400 SF
with stainless steel elements 0.35” (9 mm)		69.32 (6.44)
132.61 (12.32)
192.89 (17.92)		–1
2
3		22/23
43/44
63/64		46
88
128		815.71 (370)
1,091.29 (495)
1,358.05 (616)
A400 SF
with Noval filter plates 14 mm		48.22 (4.48)
93.43 (8.68)
138.64 (12.88)		–1
2
3		16/15
31/30
46/45		32
62
92		661.39 (300)
798.07 (362)
939.17 (426)
A400 ASF
with cake frames 0.98″ (25 mm)		42.19 (3.92)
78.36 (7.28)
114.53 (10.64)		10.30 (39)
19.28 (73)
28.00 (106)		1
2
3		13/14
25/26
37/38		28
52
76		784.85 (356)
974.44 (442)
1,186.10 (538)
A400 ASF
with cake frames 1.57″ (40 mm)		30.14 (2.80)
57.26 (5.32)
84.39 (7.84)		12.94 (49)
24.57 (93)
36.19 (137)		1
2
3		9/10
18/19
27/28		20
38
56		756.19 (343)
967.83 (439)
1,181.68 (536)
 Width
in (mm)		Cake volume
gal (l)		Weight lb
(kg)
Filter plate0.35 in (9 mm)–5.5 lb (2.5 kg)
Feeding plate0.35 in (9 mm)–5.5 lb (2.5 kg)
Filter plate0.55 in (14 mm)–3.1 lb (1.4 kg)
Cake frame0.35 in (9 mm)0.11 gal (0.42 l)3.3 lb (1.5 kg)
Cake frame0.98 in (25 mm)0.74 gal (2.80 l)8.4 lb (3.8 kg)
Cake frame1.57 in (40 mm)1.29 gal (4.90 l)13.2 lb (6.0 kg)

© 2019 NH-TECH.CO.TH All rights reserved.
