BECO CPS

BECO CPS

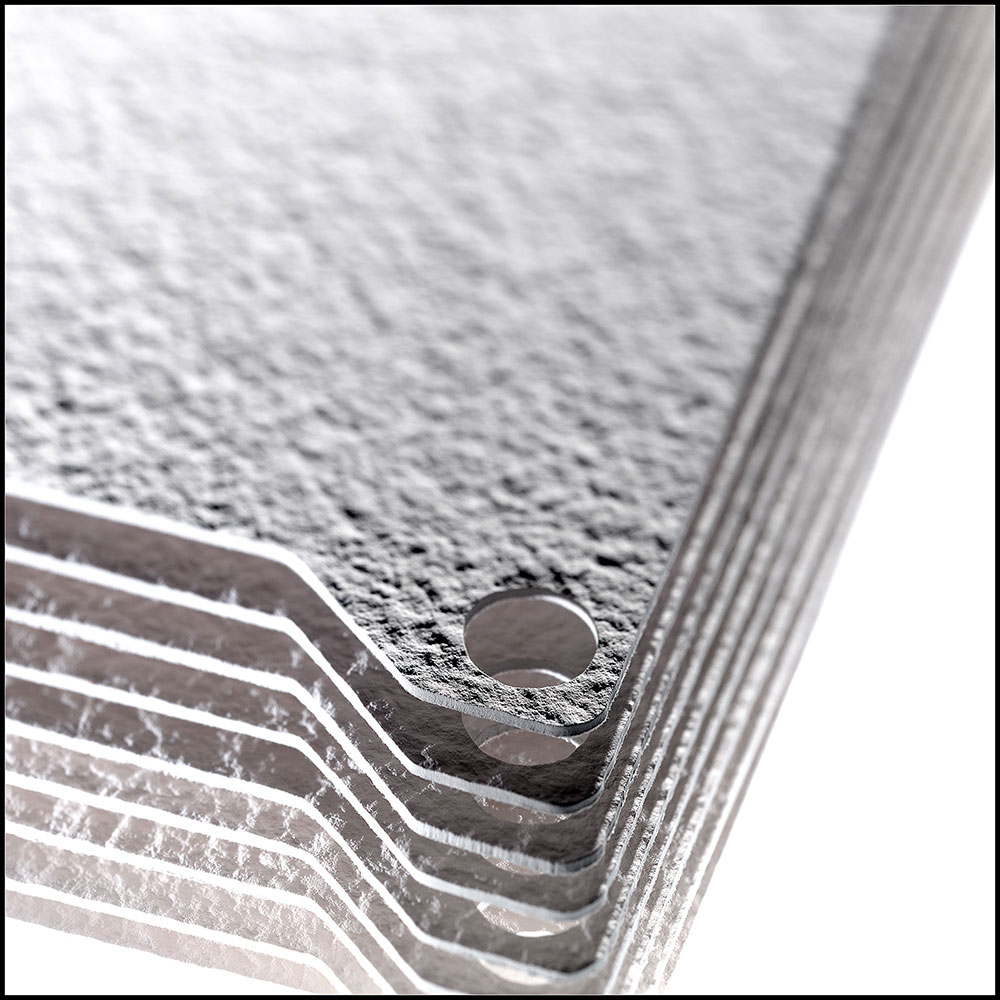

BECO CPS depth filter sheets are used for clarifying filtration in the chemical, cosmetic and food industries. The filter sheets remove particles of a coarse, crystalline, amorphous or gel-like structure perfectly. An extremely wide range of filtration tasks can be performed according to given specifications, even with highly viscous liquids.



FILTER MATERIAL

Cellulose with mineral components (CP2KS / CP2KS without mineral components)





RETENTION

Coarse, clarifying and fine filtration



MAX. OPERATING TEMPERATURE

FDA, EC1935



Core features

  • High dirt-holding capacity for economic filtration
  • Differentiated fiber and cavity structure (internal surface area) for the widest possible range of applications and operating conditions
  • The ideal combination of filtration-active and adsorptive properties ensures maximum safety
  • Very pure raw materials and therefore minimum influence on filtrates
  • Comprehensive quality assurance for all raw and auxiliary materials and intensive in-process controls ensure consistent quality of the finished products

Special Depth Filters

BECO CP1KS, CP2KS

  • High-purity cellulose
  • Low washable ions
  • No mineral components
  • Near complete catalyst separation at high flow rates
  • Near complete catalyst recovery

These special BECO depth filter sheets were developed for highest demands in the chemical industry. By using and selecting high-purity cellulose, the content of washable ions is exceptionally low. Since these depth filters contain no mineral components, there are only traces of iron and aluminum migration. Complete separation of catalysts at high flow rates is also possible using Eaton’s BECO CPS depth filter sheets. Subsequent ashing enables virtually loss-free and nearly complete recovery of catalysts.

Coarse Filtration
BECO CP07S, CP03S, CP02S, CP01S
BECO depth filters with filter-active, mineral components for clarification of liquids with a coarser crystalline and amorphous, or gel-like particle structure and is suitable for high-viscosity liquids

Applications:

  • Concentrated sugar solution
  • Active earth separation
  • Resin melts
  • Insulation oils
  • Boiled linseed oils
  • Nail varnish
  • Ointment base
  • Syrup
  • Cooking oils
  • Vegetable extracts
  • Gelatin broths
  • Paint
  • Polymer dispersions
  • Filtration of Fuller's earth

Applications:

  • Beer
  • Wine
  • Fruit juice
  • Fruit wine
  • Fine chemicals
  • Pharmaceuticals
TypeArticle numberNominal retention rate µmWater throughput
△ p = 14.5 psi gpm/ft2
(△ p = 100 kPa l/m2/min)
BECO CP07S2710815.0105.3 (4290)
BECO CP03S2712320.0175.2 (7140)
BECO CP02S2712225.0233.6 (9520)
BECO CP01S2712130.0306.8 (1250)
BECO CP2KS2703127.0239.5 (9760)
BECO CP1KS2702140.0555.1 (22620)

© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

BECO CP1

BECO CP1

Eaton’s BECO CP1 depth filter sheets are specifically manufactured with reduced thickness for the filtration of colloidal and viscous media, and media containing particles.

These filter sheets are mainly used for polishing filtration of viscous liquids and for a wide range of filtration tasks-even to remove coarse, crystalline, amorphous and gel-like structure particles.



FILTER MATERIAL

Cellulose with mineral components





RETENTION

Coarse, clarifying and fine filtration



MAX. OPERATING TEMPERATURE

FDA, EC1935



Core features

  • High dirt-holding capacity for economic filtration
  • Differentiated fiber and cavity structure (internal surface area) for a widest possible range of applications and operating conditions
  • The ideal combination of filtration-active and adsorptive properties ensures maximum safety
  • Very pure raw materials and therefore minimum influence on filtrates
  • Comprehensive quality assurance for all raw and auxiliary materials and intensive in-process controls ensure consistent quality of the finished products

Applications:

  • Retention of activated charcoal particles
  • Polishing filtration of cooking oils
  • Solvents, clear varnishes
  • Vegetable extracts
  • Ointment bases
  • Filtration of Fuller's earth

Industries:

  • Beer
  • Wine
  • Fruit juice
  • Fruit wine
  • Fine chemicals
  • Pharmaceuticals
TypeArticle numberNominal retention rate µmWater throughput
△ p = 14.5 psi gpm/ft2
(△ p = 100 kPa l/m2/min)
BECO CP1271103.026.3 (1070)

© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

BECO ACF

BECO ACF

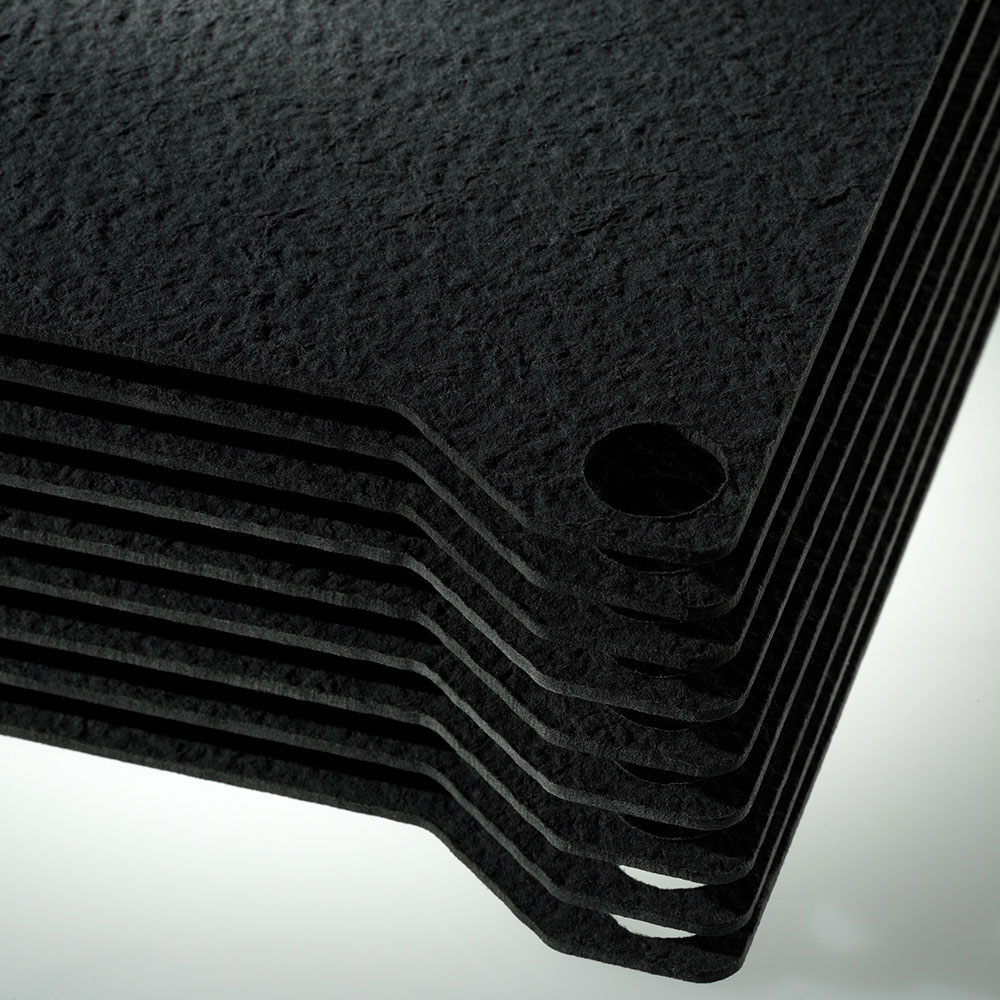

Eaton’s BECO ACF activated carbon filter sheets have unique high adsorptive properties for removal of colors, odors and undesirable byproducts from liquids in the chemical, pharmaceutical, cosmetic, and food industries as well as in bioengineering.



FILTER MATERIAL

Activated carbon





RETENTION

Adsoptive filtration



MAX. OPERATING TEMPERATURE

FDA, EC1935



Core features

  • High adsorption power for decolorizing and aroma correcting.
  • Complex fiber and cavity structure with a large interior surface for the widest range of applications and operating conditions.
  • BECO ACF filter sheets are easy to use and allow dust-free handling.

Industries:

  • Fine and specialty chemistry
  • Biotechnology
  • Cosmetics
  • Spirits
  • Fruit juices
  • Liquid foods

Applications:

  • Color and odor adsorption
  • Removal of undesirable byproducts
TypeArticle numberWater throughput
△ p = 14.5 psi gpm/ft2
(△ p = 100 kPa l/m2/min)
BECO ACF 071920734.7 (1415)
BECO ACF 07 with protective paper1930714.7 (600)
