BECODISC BC

BECODISC BC

Eaton’s BECODISC BC stacked disc cartridges have unique high adsorptive properties for removal of colors, odors and undesirable byproducts from liquids in the chemical, pharmaceutical, cosmetic, and food industries as well as in bioengineering.

FILTER MATERIAL

Activated carbon







RETENTION

Adsoptive filtration




MAX. OPERATING TEMPERATURE

FDA, EC1935/2004





Core features

  • High adsorption power for decolorizing and aroma correcting
  • Complex fiber and cavity structure with a large interior surface for a widest possible range of applications and operating conditions
  • Easy to use and allow dust-free handling

Segments:

  • Beer
  • Wine
  • Fruit juice
  • Fruit wine
  • Fine chemicals
  • Pharmaceuticals

Components:

  • Decolorizing of chemicals and oils
  • Filtering of glucose, enzyme, vitamin, and antibiotic solutions
  • Treating of cosmetics
  • Taste and color correcting of beverages, spirits, and fruit juices
TypeDepth filter sheetWater throughput
△ p = 14.5 psi gpm/ft2
(△ p = 100 kPa l/m2/min)		Thickness
in (mm)
B30CBECO ACF 07 with protective fleece34.7 (1415)0.15 (3.8)
B30WBECO ACF 0734.7 (1415)0.15 (3.8)

© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

BECODISC BA

BECODISC BA

Eaton’s BECODISC BA stacked disc cartridges are specifically manufactured with reduced calcium and magnesium for the prevention and removal of haze while preserving color and flavor.

These filter sheets are graded from coarse particle separation to fine filtration, which allows them to accurately adapt to the requirements of the filtration of high-quality spirits, such as cognac, Armagnac, barrel-matured brandy and whiskey.

FILTER MATERIAL

Cellulose with mineral components







RETENTION

Coarse, clarifying, fine filtration




MAX. OPERATING TEMPERATURE

FDA, EC1935/2004





Core features

  • Low content of calcium, magnesium and iron ions to avoid secondary hazes
  • Color-preserving filtration through minimum colour adsorption in the depth filter sheet
  • Selective separation of long-chain fatty acid esters
  • Reliable retention of the components to be separated through ideal pore structure
  • High clarification effect through the use of high-quality raw materials
  • Economic service life through high dirt-holding capacity
  • Comprehensive quality assurance for all raw and auxiliary materials, and intense in-process controls ensure consistent quality of the finished products

Segments:

  • Beer
  • Wine
  • Fruit juice
  • Fruit wine
  • Fine chemicals
  • Pharmaceuticals

Components:

  • Finely fibrillated cellulose fibres (hardwood and softwood)
  • Cationic resin
  • High-purity kieselguhr
TypeDepth filter sheetNominal retention rate µmWater throughput
△ p = 14.5 psi gpm/ft2
(△ p = 100 kPa l/m2/min)		Thickness
in (mm)
BA20BECO SELECT A 200.83.9 (160)0.17 (4.4)
BA40BECO SELECT A 402.57.4 (300)0.17 (4.4)

© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

BECODISC

BECODISC

BECODISC premium stacked disc cartridges with BECOPAD depth filter sheets are made of cellulose, characterized by high-purity, strength and performance for excellent color and flavor fidelity, which even for microbial removal does not require mineral components.

BECOPAD depth filter sheets offer exceptionally high chemical resistance both in alkaline and acidic applications.



FILTER MATERIAL

High-purity cellulose







RETENTION

Coarse, clarifying, fine filtration; Microbial reduction and removal




MAX. OPERATING TEMPERATURE

FDA, EC1935/2004




Core features

  • Made of cellulose, characterized by high-purity 20% higher performance
  • Reduced pre-rinse volumes
  • Increased strength of the depth filter media used versus conventional depth filter sheets
  • Rinsing volume reduced by 50%, resulting in reduced process costs
  • Very good chemical and mechanical resistance
  • Low charge-related adsorption
  • Virtually no ash content, resulting in optimum ashing
  • No undesirable affects to the product

Segments:

  • Beer
  • Wine
  • Fruit juice
  • Fruit wine
  • Fine chemicals
  • Pharmaceuticals
TypeDepth filter sheetNominal retention rate µmWater throughput
△ p = 14.5 psi gpm/ft2
(△ p = 100 kPa l/m2/min)		Thickness
in (mm)
B1C3BECOPAD 115 C0.1 – 0.20.6 (26)0.16 (4.0)
B123BECOPAD 1200.1 – 0.31.3 (54)0.15 (3.9)
B173BECOPAD 1700.2 – 0.41.9 (77)0.15 (3.9)
B223BECOPAD 2200.3 – 0.52.5 (100)0.15 (3.9)
B273BECOPAD 2700.5 – 0.73.3 (135)0.15 (3.9)
B353BECOPAD 3500.7 – 1.03.9 (160)0.15 (3.9)
B453BECOPAD 4501.0 – 2.07.4 (300)0.15 (3.9)
B553BECOPAD 5502.0 – 3.014.0 (570)0.15 (3.9)
B583BECOPAD 5808.0 – 10.087.6 (3571)0.15 (3.9)

© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

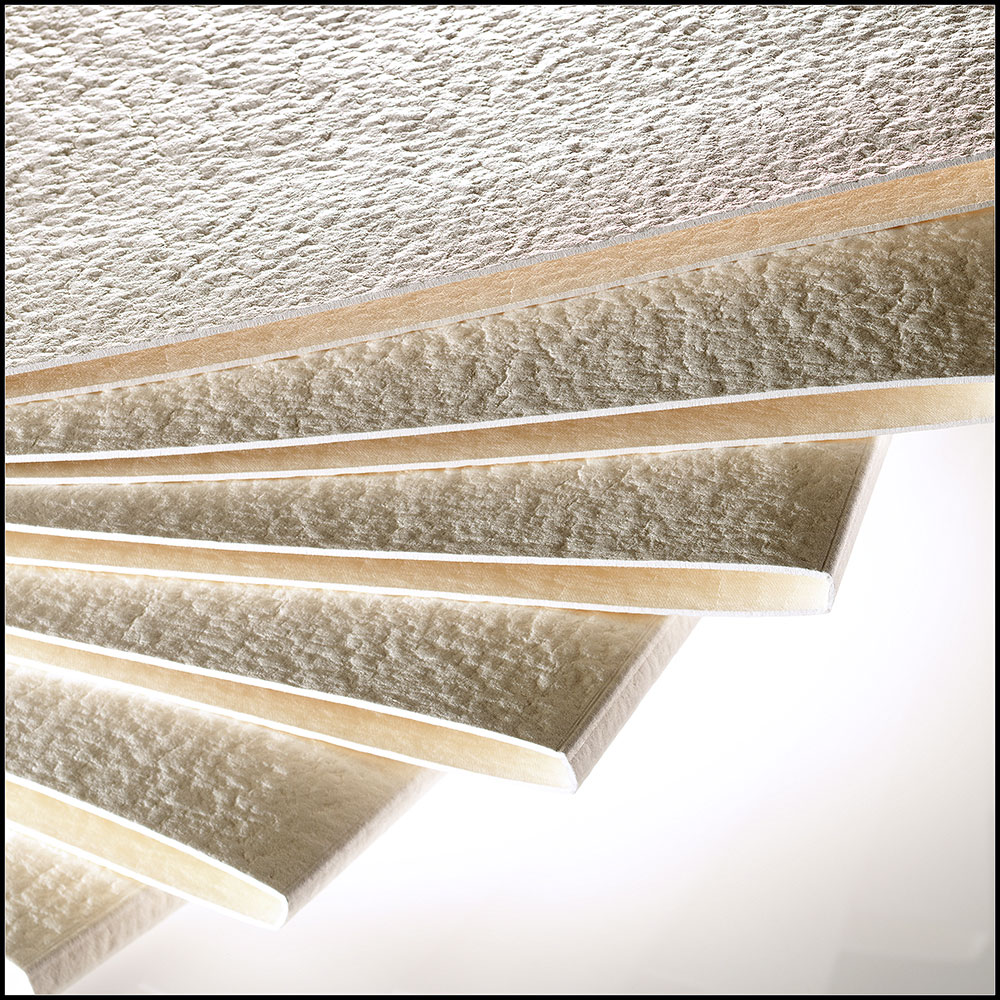

BECO PR ENDURA S

BECO PR ENDURA S

Eaton’s BECO PR ENDURA S support sheets with endotoxin content of < 0.08 EU/ml after rinsing with 1.23 gal/ft² (50 l/m²) WFI (Water for Injection) are specifically formulated for precoat filtration and valuable product recovery in pharmaceutical and biotechnology applications. The very exceptional surface qualities enable quick and easy paste release in applications such as plasma fractionation.



FILTER MATERIAL

High strength artificial fibres






RETENTION

Pre-coat filtration




MAX. OPERATING TEMPERATURE

FDA, EC1935; Validation Guide available




Core features

  • Extremely low content of extractable components
  • Low endotoxin content through special production technique
  • Comprehensive quality assurance for all raw and auxiliary materials and intense in-process controls ensure consistent quality of the finished products
  • The filter material meets the guidelines of FDA, CRF 21 § 177.2260
  • Prior to delivery, a LAL test is used to verify that the BECO PR ENDURA products have an endotoxin content. A certificate is available on request

Special Low-Endotoxin Filter Sheet for Precoat Filtration with Minimum Loss of Product
BECO PR ENDURA S

The application of Eaton’s BECO PR ENDURA S in precoat filtration, particularly for cake harvesting as part of plasma fractionation, ensures safe and economic filtration results. Product loss during cake harvesting is minimized due to the extremely smooth and hydrophobic surface of BECO PR ENDURA S. The high wet bursting strength of BECO PR ENDURA S further simplifies cake harvest through secure handling. Even if the intention is to extract the filtrate as a resource substance during precoat filtration, product loss is minimized due to the low suction volume (small thickness and hydrophobic matrix) of BECO PR ENDURA S.

Standard Support Sheet in Low-Endotoxin Design
BECO PR ENDURA

Eaton’s BECO PR ENDURA support sheet combines the positive mechanical and filtration characteristics according to the requirements of the pharmaceutical industry. This support sheet is suitable for precoating with a variety filter aids and is frequently used for the separation of activated carbon (e.g. for decolorization of antibiotics). Due to its high synthetic fiber content, Eaton’s BECO PR ENDURA has high chemical resistance, even for solutions with extreme pH values.

Endotoxin Content of the BECO PR ENDURA Range*
In order to determine the endotoxin content, support sheets are rinsed with endotoxin-free water.
Filtration speed: 500l m-2 h-1
Sampling after: 50 l m-2

TypeArticle numberWater throughput
 △ p = 14.5 psi gpm/ft2
(△ p = 100 kPa l/m2/min)		Endotoxin content EU/ml
BECO PR ENDURA S2945018.9 (770)< 0.08

© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

BECOPAD P

BECOPAD P

The BECOPAD P depth filter sheets with extremely low endotoxin content (<0.025 EU/ml) after rinsing with 0.61 gal/ft² (25 l/m²) WFI (Water for Injection) and up to 50% reduction of rinse volume are composed of high-purity cellulose. Eaton’s manufacturing method assure consistent product quality and the hightest purity of filter media to meet the manufacturing requirements of pharmaceutical products plus the regulatory need for risk avoidance.

These depth filter sheets can be used for a wide range of applications, including clarification of ethanol solutions which have a tendency for ion-related precipitation, catalyst removal, and separation tasks in the production of biopharmaceutical products. Due to low charge-specific adsorption effects and mechanical separation they can preserve the desired target ingredients in the filtrate.

FILTER MATERIAL

High-purity cellulose






RETENTION

Coarse, clarifying, fine filtration; Microbial reduction and removal



MAX. OPERATING TEMPERATURE

FDA, EC1935; Validation Guide available




Core features

  • Minimum endotoxin contents, this ensures product safety
  • Increased endotoxin retention
  • Without the addition of mineral components, therefore minimum ion content particularly of calcium, magnesium and aluminum ions
  • Very high chemical resistance and mechanical stability
  • Rinsing volume reduced by up to 50%, resulting in reduced process costs
  • A Validation Guide is available upon request

Further distinguishing features include the very low level of extractables and extremely low endotoxin content (< 0.025 EU/ml after rinsing with 25 l/m² WFI).

The detection of ion content after extraction with 40 % ethanol (after rinsing with 25 l/m² ethanol) is extremely low e.g.
– Calcium < 50 ppb
– Magnesium < 25 ppb
– Aluminum < 5 ppb

The BECOPAD P depth filter media meets the testing requirements of Plastic Class VI and Cytotoxicity tests.

All quality related test reports and documents are enclosed in a Validation Guide, which is available upon request.

Applications:

  • Clarification of proteins, enzymes or ion sensitive solutions
  • Purification steps in active pharmaceutical ingredient production, fine and specialty chemicals, plant extracts, flavors, and fragrances
  • Blood plasma derivatives

Industries:

  • Beer
  • Wine
  • Fruit juice
  • Fruit wine
  • Fine chemicals
  • Pharmaceuticals
TypeArticle numberNominal
retention
rate µm		Water throughput
△ p = 14.5 psi gpm/ft2
(△ p = 100 kPa l/m2/min)
Endotoxin
content
EU/ml
BECOPAD P 170Q11170.2 – 0.41.9 (77)< 0.025
BECOPAD P 270Q21270.5 – 0.73.3 (135)< 0.025
BECOPAD P 350Q21350.7 – 1.03.9 (160)< 0.025
BECOPAD P 550Q21552.0 – 3.014.0 (570)< 0.025
BECOPAD P 580Q21588.0 – 10.087.6 (3571)< 0.025

© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

BECOPAD

BECOPAD

Eaton’s BECOPAD premium depth filter sheets are made of cellulose, characterized by high-purity, strength and performance for excellent color and flavor fidelity, which even for microbial removal does not require mineral components. BECOPAD depth filter sheets offer exceptionally high chemical resistance both in alkaline and acidic applications.

FILTER MATERIAL

High-purity cellulose






RETENTION

Coarse, clarifying, fine filtration; Microbial reduction and removal



MAX. OPERATING TEMPERATURE

FDA, EC1935




Core features

  • Without the addition of mineral components, therefore low ion content
  • 20% higher performance
  • Very good chemical and mechanical resistance
  • Low charge-related adsorption
  • Water required for pre-flushing and regenerating reduced by up to 50%
  • Drip losses reduced by 99%
  • Maximum filtration hygiene
  • Virtually no ash content, therefore optimum ashing
  • Biodegradable

Applications:

  • Activated carbon removal
  • Catalyst removal
  • Purification of industrial enzymes
  • Filtration processes in the production of chemicals and solvents
  • Clarification of varnishes and resins
  • Particle and precipitate removal from cosmetic products as well as from flavors and fragrances

Industries:

  • Beer
  • Wine
  • Fruit juice
  • Fruit wine
  • Fine chemicals
  • Pharmaceuticals
TypeArticle numberNominal retention rate µmWater throughput
△ p = 14.5 psi gpm/ft2
(△ p = 100 kPa l/m2/min)
BECOPAD 115CQ2C110.1 – 0.20.6 (26)
BECOPAD 120Q21120.1 – 0.31.3 (54)
BECOPAD 170Q21170.2 – 0.41.9 (77)
BECOPAD 220Q21220.3 – 0.52.5 (100)
BECOPAD 270Q21270.5 – 0.73.3 (135)
BECOPAD 350Q21350.7 – 1.03.9 (160)
BECOPAD 450Q21451.0 – 2.07.4 (300)
BECOPAD 550Q21552.0 – 3.014.0 (570)
BECOPAD 580Q21588.0 – 10.087.6 (3571)

© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

BECO Standard

BECO Standard

The BECO Standard depth filter sheets have superior clarification performance for reliable removal from particles to microorganisms due to optimal pore structure and adsorption.

These filter sheets cover filtration grades from 4.0 µm to 0.1 µm nominal rating in applications such as beer, biotechnology, cosmetics, food, fruit juices, wine and more.

FILTER MATERIAL

Cellulose with mineral components





RETENTION

Coarse, clarifying,, fine filtration; Microbial reduction and removal



MAX. OPERATING TEMPERATURE

FDA, EC1935



Core features

  • Ideal pore structure for reliable retention of the components to be separated
  • Use of high-quality raw materials for high clarification performance
  • Economic service life through high dirt-holding capacity
  • Comprehensive quality control of all raw and auxiliary materials
  • In-process monitoring ensures consistent quality

Microbe Reduction and Removal

BECO Steril S 100, Steril S 80, Steril 60, Steril 40 – depth filter sheets with a high germ retention rate.

These sheet types are particularly suitable for cold-sterile bottling or storing of liquids. The high germ retention rate is achieved through the fine-pored structure of the depth filter sheet and an electrokinetic potential with an adsorptive effect. Due to their high retention capacity for colloidal ingredients, these sheet types are particularly suitable as prefilters for subsequent membrane filtration.

Microbe Reduction and Fine Filtration

BECO SD 30, KDS 15, KDS 12, KD 10, KD 7, KD 5 –  depth filter sheets for achieving a high degree of clarification.

These sheet types reliably retain ultra-fine particles and have a germ-reducing effect, making them particularly suitable for haze-free filtering of liquids prior to storing and bottling.

Clarifying Filtration and Coarse Filtration

BECO KD 3, K 2, K 1 – depth filter sheets with large-volume cavity structure.

These depth filter sheets have a high holding capacity for particles and are especially suitable for clarifying filtration applications.

Industries:

  • Beer
  • Wine
  • Fruit juice
  • Fruit wine
  • Fine chemicals
  • Pharmaceuticals
TypeArticle numberNominal retention rate µmWater throughput
△ p = 14.5 psi gpm/ft2
(△ p = 100 kPa l/m2/min)
BECO Steril S 100269500.10.7 (30)
BECO Steril S 80268000.21.1 (46)
BECO Steril 60256000.31.5 (60)
BECO Steril 40254000.41.7 (69)
BECO SD 30243000.52.1 (84)
BECO KDS 15231500.62.8 (115)
BECO KDS 12231200.83.8 (155)
BECO KD 10221001.04.5 (185)
BECO KD 7220701.55.5 (225)
BECO KD 5220502.06.6 (270)
BECO KD 3220302.510.4 (425)
BECO K2210203.038.0 (1550)
BECO K1210104.046.6 (1900)

© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

BECO SELECT A

BECO SELECT A

Eaton’s BECO SELECT A depth filter sheets are specifically manufactured with reduced calcium and magnesium for the prevention and removal of haze while preserving color and flavor.

These filter sheets are graded from coarse particle separation to fine filtration, which allows them to accurately adapt to the requirements of the filtration of high-quality spirits, such as cognac, armagnac, barrel-matured brandy and whiskey.

FILTER MATERIAL

Cellulose with mineral components





RETENTION

Coarse, clarifying, fine filtration; Microbial reduction and removal



MAX. OPERATING TEMPERATURE

FDA, EC1935



Core features

  • Low content of calcium, magnesium and iron ions to avoid secondary hazes
  • Color-preserving filtration through minimum color adsorption in the depth filter sheet
  • Selective separation of long-chain fatty acid esters
  • Reliable retention of the components to be separated through ideal pore structure
  • High clarification effect through the use of high-quality raw materials
  • Economic service life through high dirt-holding capacity
  • Comprehensive quality assurance for all raw and auxiliary materials and intense in-process controls ensure consistent quality of the finished products

Fine filtration of very fine haze substances

BECO SELECT A 20
This depth filter sheet type reliably retains very fine particles and higher fatty acids which makes them particularly suitable for haze-free storage and filling. These filters are typically used for achieving a high clarifying level.

Clarification filtration

BECO SELECT A 40
This depth filter sheet type has a high dirt holding capacity and is particularly suitable for the filtration of spirits with a high fusel oil content and is used for clarification filtration and for the separation of medium-strong haze.

Industries:

  • Beer
  • Wine
  • Fruit juice
  • Fruit wine
  • Fine chemicals
  • Pharmaceuticals
TypeArticle numberNominal retention rate µmWater throughput
△ p = 14.5 psi gpm/ft2
(△ p = 100 kPa l/m2/min)
BECO SELECT™ A 20276200.83.9 (160)
BECO SELECT A 40276402.57.4 (300)

© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

BECO PR

BECO PR

Eaton’s BECO PR Range depth filter sheets meet the exact requirements of the pharmaceutical industry and provide high endotoxin retention on a wide range of pharmaceutical products.

The exceptional pure raw materials and the special production method used to manufacturer the BECO PR Range depth filter sheets result in a low endotoxin content, < 0.125 EU/ml after rinsing with 1.23 gal/ft² (50 l/m²) of WFI (Water for Injection).

FILTER MATERIAL

Cellulose with mineral components





RETENTION

Coarse, clarifying, fine filtration; Microbial reduction and removal



MAX. OPERATING TEMPERATURE

FDA, EC1935; Validation Guide available



Core features

  • Greatest possible endotoxin retention as well as a maximum germ retention rate
  • A special manufacturing process achieves a low endotoxin content
  • Maximum raw material purity for minimum migration of soluble ions
  • The ideal combination of filtration-active and adsorptive properties ensures maximum reliability
  • Comprehensive quality assurance for all raw and auxiliary materials and intensive in-process controls ensure consistent quality of the finished products
  • Before delivery, the endotoxin content of < 0.125 EU ml-1 of all BECO PR depth filter sheets is tested with the help of an LAL test. A certificate is available on request

Microbe Reduction and Removal

BECO PR Steril S 100, PR Steril S 80, PR Steril 40
These specific sheet filter sheets boast high germ retention rates achieved through the fine-pored structure and an electro-kinetic potential with an adsorptive effect. These depth filter sheets are characterized by high endotoxin retention rates and due to their great retention capacity for colloidal components, these filter sheets are particularly suitable as prefilters for subsequent membrane filtration.

Fine Filtration

BECO PR 12
Eaton’s BECO depth filter sheets for achieving a high degree of clarification. These depth filter sheets reliably retain ultra-fine particles and have a germ-reducing effect and are used in practice as ideal prefilters for membrane filters, reverse osmosis systems, and to protect chromatography columns.

Clarifying Filtration and coarse Filtration

BECO PR 5, PR 1
These filer sheets offer a large-volume cavity structure and have a high dirt holding capacity for particles and are very suitable for clarifying filtration applications.

Industries:

  • Beer
  • Wine
  • Fruit juice
  • Fruit wine
  • Fine chemicals
  • Pharmaceuticals
TypeArticle numberNominal retention
rate µm		Water throughput
△ p = 14.5 psi gpm/ft2
(△ p = 100 kPa l/m2/min)
Endotoxin content
EU/ml
BECO PR Steril S100272950.10.7 (30)< 0.125
BECO PR Steril S 80272800.21.1 (46)< 0.125
BECO PR Steril 40272400.41.5 (61)< 0.125
BECO PR 12272120.84.3 (175)< 0.125
BECO PR 5272052.08.1 (330)< 0.125
BECO PR 1272004.058.4 (2381)< 0.125

© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

BECO ENDURA

BECO ENDURA

Eaton’s BECO ENDURA support filter sheets are a unique type of washable, reusable protective sheets for pre-coat filtration in diatomite frame filters offering particularly notably high performance.

Due to their excellent wet strength and optimized surface the filter cake can be removed with ease and a service life of up to 30 pre-coating cycles is possible dependent on the liquid to be filtered and the filter aids used.



FILTER MATERIAL

High strength artificial fibres





RETENTION

Pre-coat filtration



MAX. OPERATING TEMPERATURE

FDA, EC1935



Core features

Sterilization (inserting/steaming)

  • High stability/strength
  • Little loss of strength during all filtration cycles
  • No negative influence on the value-adding ingredients and flavors (phenols/proteins)
  • Uniform diatomite precoat appearance over the whole BECO ENDURA lifetime
  • Very little discoloration of the support sheet

Filtration

  • Higher number of cycles (longer service life)
  • Better cost effectiveness
  • Reduced costs
  • Increased efficiency
  • Higher wet strength

Unpacking (filtration end/filter opening)

  • Ideal handling
  • Good diatomite separation capability
  • High wet strength

Industries:

  • Beer
  • Wine
  • Fruit juice
  • Fruit wine
  • Fine chemicals
  • Pharmaceuticals
TypeArticle numberWater throughput
△ p = 14.5 psi gpm/ft2
(△ p = 100 kPa l/m2/min)
BECO ENDURA™ 229200105.3 (4290)

© 2019 NH-TECH.CO.TH All rights reserved.
