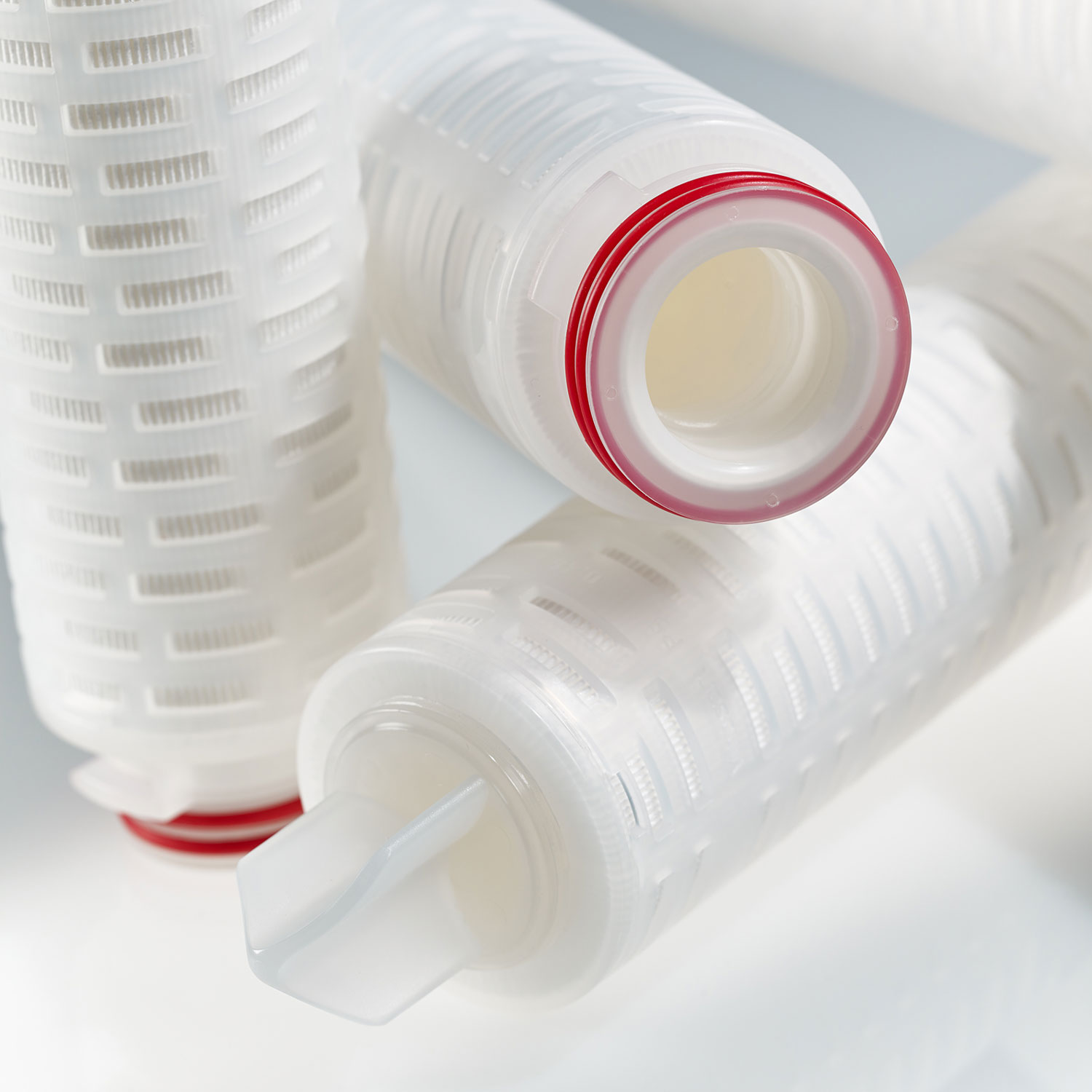

BECO MEMBRAN PS Aqua

BECO MEMBRAN PS Aqua

BECO MEMBRAN PS Aqua membrane filter cartridges are designed specifically for water filtration. The PES membrane provides high flow rates and extended service life for water final filtration in food and beverage applications.

FILTER MATERIAL

Polyethersulfone

RETENTION

Absolute (LRV-Values)

MAX. OPERATING TEMPERATURE

176 °F (80 °C)

Core features

  • The high filter area and asymmetric membrane structure of polyethersulfone offers exceptionally high flow rates and outstanding service life
  • The special design allows for 72.5 psi (5 bar) differential pressure in the direction of flow and 29 psi (2 bar) differential pressure in reverse to support a long service life
  • The high thermal stability allows for more than 100 steam sterilization cycles
  • Broad chemical compatibility from pH 1 - 14
ARTICLE NUMBERPSA02
FILTER MATERIALPolyethersulfone
RETENTION RATING (ΜM)0.2
RETENTIONAbsolute
LENGTHS20”, 30”, 40”
ADAPTER CODES2, 7
CAGESYes
STRUCTUREPleated
PRESSURE HOLD TEST
TEST PRESSURE IN PSIG AND DIFFUSION RATE PER 10″

PSA02
36.3 psig (2.5 bar) ≤ (20 ml/min)

BACKWASHABILITYLimited 29 psid (2.0 bar) at 68 °F (20 °C)
CHEMICAL RESISTANCEpH 1 – 14
MAX. OPERATING TEMPERATURE176 °F (80 °C)
MAX. DIFFERENTIAL PRESSURE IN FLOW DIRECTION

72.5 psid (5.0 bar) at 68°F (20 °C)

4.4 psid (0.3 bar) at 250 °F (121 °C)

STEAM CYCLES≥ 100 at 221 °F (105 °C) in 30 minutes

© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

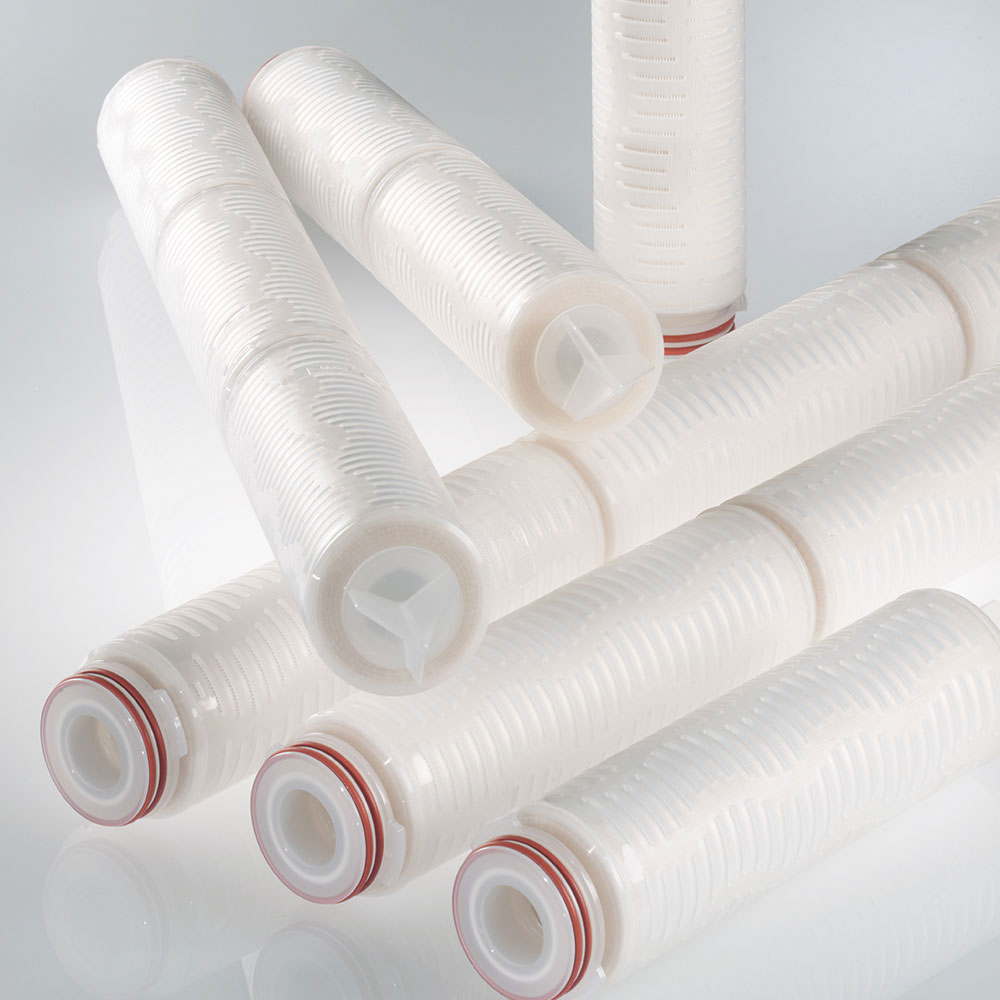

BECO MEMBRAN PFplus

BECO MEMBRAN PFplus

Eaton offers high-quality beverage filtration products designed and built to the latest, most exacting quality standards. BECO MEMBRAN PFplus pleated membrane filter cartridges are designed for the removal of spoilage microorganisms and provide a long service life thanks to excellent mechanical and thermal stability. BECO MEMBRAN PFplus filter cartridges can be integrity tested.

FILTER MATERIAL

Polyvinylidene fluoride (PVDF)

RETENTION

Absolute (LRV-Values)

MAX. OPERATING TEMPERATURE

176 °F (80 °C)

Core features

  • Long service life through larger filter area and excellent mechanical stability
  • High microbiological retention due to uniform pore sizes
  • Very good resistance to sterilization media and cleaning solutions
  • The filter can be sterilized many times with steam or hot water
  • Used filter cartridges can be stored dry; the membrane retains its wettability and elasticity during storage
ARTICLE NUMBERKVBB, KVBY, (KVBA)
FILTER MATERIALPolyvinylidene fluoride (PVDF)
RETENTION RATING (ΜM)0.45, 0.65
RETENTIONAbsolute
LENGTHS30”
ADAPTER CODES7
CAGESYes
STRUCTUREPleated
PRESSURE HOLD TEST
TEST PRESSURE IN PSIG AND DIFFUSION RATE PER 10″

KVBB = 0.45 μm
21.8 psig (1.5 bar), 17.1 ml/min

KVBY = 0.65 μm
8.7 psig (0.6 bar), 9.1 ml/min

BACKWASHABILITYLimited up to 50 psid (3.5 bar) at 77 °F (25 °C)
CHEMICAL RESISTANCEpH 1 – 12
MAX. OPERATING TEMPERATURE176 °F (80 °C)
MAX. DIFFERENTIAL PRESSURE IN FLOW DIRECTION

72.5 psid (5.0 bar) at 68°F (20 °C)

4.4 psid (0.3 bar) at 250 °F (121 °C)

STEAM CYCLES≥ 100 At 230 °F (110 °C) in 30 minutes

© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

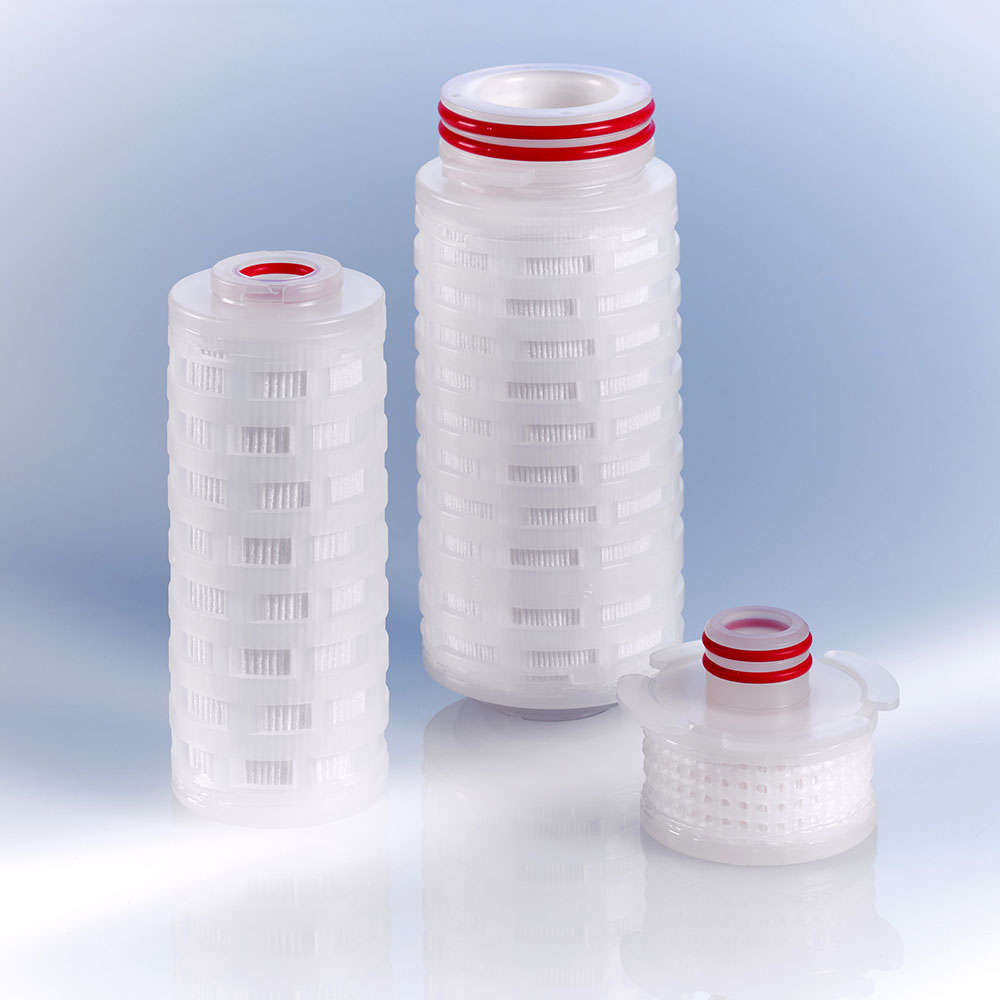

BECO MEMBRAN H Air Mini

BECO MEMBRAN H Air Mini

BECO MEMBRAN H Air Mini filter cartridges with 0.2 µm hydrophobic single layer membranes made of Polytetrafluorethylene (PTFE) are ideal for sterile air filtration and gas filtration in the food and beverage industry. The filter cartridges remove contaminants in small volumes in applications such as sterilizing fermenter supply air, tank ventilation, or cooling down storage tanks after steam sterilization. The PTFE membrane filter cartridges are available in 1″ and 5″ lengths.

FILTER MATERIAL

Teflon (PTFE)

RETENTION

Absolute (LRV-Values)

MAX. OPERATING TEMPERATURE

176 °F (80 °C)

Core features

  • Long-term steam-resistance at 273 °F (134 °C)
  • Validated bacteria retention capacity
  • Very low inherent membrane resistance provides high throughput

ARTICLE NUMBER

PTM02
FILTER MATERIALTeflon (PTFE)
RETENTION RATING0.2  (µm)
RETENTIONAbsolute
LENGTHS1”, 5”
ADAPTER CODES1, 4, 7
CAGESYes
STRUCTUREPleated
PRESSURE HOLD TESTPTM02
TEST PRESSURE IN PSIG AND DIFFUSION RATE PER 10″Bubble point test at 20 °C ≥ 1000 mbar in 60% isopropanol
BACKWASHABILITYYes
CHEMICAL RESISTANCEpH 1 – 14
MAX. OPERATING TEMPERATURE80 °C
MAX. DIFFERENTIAL PRESSURE IN FLOW DIRECTION5.0 bar at 20°C 0.5 bar at 134 °C
STEAM CYCLES50 at 134 °C in 20 minutes

© 2019 NH-TECH.CO.TH All rights reserved.

เขียนวันที่

BECO MEMBRAN H Air

BECO MEMBRAN H Air

Pleated PTFE membrane filter cartridges for sterile filtration of gases and air.

BECO MEMBRAN H Air filter cartridges with 0.2 µm hydrophobic single layer membranes made of Polytetrafluorethylene (PTFE) are ideal for sterile air filtration and gas filtration in the food and beverage industry. The filter cartridges remove contaminants in large volumes in applications such as sterilizing fermenter supply air, tank ventilation, or cooling down storage tanks after steam sterilization. The PTFE membrane filter cartridges are available in 10″, 20″, and 30″ lengths.

FILTER MATERIAL

Teflon (PTFE)

RETENTION

Absolute (LRV-Values)

MAX. OPERATING TEMPERATURE

176 °F (80 °C)

Core features

  • Long-term steam-resistance at 273 °F (134 °C)
  • Validated bacteria retention capacity
  • High throughput due to very low inherent membrane resistance
ARTICLE NUMBERPTC02
FILTER MATERIALTeflon (PTFE)
RETENTION RATING (ΜM)0.2
RETENTIONAbsolute
LENGTHS10”, 20”, 30”
ADAPTER CODES7
CAGESYes
STRUCTUREPleated
PRESSURE HOLD TEST
TEST PRESSURE IN PSIG AND DIFFUSION RATE PER 10″

PTC02
Nitrogen diffusion at 68 °F (20 °C) per 10″ ≤ 11 ml/min at 10.3 psig (0.7 bar) with 60% isopropanol

BACKWASHABILITYYes (20 °C)
CHEMICAL RESISTANCEpH 1 – 14
MAX. OPERATING TEMPERATURE176 °F (80 °C)
MAX. DIFFERENTIAL PRESSURE IN FLOW DIRECTION

72.5 psid (5.0 bar) at 68°F (20 °C)

7.25 psid (0.5 bar) at 273 °F (134 °C)

STEAM CYCLES≥ 150 at 273 °F (134 °C) in 20 minutes
