Depth Filter Sheets

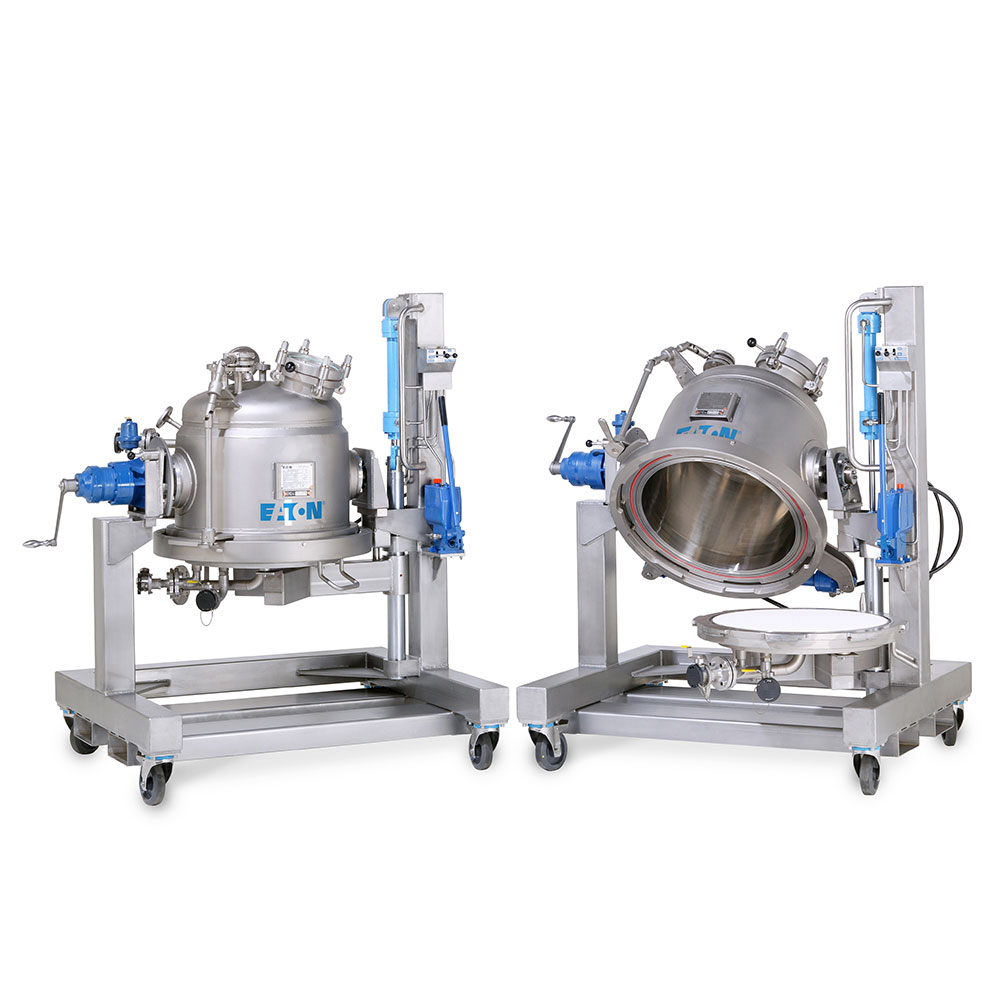

BECO INTEGRA SOLO
BECO INTEGRA SOLO
The BECO INTEGRA SOLO single-sheet filter is ideal for difficult filtration tasks in the biotechnology, chemical, cosmetics, pharmaceutical, and food industries. The system separates and washes solids from suspensions after precipitation or crystallization processes, or for the processing of pre-coat residues.
The BECO INTEGRA SOLO mobile single-sheet filter system’s filling space is designed as a pressure vessel with a level filter bottom that drops for cleaning, and a horizontal depth filter medium. The pressure vessel, with optional thermal/insulating jacket, closes with clamp screws and seals with an O-ring. BECO depth filter sheet, filter cloth, or metal composite plate filtration is optional. For the manual discharge of the filter cake, the bottom part drops via a spindle or hydraulics.
MATERIAL
Stainless steel AISI 316L / AISI 316Ti Hastelloy, Enamel, fluor-polymeric coatings
MAX. FILTER AREA
11.73 ft² (1.09 m²)
COMPLIANCE
cGMP guidelines, FDA regulations
Core features
- Multiple process steps such as extraction, filtration, washing, dissolving, and discoloration in one device.
- Simple handling through ergonomic design. Easy replacement of the BECO depth filter sheet/filter cloth, simple and thorough cleaning
- CIP possible by using rotating spray nozzles that eliminate dirt residues in corners
- The design and construction of BECO INTEGRA SOLO single-sheet filter complies with the requirements of the cGMP guidelines and the FDA regulations
Specifications
| Operating pressure: | -14.5/+87 psi (-100/+600 kPa, -1/+6 bar) |
| Operating temperature: | 14 – 320 °F (-10/+160 °C) |
| Calculated temperature: | 392 °F (200 °C) |
| Product contacting parts: | Stainless steel AISI 316L / AISI 316Ti Hastelloy, Enamel, fluor-polymeric coatings |
| Others: | Stainless steel AISI 304 |
| Gaskets, O-rings: | EPDM, Silicone, Viton, FEP coated (FDA listed) |
| Filter material: | BECO depth filter sheet, filter cloth and/or metal compound plate |
| Connections: | Flange according to EN 1092-1 or tri-clamp, sterile flange, round thread etc. |
| Chassis: | Stainless steel AISI 304 |
| Type | Depth filter sheets/depth filter media ∅ | Filter area | Filling volume | Solids capacity at a cake volume of 7.87 in (200 mm) | Weight of filter |
| in (mm) | ft² (m²) | gal (l) | gal (l) | lb (kg) | |
| 300 | 11.81 (300) | 0.65 (0.06) | 7.93 (30) | 3.17 (12) | 353 (160) |
| 450 | 17.72 (450) | 1.72 (0.16) | 17.17 (65) | 8.45 (32) | 551 (250) |
| 600 | 23.62 (600) | 2.80 (0.26) | 33.02 (125) | 13.74 (52) | 992 (450) |
| 800 | 31.50 (800) | 5.17 (0.48) | 84.54 (320) | 23.36 (96) | 2.425 (1,100) |
| 1000 | 39.37 (1,000) | 8.18 (0.76) | 166.43 (630) | 40.15 (152) | 3.748 (1,700) |
| 1200 | 47.24 (1,200) | 11.73 (1.09) | 290.59 (1100) | 57.59 (218) | 5.512 (2,500) |
| Measurements in (mm) | |||
| A | B | C | D |
| 32.48 (825) | 41.34 (1,050) | 41.34 (1,050) | 63.00 (1,600) |
| 38.39 (975) | 41.34 (1,050) | 47.24 (1,200) | 55.12 (1,400) |
| 44.88 (1,140) | 59.10 (1,500) | 56.70 (1,440) | 59.10 (1,500) |
| 54.33 (1,380) | 53.15 (1,350) | 70.08 (1,780) | 78.74 (2,000) |
| 63.78 (1,620) | 66.93 (1,700) | 82.68 (2,100) | 80.71 (2,050) |
| 73.23 (1,860) | 72.83 (1,850) | 92.52 (2,350) | 83.46 (2,120) |
| Socket list | 300 – 600 | 800 | 1000 – 1200 | According to |
| Feed | DN 25 | DN 40 | DN 40 | EN 1092-1 |
| Filtrate | DN 25 | DN 40 | DN 40 | EN 1092-1 |
| Aeration/De-aeration | – | – | DN 25 | EN 1092-1 |
| Safety valve | – | – | DN 40 | EN 1092-1 |
| Safety fitting | DN 25 | DN 25 | – | EN 1092-1 |
| Pressure gauge | – | – | DN 25 | EN 1092-1 |
| Stand by | DN 65 | DN 65 | DN 65 | EN 1092-1 |
Resources
Technical data sheets

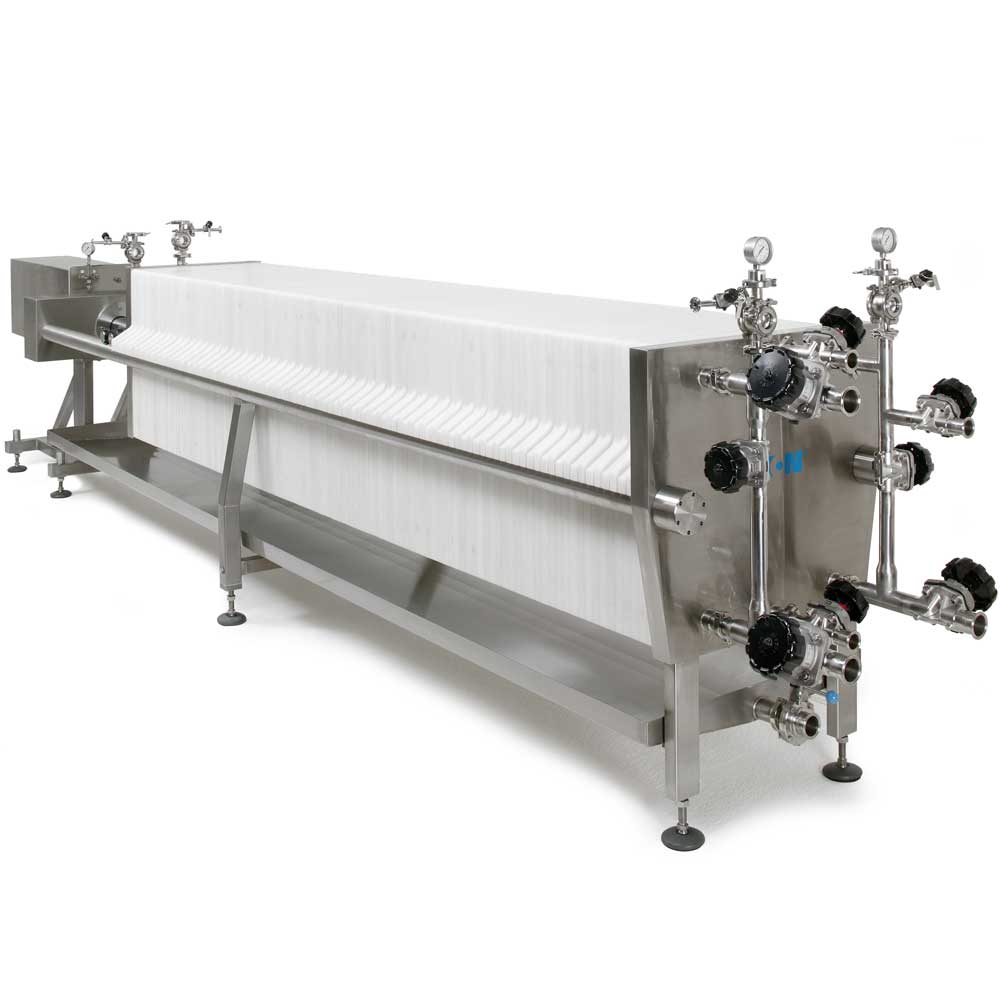

BECO INTEGRA PLATE A800 EP/OEP
BECO INTEGRA PLATE A800 EP/OEP
BECO INTEGRA PLATE A800 EP/OEP enclosed plate and frame filter is the depth filtration system for critical filtration tasks in the pharmaceutical and biotech, chemical, cosmetics, and food industries.
BECO INTEGRA PLATE A800 EP/OEP is a multi-sheet filter with external chamber. Depth filter sheets seal the product channels.
The BECO INTEGRA PLATE A800 EP version has gaskets at the external chamber that seal the entire filter package. The BECO INTEGRA PLATE A800 OEP version has a gasket-free filter package.
CLEANING
CIP
DESIGN
With External Chamber
MATERIAL
PP or PVDF, FDA listed
Core features
- CIP of filter package – without depth filter sheets
- Complete drainage of filter due to unique filter plate design
- Safe operation no dripping loss due to sealed external chamber and automatic hydraulic pressure regulation
- Easy handling and good clean ability thanks to ergonomic design of chassis, and open support grid of filter plates
- Cake discharge downwards into tray underneath of filter package
- High flexibility, the filter can be used as a sheet filter or as a precoat filter
- For precoating/removing of high particle load cake plates in a different width are available
Industries include:
- Pharmaceuticals
- Biotech
- Fine Chemicals
- Chemicals
- Cosmetics
- Food
- Beverages
BECO INTEGRA PLATE A800 EP/OEP filter is designed and manufactured according to the cGMP guidelines and the FDA regulations
Specifications
| Operating pressure/temp.: | max. 72 psi (500 kPa/5 bar) at 104 °F (40 °C) max. 29 psi (200 kPa/2 bar) at 140 °F (60 °C) |
| Differential pressure/temp.: | max. 43 psi (300 kPa/3bar) at 104 °F (40 °C) |
| Filter area per sheet: | 4.74 ft² (0.44 m²) |
| Product contacting parts: | Polypropylene/Stainless steel AISI 316L |
| Other parts: | Stainless steel AISI 304 |
| Gaskets/O-rings: | Silicone, EPDM (FDA listed), Viton |
| Filter inlet: | TC 2″ ISO2852/ASME BSP |
| Filter outlet: | TC 2″ ISO2852/ASME BSP |
| External chamber: | TC 2″ ISO2852/ASME BSP |
| Design | Max Filter area ft² (m²) | Cake volume* gal (l) | Chassis size | Filter/ feeding plates or cake frames | Depth filter sheets 26.8 x 30.7 in (680 x 779 mm) qty | Weight ≈ lb (kg) |
| 800 SF plate and frame filter with 0.79″ (20 mm) cake frames | 236.80 (22.00) 388.36 (36.08) 539.92 (50.16) 710.42 (66.00) | 43.59 (165) 71.59 (271) 99.33 (376) 130.77 (495) | 1 2 3 4 | 24/25 40/41 56/57 74/75 | 50 82 114 150 | 7,672 (3,480) 8,323 (3,775) 8,984 (4,075) 9,656 (4,380) |
| 800 ASF frame filter with 1.18″ (30 mm) cake frames | 208.39 (19.36) 331.53 (30.80) 464.14 (43.12) 606.22 (56.32) | 63.93 (242) 101.71 (385) 142.39 (539) 185.98 (704) | 1 2 3 4 | 21/22 34/35 48/49 63/64 | 44 70 98 128 | 7,937 (3,600) 8,488 (3,850) 9,149 (4,150) 9,811 (4,450) |
| 800 ASF frame filter with 1.57″ (40 mm) cake frames | 179.97 (16.72) 284.17 (26.40) 397.83 (36.96) 530.45 (49.28) | 77.40 (293) 122.05 (462) 170.92 (647) 237.12 (862) | 1 2 3 4 | 18/19 29/30 41/42 55/56 | 38 60 84 112 | 8,102 (3,675) 8,598 (3,900) 9,149 (4,150) 9,866 (4,475) |
| 800 ASF frame filter with 2.36″ (60 mm) cake frames | 142.08 (13.20) 227.33 (21.12) 312.58 (29.04) 416.78 (38.72) | 95.90 (363) 53.22 (580) 210.81 (798) 281.34 (1,065) | 1 2 3 4 | 14/15 23/24 32/33 43/44 | 30 48 66 88 | 8,154 (3,700) 8,763 (3,975) 9,326 (4,230) 10,031 (4,550) |
| Width in (mm) | Cake volume gal (l) | Weight lb (kg) | |
| Initial / end plate | 1.10 (28) | – | 38.6 (17.5) |
| Filter plate | 1.10 (28) | – | 33.1 (15.0) |
| Cake frame | 0.79 (20) | 1.74 (6.6) | 12.1 (5.5) |
| Cake frame | 1.18 (30) | 2.91 (11.0) | 17.6 (8.0) |
| Cake frame | 1.57 (40) | 4.07 (15.4) | 23.1 (10.5) |
| Cake frame | 2.36 (60) | 6.39 (24.2) | 35.3 (16.0) |
Resources
Brochures
Success stories
Technical data sheets
BECO INTEGRA PLATE A600 EP/OEP
BECO INTEGRA PLATE A600 EP/OEP
BECO INTEGRA PLATE A600 EP/OEP enclosed plate and frame filter is the depth filtration system for critical filtration tasks in the pharmaceutical and biotech, chemical, cosmetics, and food industries.
BECO INTEGRA PLATE A600 EP/OEP is a multi-sheet filter with external chamber. Depth filter sheets seal the product channels.
The BECO INTEGRA PLATE A600 EP version has gaskets at the external chamber that seal the entire filter package. The BECO INTEGRA PLATE A600 OEP version has a gasket-free filter package.
CLEANING
CIP
DESIGN
With External Chamber
MATERIAL
PP or PVDF, FDA listed
Core features
- CIP of filter package – without depth filter sheets
- Sealing is effected by a defined sealing surface with great tightening force
- The circular external chamber guarantees safe cleaning across the entire sheet area and on top allows temperature control of the filter package
- Complete drainage of filter due to unique filter plate design
- High safety during CIPping thanks to a circular sealing surface with major sealing force and an automatic hydraulic pressure control
- Easy handling and good cleanability thanks to ergonomic design
- High flexibility: the filter can be used as a sheet filter or as a precoat filter
- For precoating/removing of high particle load cake plates, different widths are available
Industries include:
- Pharmaceuticals
- Biotech
- Fine Chemicals
- Chemicals
- Cosmetics
- Food
- Beverages
Eaton’s BECO INTEGRA PLATE A600 OEP is designed and manufactured according to the cGMP guidelines and the FDA regulations
Specifications
| Operating pressure/ temperature: | max. 87 psi (600 kPa/6 bar) at 104 °F (40 °C) max. 43 psi (300 kPa/3 bar) at 140 °F (60 °C) |
| Differential pressure/temp.: | max. 43 psi (300 kPa/3 bar) at 104 °F (40 °C) |
| Filter area per sheet: | 2.9 ft² (0.27 m²) |
| Product contacting parts: | Polypropylene/ Stainless steel AISI 316L |
| Other parts: | Stainless steel AISI 304 |
| Gaskets for fittings: | Silicone, alternatively EPDM, Viton |
| Filter inlet: | TC 11/2″ ISO2852/ASME BSP |
| Filter outlet | TC 11/2″ ISO2852/ASME BSP |
| External chamber: | TC 11/2″ ISO2852/ASME BSP |
| Design | Max Filter area ft² (m²) | Cake volume* gal (l) | Chassis size | Filter plates/ cake frames qty | Depth filter sheets 20.1 x 24.8 in (512 x 630.5 mm) qty | Weight ≈ lb (kg) |
| 600 SF/ASF with 0.8″ (20 mm) cake frames | 75.6 (7.02) 133.7 (12.42) 191.8 (17.82) 32.3 (27.00) | 14.0 (53) 24.6 (93) 35.4 (134) 53.4 (202) | 1 2 3 4 | 12/13 21/22 32/33 49/50 | 26 44 66 100 | 2,976 (1,350) 3,307 (1,500) 3,693 (1,675) 4,321 (1,960) |
| 600 ASF with 1.2″ (30 mm) cake frames | 64.0 (5.94) 110.4 (10.26) 168.6 (15.66) 244.1 (22.68) | 19.6 (74) 33.1 (128) 50.0 (189) 74.8 (283) | 1 2 3 4 | 10/11 18/19 27/28 41/42 | 22 38 56 84 | 2,921 (1,325) 3,285 (1,490) 3,660 (1,660) 4,277 (1,940) |
| 600 ASF with 1.6″ (40 mm) cake frames | 52.3 (4.86) 98.8 (9.18) 139.5 (12.96) 209.3 (19.44) | 22.5 (85) 42.5 (161) 60.0 (227) 89.8 (340) | 1 2 3 4 | 8/ 9 16/17 23/24 31/32 | 18 34 48 64 | 2,943 (1,335) 3,307 (1,500) 3,638 (1,650) 4,101 (1,860) |
| 600 ASF with 2.4″ (60 mm) cake frames | 40.7 (3.78) 75.6 (7.02) 110.4 (10.26) 162.8 (15.12) | 29.6 (112) 55.0 (208) 80.3 (304) 118.4 (448) | 1 2 3 4 | 6/ 7 12/13 18/19 27/28 | 14 26 38 56 | 2,932 (1,330) 3,263 (1,480) 3,594 (1,630) 4,145 (1,880) |
| Width in (mm) | Cake volume gal (l) | Weight lb (kg) | |
| Initial / end plate | 1.02 (26) | – | 19.9 (9.0) |
| Filter plate | 1.02 (26) | – | 17.6 (8.0) |
| Cake frame | 0.79 (20) | 1.07 (4.05) | 6.6 (3.0) |
| Cake frame | 1.18 (30) | 1.78 (6.75) | 9.9 (4.5) |
| Cake frame | 1.57 (40) | 2.50 (9.45) | 13.2 (6.0) |
| Cake frame | 2.36 (60) 3 | 3.92 (14.85) | 19.9 (9.0) |
Resources
Brochures
Success stories
Technical data sheets

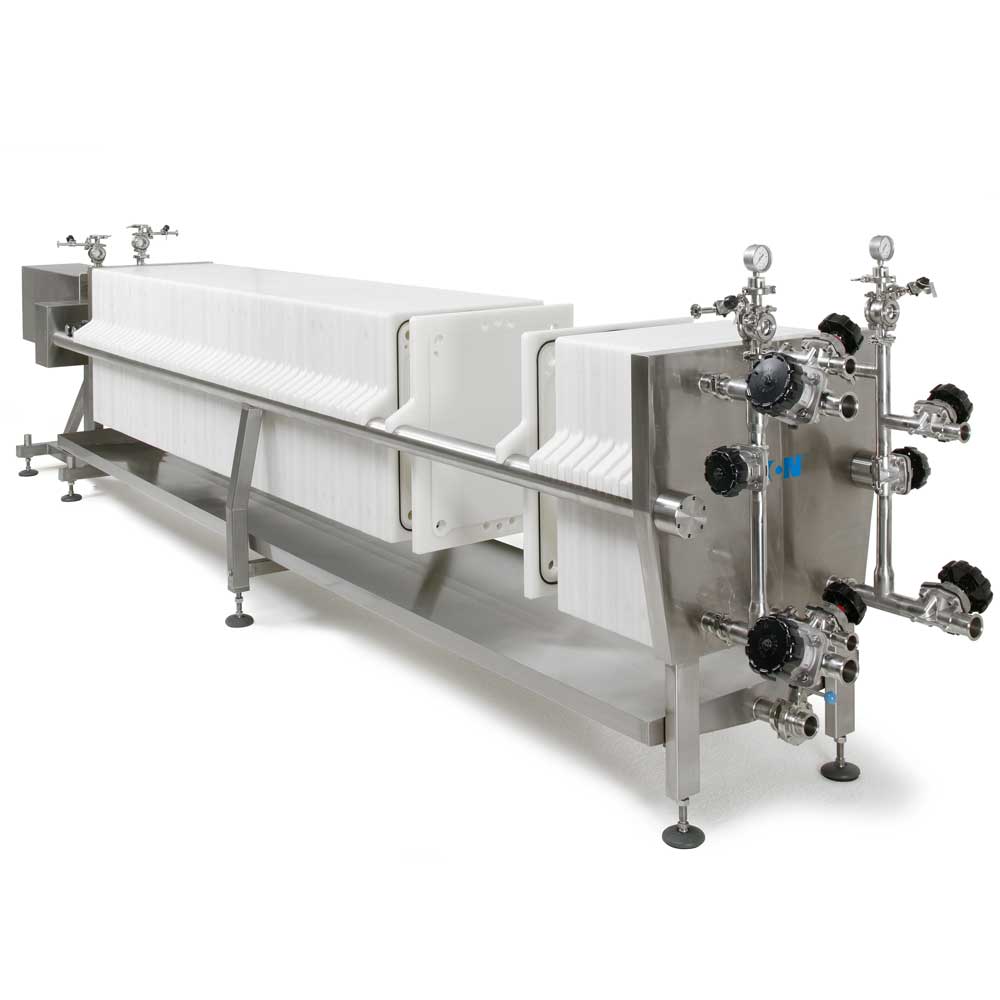

BECO INTEGRA PLATE A600 EC
BECO INTEGRA PLATE A600 EC
Eaton’s depth filtration system for critical filtration tasks in the pharmaceutical, biotech, chemical, cosmetic and food industries.
Eaton’s BECO INTEGRA PLATE 600 EC filter is a multi sheet-filter with external chamber. The product channels are sealed with depth filter sheets only and uses gaskets at the external chamber to seal the filter package.
Core features
- CIP of filter package – without depth filter sheets
- Complete drainage of filter due to unique filter plate design
- Safe operation no dripping loss due to sealed external chamber and automatic hydraulic pressure regulation
- Easy handling and good clean ability thanks to ergonomic design of chassis, and open support grid of filter plates
- Cake discharge downwards into tray underneath of filter package
- High flexibility, the filter can be used as a sheet filter or as a precoat filter
- For precoating/removing of high particle load cake plates, different widths are available
Industries include:
- Beer
- Wine
- Fruit juice
- Fruit wine
- Fine chemicals
- Pharmaceuticals
Eaton’s BECO INTEGRA PLATE 600 EC filter is designed and manufactured according to the cGMP guidelines and the FDA regulations.
Specifications
| Operating pressure: | max. 87 psi (600 kPa/6 bar) |
| Differential pressure: | max. 58 psi (400 kPa/4 bar) |
| Operating temperature: | max. 284 °F (140 °C) |
| Filter area per sheet: | 3.6 ft² (0.33 m²) |
| Product contacting parts: | Stainless steel AISI 316L/AISI 316Ti |
| Other parts: | Stainless steel AISI 304 |
| Gaskets/O-rings: | Silicone, EPDM, Viton |
| Filter inlet: | DN 65, DIN 11851/ISO 2 ½” |
| Filter outlet: | DN 65, DIN 11851/ISO 2 ½” |
| External chamber: | DN 15, DIN 11851/ISO ¾” |
| Type | Filter area ft² (m²) | Cake volume* gal (l) | Chassis size | Filter plates/ cake frames qty | Depth filter sheets 23.0 x 26.8 in (584 x 680.5 mm) qty | Weight ≈ lb (kg) |
| 600 SF | 215.3 (20.00) 387.5 (36.00) 538.2 (50.00) | – | 1 2 3 | 29/30 53/54 74/75 | 60 108 150 | 3,477 (1,577) 4,306 (1,953) 4,996 (2,266) |
| 600 ASF with 0.31″ (8 mm) cake frames | 215.3 (20.00) 387.5 (36.00) 538.2 (50.00) | 7.9 (30) 14.3 (54) 19.8 (75) | 1 2 3 | 29/30 53/54 74/75 | 60 108 150 | 3,448 (1,564) 4,259 (1,932) 4,930 (2,236) |
| 600 ASF with 0.71″ (18 mm) cake frames | 150.7 (14.00) 272.7 (25.33) 380.3 (35.33) | 24.0 (91) 43.0 (164) 60.5 (229) | 1 2 3 | 20/21 37/38 52/53 | 42 76 106 | 3,404 (1,544) 4,182 (1,897) 4,833 (2,192) |
| 600 ASF with 0.98″ (25 mm) cake frames | 129.2 (12.00) 229.6 (21.33) 315.7 (29.33) | 31.7 (120) 56.3 (213) 77.4 (293) | 1 2 3 | 17/18 31/32 43/44 | 36 64 88 | 3,455 (1,567) 4,246 (1,926) 4,892 (2,219) |
| 600 ASF with 1.57″ (40 mm) cake frames | 93.3 (8.67) 165.0 (15.33) 229.6 (21.33) | 39.9 (151) 70.8 (268) 98.5 (373) | 1 2 3 | 12/13 22/23 31/32 | 26 46 64 | 3,475 (1,576) 4,268 (1,936) 4,956 (2,248) |
| Width in (mm) | Cake volume gal (l) | Weight lb (kg) | |
| Filter plate | 0.31 (8) | – | 14.3 (6.5) |
| Feeding plate | 0.31 (8) | – | 14.3 (6.5) |
| Cake frame | 0.31 (8) | 0.26 (1.00) | 13.5 (6.1) |
| Cake frame | 0.71 (18) | 1.14 (4.33) | 23.3 (10.5) |
| Cake frame | 0.98 (25) | 1.76 (6.66) | 32.2 (14.6) |
| Cake frame | 1.57 (40) | 3.08 (11.66) | 51.6 (23.4) |
Resources
Brochures
Technical data sheets
BECO INTEGRA PLATE A600 DP
BECO INTEGRA PLATE A600 DP
Eaton’s depth filtration system for critical filtration tasks in the pharmaceutical, biotech,chemical, cosmetic and food industries.
Eaton’s BECO INTEGRA PLATE A600 DP filter is a multi sheet filter in an enclosed design. The product channels are sealed with filter sheets only and uses O-Rings at the outer edges to seal the filter package.
DESIGN
With circumferential O-ring gasket
MATERIAL
PP or PVDF, FDA listed
Core features
- Complete drainage of filter due to unique filter plate design
- Safe operation no dripping loss due to sealing of filter package by means of O-Rings and automatic hydraulic pressure regulation
- Easy handling and good clean ability thanks to ergonomic design of chassis, and sanitary designed support grooves of filter plates
- Cake discharge downwards into tray underneath of filter package
- High flexibility, the filter can either be used as a sheet filter or as a precoat filter
- For precoating/removing of high particle load cake plates in a different width are available
Industries include:
- Pharmaceuticals
- Biotech
- Fine Chemicals
- Chemicals
- Cosmetics
- Food
- Beverages
Eaton’s BECO NTEGRA PLATE A600 DP is designed and manufactured according to the cGMP guidelines and FDA regulations
Specifications
| Operating pressure/temp.: | max. 87 psi (600 kPa/6 bar) at 104 °F (40 °C) max. 43 psi (300 kPa/3 bar) at 140 °F (60 °C) |
| Differential pressure/temp.: | max. 43 psi (300 kPa/3 bar) at 104 °F (40 °C) |
| Filter area per sheet: | 3.1 ft² (0.29 m²) |
| Product contacting parts: | Stainless steel AISI 316L, Polypropylene |
| Other parts: | Stainless steel AISI 304 |
| Gaskets/O-rings: | Silicone, EPDM, Viton, FEP coated (FDA listed) |
| Filter inlet: | DN 25, DIN 11851/ISO 2 ½” |
| Filter outlet: | DN 25, DIN 11851/ISO 2 ½” |
FILTER PLATES/CAKE FRAMES
| Width | Cake volume* | Weight | |
| in (mm) | gal (l) | lb (kg) | |
| Initial / end plate | 0.98 (25) | – | 19.8 (9.0) |
| Filter plate | 0.98 (25) | – | 18.7 (8.5) |
| Feeding plate | 0.98 (25) | – | 18.7 (8.5) |
| Cake frame | 0.79 (20) | 1.15 (4.35) | 6.6 (3.0) |
| Cake frame | 1.57 (40) | 2.64 (10.00) | 13.2 (6.0) |
| Cake frame | 2.36 (60) | 4.23 (16.00) 19.8 | 19.8 (9.0) |
| Type | Filter area | Cake volume* | Chassis size | Filter plates/ cake frames | Depth filter sheets 22.6 x 26.0 in (573 x 661 mm) | Weight |
| ft² (m²) | gal (l) | qty | qty | » lb (kg) | ||
| 600 SF/ASF with 0.79″ (20 mm) cake frames | 81.16 (7.54) 143.59 (13.34) 206.02 (19.14) 312.15 (29.00) | 14.79 (56) 24.42 (100) 37.78 (143) 57.33 (217) | 1 2 3 4 | 12/13 22/23 32/33 49/50 | 26 46 66 100 | 2,934 (1,331) 3,294 (1,494) 3,600 (1,633) 4,165 (1,889) |
| 600 ASF with 1.57″ (40 mm) cake frames | 56.19 (5.22) 106.13 (9.86) 149.83 (13.92) 224.75 (20.88) | 23.78 (90) 44.91 (170) 63.40 (240) 95.10 (360) | 1 2 3 4 | 8/ 9 16/17 23/24 35/36 | 18 34 48 72 | 2,899 (1,315) 3,261 (1,479) 3,541 (1,606) 4,065 (1,844) |
| 600 ASF with 2.36″ (60 mm) cake frames | 43.70 (4.06) 81.16 (7.54) 118.62 (11.02) 175.02 (16.26) | 29.59 (112) 54.95 (208) 80.31 (304) 118.35 (448) | 1 2 3 4 | 6/ 7 12/13 18/19 27/28 | 14 26 38 56 | 2,884 (1,308) 3,225 (1,463) 3,512 (1,593) 4,006 (1,817) |
Resources
Brochures
Technical data sheets
BECO INTEGRA PLATE A600 DC
BECO INTEGRA PLATE A600 DC
Eaton’s depth filtration system for critical filtration tasks in the pharmaceutical, biotech, chemical, cosmetic and food industries.
Eaton’s BECO INTEGRA PLATE A600 DC filter is a multi-sheet filter in enclosed design. The product channels are sealed with depth filter sheets only. Sealing of the filter package is accomplished using O-rings at the outer edge of the filter package.
DESIGN
With Circumferential O-Ring Gasket
MATERIAL
Stainless Steel AISI 316L, electrolytically polished
Core features
- CIP of filter package – without depth filter sheets
- Complete drainage of filter due to unique filter plate design
- Safe operation no dripping loss due to sealing of filter package by means of O-rings and automatic hydraulic pressure regulation
- Easy handling and good clean ability thanks to ergonomic design of chassis, and open support grid of filter plates. Cake discharge downwards into tray underneath of filter package
- High flexibility, the filter can be used as a sheet filter or as a precoat filter. For precoating/removing of high particle load, cake plates in a different width are available
Industries include:
- Pharmaceuticals
- Biotech
- Fine Chemicals
- Chemicals
- Cosmetics
- Food
- Beverages
Eaton’s BECO INTEGRA PLATE A600 DC is designed and manufactured according to the cGMP guidelines and the FDA regulations
Resources
Brochures
Technical data sheets
BECO INTEGRA PLATE A400 EP/OEP
BECO INTEGRA PLATE A400 EP/OEP
BECO INTEGRA PLATE A400 EP/OEP enclosed plate and frame filter is the depth filtration system for critical filtration tasks in the pharmaceutical and biotech, chemical, cosmetics, and food industries. BECO INTEGRA PLATE A400 EP/OEP version is a multi-sheet filter with external chamber. Depth filter sheets seal the product channels. The BECO INTEGRA PLATE A400 EP version has gaskets at the external chamber that seal the entire filter package. The BECO INTEGRA PLATE A400 OEP version has a gasket-free filter package.
CLEANING
CIP/SIP
DESIGN
With External Chamber
MATERIAL
PP or PVDF, FDA Listed
Core features
- CIP of filter package without depth filter sheets.
- Complete drainage of filter due to unique filter plate design.
- Safe operation: No drip loss due to sealed external chamber and automatic hydraulic pressure regulation.
- Easy handling and good cleanability thanks to ergonomic design of chassis, and open support grid of filter plates; cake discharge downwards into tray underneath of filter package.
- High flexibility: The filter can be used as a sheet filter or as a pre-coat filter. For pre-coating/removing of high particle load, cake frames in different widths are available.
- BECO INTEGRA PLATE A400 EP/OEP filter is designed and manufactured according to the cGMP guidelines and the FDA regulations.
SPECIFICATIONS
| Operating pressure: | Max. 72.5 psi (500 kPa / 5 bar) at max. 104 °F (40 °C) |
| Differential pressure: | Max. 43.5 psi (300 kPa / 3 bar) at max. 104 °F (40 °C) |
| Operating temperature: | Max. 185 °F (85 °C) at max. 14.5 psi (100 kPa / 1 bar) |
Filter area per: – Sheet Ffltration – Cake filtration | Max. 81.8 ft2 (7.60 m2) Max. 75.4 ft2 (1.2 in cake frame) [Max. 7.00 m2 (30 mm cake frame)] |
Materials: – Filter pack – Parts in contact with the product – Other parts – Gaskets (EP only) |
PP (FDA listed) AISI 316L, PP AISI 304 Silicone, EPDM, viton |
| Effective filter area/filter element: | 1.1 ft2 (0.10 m2) |
| Cake volume (usable): | Max. 33.3 gal (2.4 in cake frame) [Max. 126 l (60 mm cake frame)] |
Resources
Brochures
Success stories
Technical data sheets
BECO INTEGRA PLATE A400 EC
BECO INTEGRA PLATE A400 EC
Eaton’s depth filtration system for critical filtration tasks in the pharmaceutical, biotech, chemical, cosmetic, and food industries.
Eaton’s BECO INTEGRA PLATE A400 EC filter is a multi sheet-filter with external chamber and is sealed using only depth filter sheets. For protection, gaskets at the external chamber are used to seal the filter package.
CLEANING
CIP/SIP
DESIGN
With External Chamber
MATERIAL
Stainless Steel AISI 316L, electrolytically polished
Core features
- CIP of filter package – without depth filter sheets
- Complete drainage of filter due to unique filter plate design
- Safe operation no dripping loss due to sealed external chamber and automatic hydraulic pressure regulation
- Easy handling and good clean ability thanks to ergonomic design of chassis, and open support grid of filter plates
- Cake discharge downwards into tray underneath of filter package
- Designed and manufactured according to the cGMP guidelines and the FDA regulations
Industries include:
- Pharmaceuticals
- Biotech
- Fine Chemicals
- Chemicals
- Cosmetics
- Food
- Beverages
SPECIFICATIONS
| Operating pressure: | max. 87 psi (600 kPa/6 bar) |
| Differential pressure: | max. 58 psi (400 kPa/4 bar) |
| Operating temperature: | max. 284 °F (140 °C), depending on the filter plates used |
| Filter area per sheet: | 1.3 ft² (0.12 m²) |
| Product contacting parts: | Stainless steel AISI 316 L / AISI 316 Ti |
| Other parts: | Stainless steel AISI 304 |
| Gaskets/O-rings: | Silicone, EPDM, Viton FEP coated (FDA listed) |
| Filter inlet: | DN 25, DIN 11851/ISO 1″ |
| Filter outlet: | DN 25, DIN 11851/ISO 1″ |
FILTER PLATES/CAKE FRAMES
| Width | Cake volume* | Weight | |
| in (mm) | gal (l) | lb (kg) | |
| Filter plate | 0.32 (8) | – | 7.1 (3.2) |
| Feeding plate | 0.32 (8) | – | 7.1 (3.2) |
| Cake frame | 0.32 (8) | 0.13 (0.48) | 5.5 (2.5) |
| Cake frame | 0.71 (18) | 0.44 (1.65) | 12.1 (5.5) |
| Cake frame | 0.98 (25) | 0.66 (2.50) | 16.8 (7.6) |
| Cake frame | 1.57 (40) | 1.14 (4.30) | 26.9 (12.2) |
| Type | Filter area | Cake volume* | Chassis size | Filter plates/ cake frames | Depth filter sheets 14.8 x 15.8 in (377 x 400 mm) | Weight |
| ft² (m²) | gal (l) | qty | qty | lb (kg) | ||
| A400 SF | 46.5 (4.32) 80.1 (7.44) 129.2 (12.00) | – – – | 1 2 3 | 17/18 30/31 49/50 | 36 62 100 | 1,195 (542) 1,424 (646) 1,735 (787) |
| A400 ASF with 0.32″ (8 mm) cake frames | 46.5 (4.32) 80.1 (7.44) 129.2 (12.00) | 2.3 (8.64) 3.9 (14.88) 6.3 (24.00) | 1 2 3 | 17/18 30/31 49/50 | 36 62 100 | 1,169 (530) 1,376 (624) 1,658 (752) |
| A400 ASF With 0.71″ (18 mm) cake frames | 33.6 (3.12) 54.3 (5.04) 95.6 (8.88) | 5.7 (21.45) 9.2 (34.65) 16.1 (61.05) | 1 2 3 | 12/13 20/21 36/37 | 26 42 74 | 1,191 (540) 1,389 (630) 1,739 (789) |
| A400 ASF with 0.98″ (25 mm) cake frames | 25.8 (2.40) 46.5 (4.32) 80.1 (7.44) | 6.6 (25.00) 11.9 (45.00) 20.3 (77.00) | 1 2 3 | 9/10 17/18 30/31 | 20 36 62 | 1,180 (535) 1,415 (642) 1,768 (802) |
| A400 ASF with 1.57″ (40 mm) cake frames | 18.1 (1.68) 33.6 (3.12) 59.4 (5.52) | 8.0 (30.10) 14.8 (55.90) 26.1 (98.90) | 1 2 3 | 6/ 7 12/13 22/23 | 14 26 46 | 1,180 (535) 1,426 (647) 1,810 (821) |
Resources
Brochures
Technical data sheets
BECO INTEGRA PLATE A400 DP
BECO INTEGRA PLATE A400 DP
Eaton’s depth filtration system for critical filtration tasks in the pharmaceutical, biotech,chemical, cosmetic and food industries.
Eaton’s BECO INTEGRA Plate A400 DP filter is a multi sheet filter in an enclosed design. The product channels are sealed with filter sheets only and uses O-Rings at the outer edges to seal the filter package.
DESIGN
With Circumferential O-Ring Gasket
MATERIAL
PP or PVDF, FDA listed
Core features
- Complete drainage of filter due to unique filter plate design
- Safe operation no dripping loss due to sealing of filter package by means of O-Rings and automatic hydraulic pressure regulation
- Easy handling and good clean ability thanks to ergonomic design of chassis, and sanitary designed support grooves of filter plates. Cake discharge downwards into tray underneath of filter package
- High flexibility, the filter can either be used as a sheet filter or as a precoat filter. For precoating/removing of high particle load cake plates in a different width are available
Industries include:
- Pharmaceuticals
- Biotech
- Fine Chemicals
- Chemicals
- Cosmetics
- Food
- Beverages
Eaton’s BECO NTEGRA PLATE A400 DP filter is designed and manufactured according to the cGMP guidelines and FDA regulations.
SPECIFICATIONS
| Operating pressure: | Max. 500 kPa / 5 bar at max. 40 °C |
| Differential pressure: | Max. 300 kPa / 3 bar at max. 40 °C |
| Operating temperature: | Depending on material |
Materials: – Filter pack: – Parts in contact with the product – Other parts – Gaskets |
PP, PVDF AISI 316L, PP or PVDF AISI 304 Silicone, EPDM, viton |
Filter area: – Sheet filtration: – Cake Filtration: |
Max. 6.60 m2 Max. 5.50 m2 (30 mm cake frame) |
| Filter inlet: | DN 25 |
| Filter outlet: | DN 25 |
Resources
