NH-TECH FILTRATION PUMPS ENGINEERING & SERVICE CO., LTD. was established in 2018
Can be used in a variety of applications where high flow capacity is
required including food and beverage, chemical, and water systems.

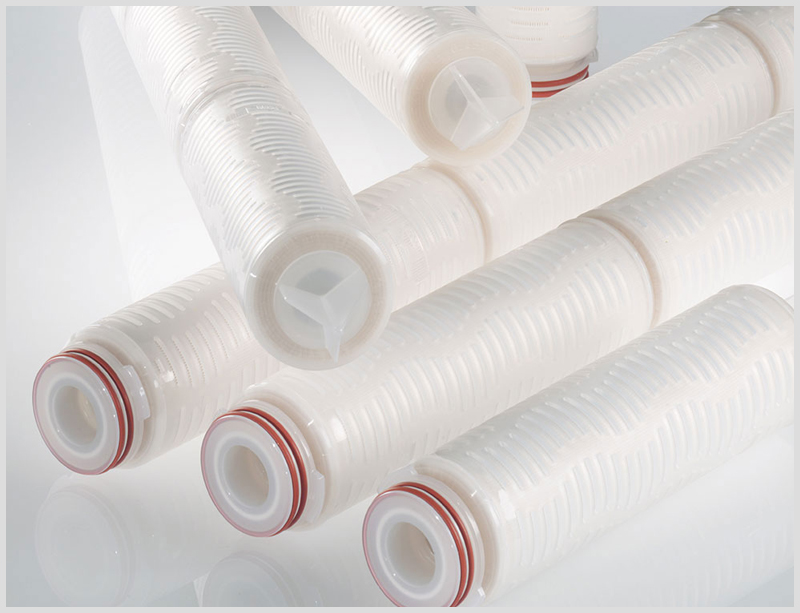

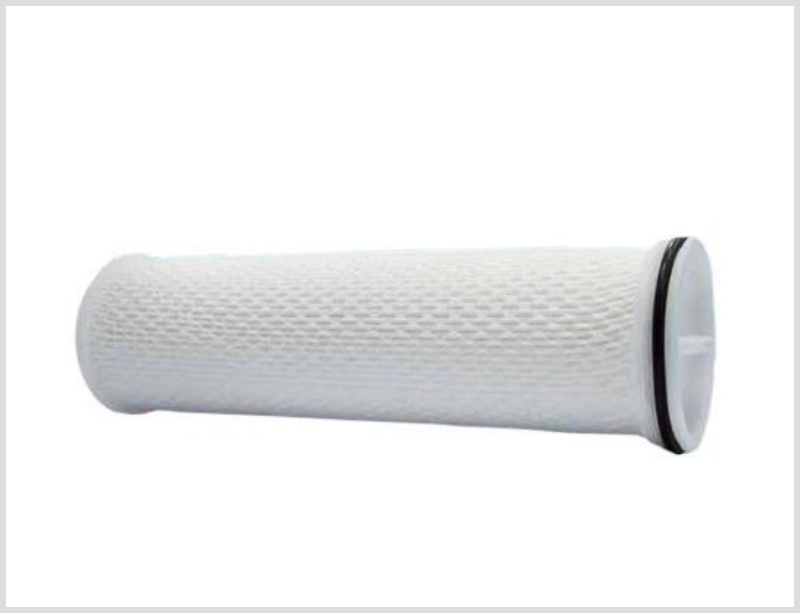

Wide range of filter cartridges offer complete filtration
solutions for food and beverage applications.
• Pre – Filtration : Depth Filters, Pleated Filters
• Final – Filtration : Pleated Filters, Membrane Filters
Absolute rated with Beta ratio >/= 5000 or 99.98% removal efficiency

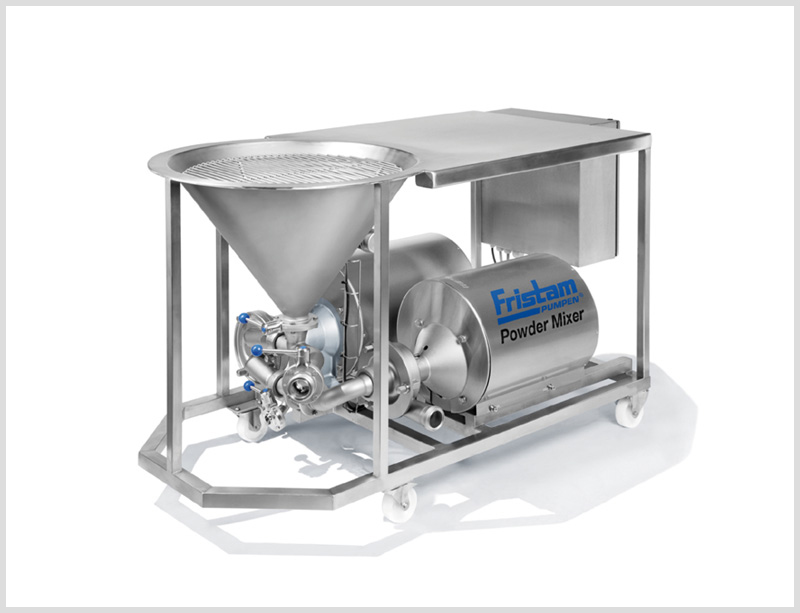

The solution to almost any problem when mixing powders and liquids.
Fristam Powder Mixers are specifically designed for dissolving, emulsifying and homogenising dry and wet ingredients into fluids.
They achieve perfect, homogeneous and smooth textures, are hygienic, extremely efficient and economical. They are also fully capable of CIP and SIP.
Supported by a base frame, a self-priming centrifugal Fristam FZ pump (series PM) or a Fristam FL3 positive displacement pump (series PMV) is connected to a Fristam shear pump. From a funnel the powder is drawn directly into the fluid product stream and then homogenised. An ergonomically designed table facilitates manual powder feeding. If equipped with specific control systems, the powder mixers can be integrated into fully automated systems. We also supply adapters for fully or semi-automatic feeding via big bags, crew converters and other conveyer systems.

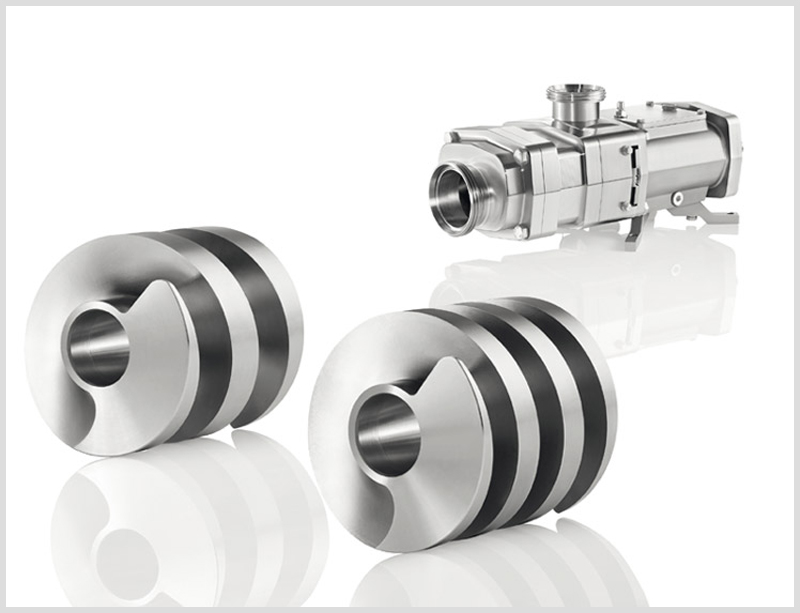

When developing this exceptional pump, we intended to set new standards in double-screw technology. We started by rethinking functional principles from the ground up and eliminated previously known deficiencies typically associated with this type of technology. We refined the design until key aspects such as smooth running, temperature stability, maintenance and repair were perfected. Consequently, Fristam are now able to offer you this unique product which has been refined down to the most minute detail.
The Fristam FDS combines all the advantages of double-screw technology with our company’s traditionally high quality standards. This positive displacement pump is ideal for the most viscous products whilst also being capable of reaching higher speeds of up to 3,600 min–1. Consequently, it can transport significant amounts of any low-viscosity medium, for example water or detergent solution. This renders the use of an additional pump for cleaning processes obsolete. The Fristam FDS can handle extreme viscosities and easily copes with high differential pressures without overheating.
FRISTAM_FDS_DE_201605.pdf | 1643.89 KB FRISTAM_FDS_EN_201605_Adress_UK.pdf | 4044.26 KB
POSITIVE DISPLACEMENT PUMP

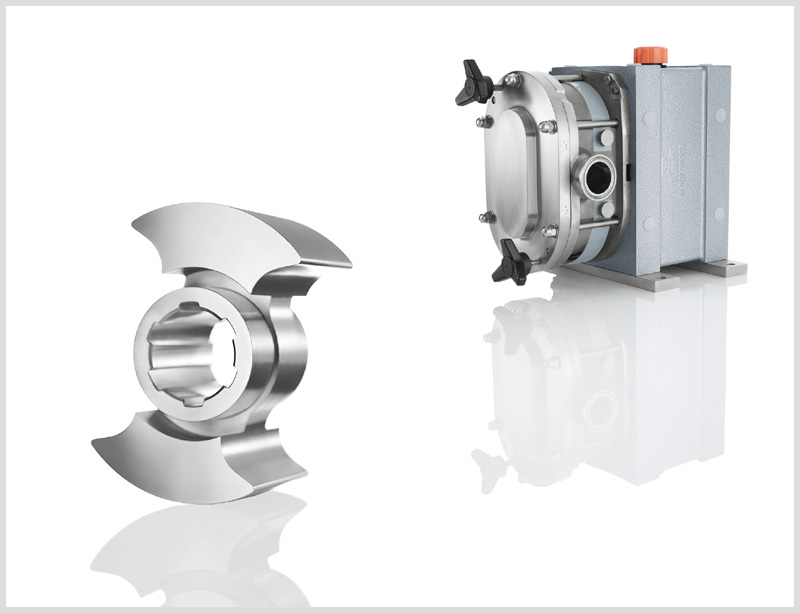

With its perfectly balanced rotor, the FKL is ideally suited for operation at high differential pressures. It is specifically designed to endure pressure peaks.
The Fristam FKL series is suitable for high flow rates of up to 120 m3/h, as well as for CIP and SIP.
All models are hygienic, gentle, low-maintenance, durable and economical.
POSITIVE DISPLACEMENT PUMPS
The FL is universally suitable for many standard applications. It is hygienic, gentle, low-maintenance, durable and economical.
The Fristam FL3 features unique helical three-winged rotors and is specifically designed for revolution speeds of up to 1,000 min–1 as well as for CIP return processes. This saves you an additional pump in a bypass line.
All models are compact, very easy to clean as well as fully capable of CIP and SIP.
All of the FL series’ pumps have a state-of-the-art system of low-slip lobes rotating free of contact in opposite directions, thus ensuring high efficiency even with low viscosities or at high temperatures. The FL’s symmetric design allows for a reversal of the rotating direction, enabling the pump to transport materials in both directions.
