Nylon 66 microporous membrane filter

Product Features

· Material
　　reinforced nylon 66 microporous membrane, with natural hydrophilicity, with polypropylene as the support layer, the material used meets GMP and FDA requirements, does not use surfactants and wetting agents, and has a wide range of chemical compatibility.
· Structure
　　multi-wrinkle filter material, discount structure, large filtration area, strong dirt holding capacity, fixed pore structure double-layer non-woven fabric support layer provides the best protection for the filter membrane. Hot-melt seal welding without using any adhesive.

Filtration accuracy

　　Absolute accuracy: 0.1um, 0.2um, 0.45um, 0.65um

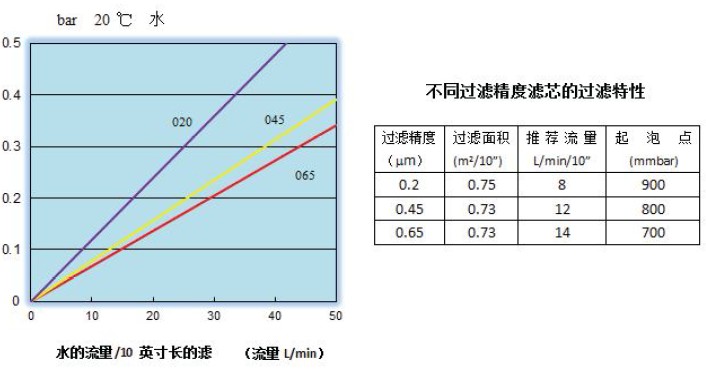

Operating conditions

At 20℃, the maximum operating pressure difference is 5.6bar, at
50℃, the maximum operating pressure difference is 5.4bar, at
80℃, the maximum operating pressure difference is 4.1bar. The
maximum continuous use temperature is 80℃. The
maximum steam sterilization temperature is 121℃. The cumulative time is 50 hours.

advantage

High purity, low adsorption, high
temperature resistance, online steam sterilization or autoclave sterilization.
Good hydrophilicity, large flow rate, no need to wet in advance.
Perform integrity testing before leaving the factory to ensure the effect of sterilization.

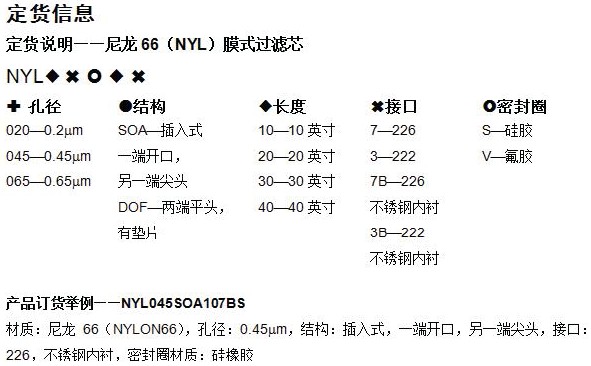

model

SOA type is
open at one end, plug-in filter, the port has a double O-ring, and the sockets are in the form of 226 and 222. There are 5, 10, 20, 30, 40 inches in length.
The DOF type
is open at both ends, with gaskets at the ends, an outer diameter of 70mm, an inner diameter of 28mm, and lengths of 10, 20, 30, and 40 inches.

Application range

Pharmaceutical industry: water for ingredients, water for injection, infusion, etc.
　　Food and beverage: beer, wine, mineral water, liquor, fruit juice, etc.
　　Electronics industry: Preparation of high-purity water.
