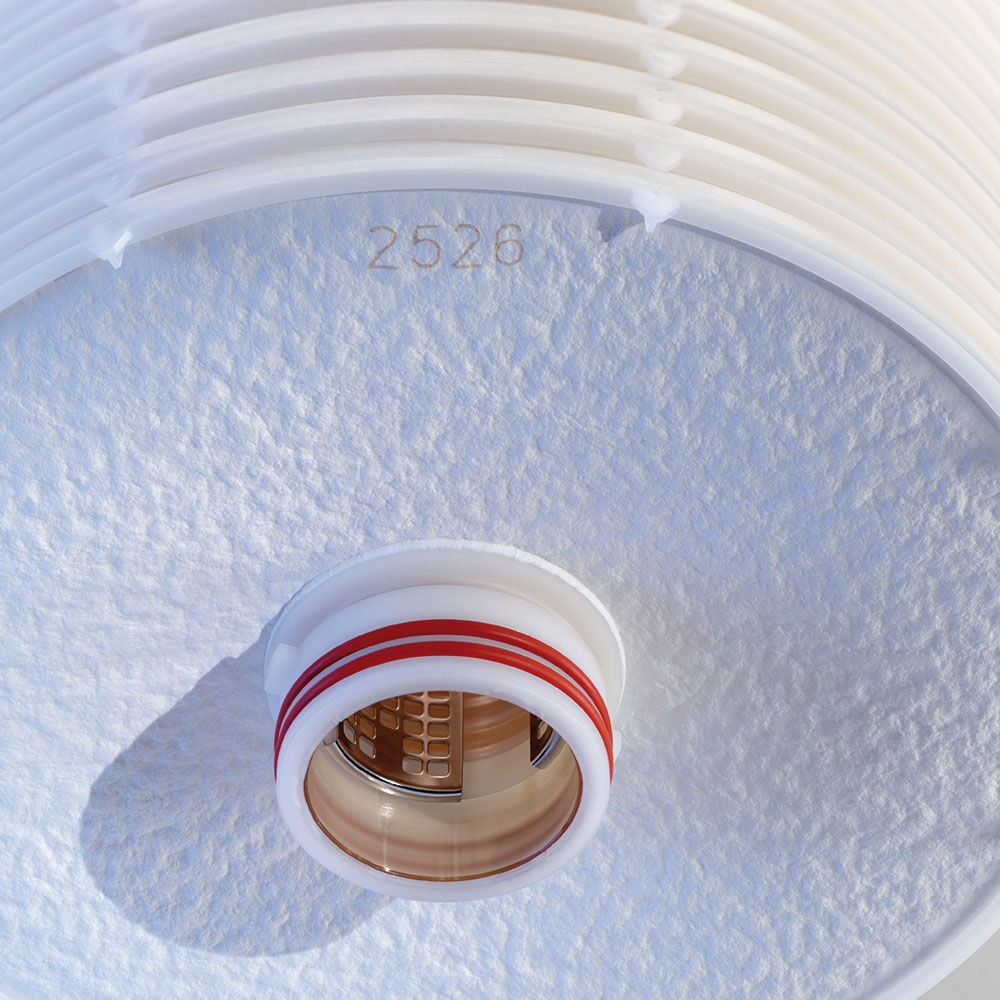

BECODISC BT
BECODISC BT stacked disc cartridges are used for clarifying filtration in the chemical, cosmetic and food industries. The filter sheets remove particles of a coarse, crystalline, amorphous or gel-like structure perfectly. An extremely wide range of filtration tasks can be performed according to given specifications, even with highly viscous liquids.
FILTER MATERIAL
Cellulose with mineral components (B27T / B40T without the addition of mineral components)
RETENTION
Coarse, clarifying and fine filtration
MAX. OPERATING TEMPERATURE
FDA, EC1935/2004
Core features
- Efficient filtration through high-dirt holding capacity
- Differentiated fiber and pore structure (internal surface area) for various applications and special process conditions
- Reliable filtration effect through an ideal combination of the depth filter and the adsorptive potential
- Maximum purity of raw material for minimum contamination on filtrate
- Comprehensive quality assurance of all raw materials and additives. Intensive in-process control guarantees
BECODISC BT for Coarse Filtration
B15T, B20T, B25T, B30T
The BECODISC stacked disc cartridges for coarse filtration have filter active components with a mineral basis for clarification of liquids with coarse crystalline and amorphous or gelatinous particle structures. These cartridges are suitable for highly viscous liquids.
Special Stacked Disc Cartridges with Low Ash Content
B27T, B40T
The BECODISC special stacked disc cartridges with low ash content were designed to meet the high filtration demands of the chemical industry. By the implementation and selection of high-purity filter cellulose, the content of washable ions is remarkably low. These stacked disc cartridges are produced with components containing low ions; therefore, the migration of iron or aluminum ions can be reduced to the detection limit.
Applications
- Polishing filtration of concentrated sugar solutions of approx. 65 °Brix
- Filtration of edible oils, vegetable extracts, liquid gelatin, oils and separation of bleaching earth
- Possible applications also include removing of activated carbon
- Depending upon particle distribution of the activated carbon can even be achieved in a single step filtration process
Applications
- Filtering sugar
- Removing activated carbon
Industries:
- Beer
- Wine
- Fruit juice
- Fruit wine
- Fine chemicals
- Pharmaceuticals
| Type | Depth filter sheet | Nominal retention rate µm | Water throughput p = 14.5 psi gpm/ft2 (△ p = 100 kPa l/m2/min) | Thickness in (mm) |
| B15T | BECO CP07S | 15.0 | 105.3 (4290) | 0.14 (3.6) |
| B20T | BECO CP03S | 20.0 | 175.2 (7140) | 0.15 (3.7) |
| B25T | BECO CP02S | 25.0 | 233.6 (9520) | 0.13 (3.3) |
| B30T | BECO CP01S | 30.0 | 306.8 (12500) | 0.18 (4.6) |
| B27T | BECO CP2KS | 27.0 | 239.5 (9760) | 0.11 (2.9) |
| B40T | BECO CP1KS | 40.0 | 555.1 (22620) | 0.17 (4.3) |
