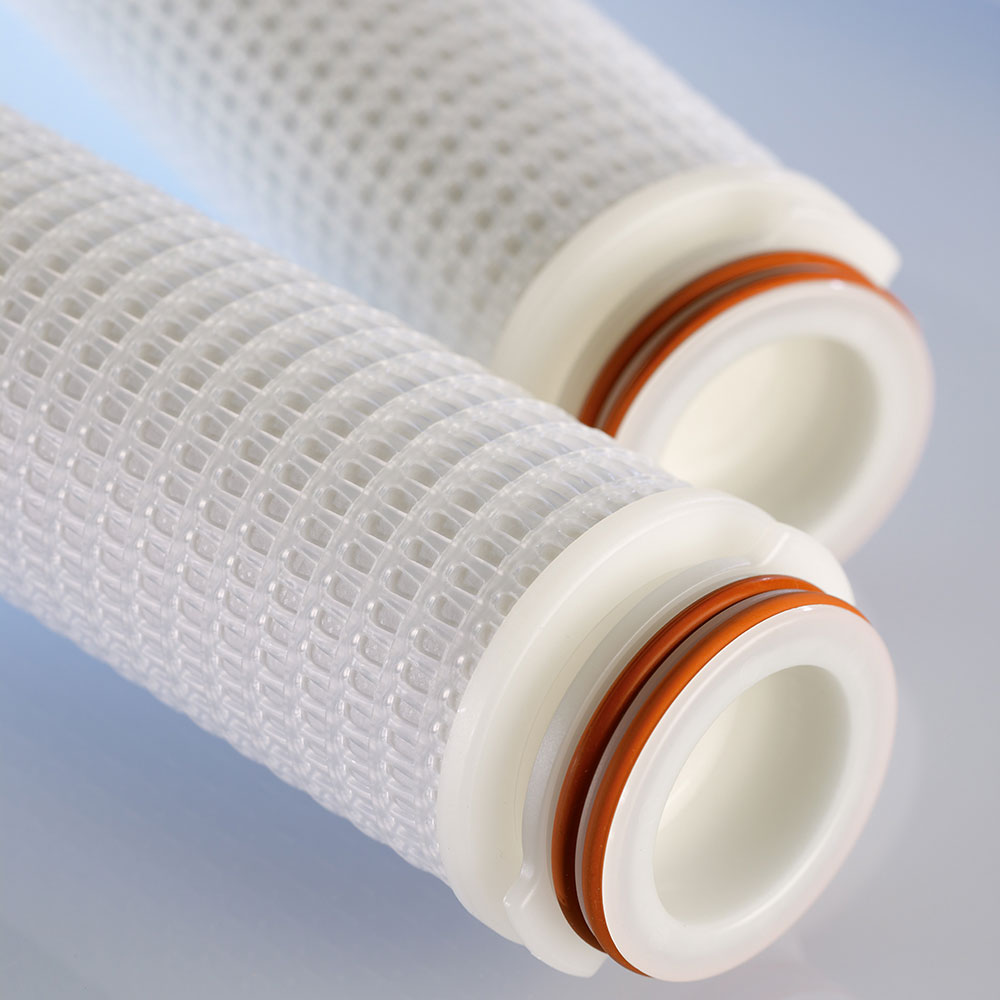

BECO PROTECT PG
BECO PROTECT PG depth filtration cartridges consist of wrapped polypropylene filter material with layered media that allows for coarse to fine filtration in a variety of applications in the beverage and food industry. The graded filter layers from coarse to fine allow a high retention efficiency and excellent backwashing capability combined with a long service life.
FILTER MATERIAL
Polypropylene (PP)
RETENTION
99.98% efficiency
MAX. OPERATING TEMPERATURE
176 °F (80 °C)
Core features
- High retention for a reliable separation effect, ß ratio ≥ 5000 or ≥ 99.98% efficiency for defined particles
- Long filter service life
- High chemical resistance through use of 100% polypropylene
- High dirt holding capacity through graded filter configuration
- Back-washable up to 29 psig (200 kPa, 2 bar) at 176 °F (80 °C)
SPECIFICATIONS
| ARTICLE NUMBER | PG002 – PG995 |
|---|---|
| FILTER MATERIAL | Polypropylene (PP) |
| RETENTION RATING (ΜM) | 0.2, 0.3, 0.5, 0.6, 0.8 1, 2, 3, 5, 10, 15, 20, 30, 40, 50, 75 100, 120, 150 |
| RETENTION EFFICIENCY | 99.98% |
| LENGTHS | 9.75″, 10″, 19.5″, 20″, 29.5″, 30″, 40″ |
| ADAPTER CODES | X, F, 0, 2, 7 |
| CAGES | Yes |
| STRUCTURE | Wrapped |
| PRESSURE HOLD TEST TEST PRESSURE IN PSIG AND DIFFUSION RATE PER 10″ | – |
| BACKWASHABILITY | Up to 29 psid (2.0 bar) at 176 °F (80 °C) |
| CHEMICAL RESISTANCE | pH 1 – 14 |
| MAX. OPERATING TEMPERATURE | 176 °F (80 °C) |
| MAX. DIFFERENTIAL PRESSURE IN FLOW DIRECTION | 69.6 psid (4.8 bar) at 77 °F (25 °C) 29 psid (2.0 bar) at 176 °F (80 °C) |
| STEAM CYCLES | > 100 at 230 °F (110 °C) in 30 minutes |
