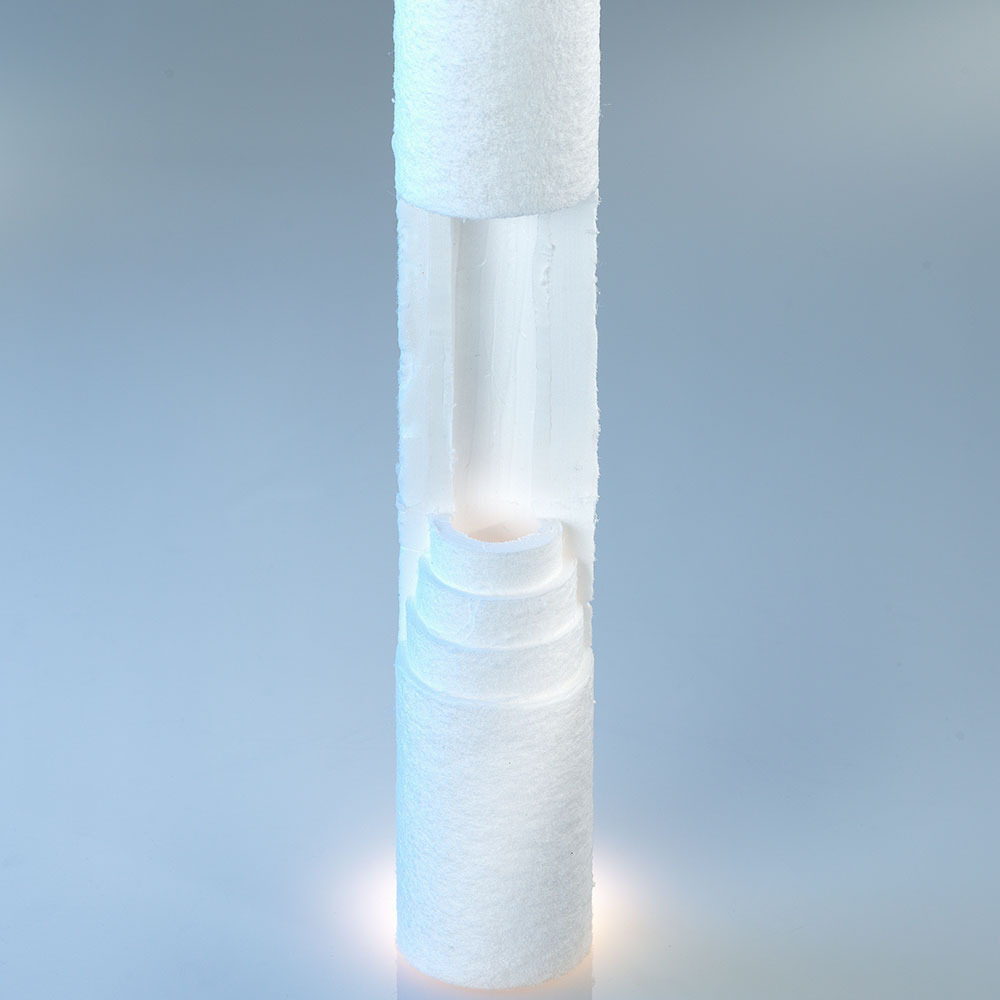

BECO PROTECT PB
The BECO PROTECT PB depth filtration cartridges consist of thermally bonded, melt-blown polypropylene filter material that gives them a high chemical resistance and added dirt holding capacities. They are ideal for meeting the coarse pre-filtration requirements of process water in the food industry.
FILTER MATERIAL
Polypropylene (PP)
RETENTION
90% efficiency
MAX. OPERATING TEMPERATURE
149 °F (65 °C)
Core features
- High dirt holding capacity
- High chemical resistance
- Pressure surge resistance
- Long service life
SPECIFICATIONS
| ARTICLE NUMBER | PB005 – PB999 |
|---|---|
| FILTER MATERIAL | Polypropylene (PP) |
| RETENTION RATING (ΜM) | 0.5, 1, 3, 5, 10, 25, 50, 75, 100 |
| RETENTION EFFICIENCY | 90% |
| LENGTHS | 9.75”, 10”, 19.5”, 20”, 29.5”, 30”, 39”, 40” |
| ADAPTER CODES | No |
| CAGES | Melt-blown |
| STRUCTURE | Wrapped |
| PRESSURE HOLD TEST TEST PRESSURE IN PSIG AND DIFFUSION RATE PER 10″ | – |
| BACKWASHABILITY | Yes |
| CHEMICAL RESISTANCE | pH 1 – 14 |
| MAX. OPERATING TEMPERATURE | 149 °F (65 °C) |
| MAX. DIFFERENTIAL PRESSURE IN FLOW DIRECTION | 46.4 psid (3.2 bar) at 68 °F (20 °C) 17.4 psid (1.2 bar) at 140 °F (60 °C) |
| STEAM CYCLES | Not recommended |
