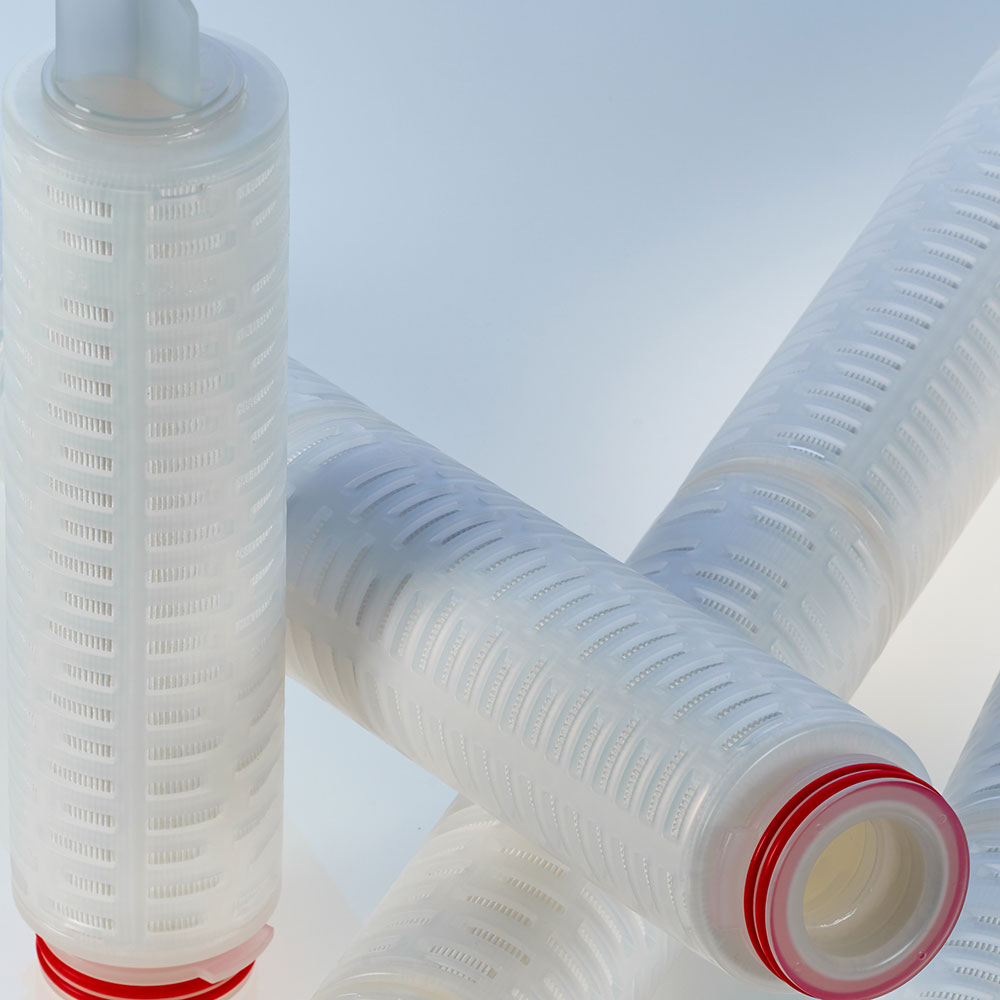

BECO MEMBRAN H Air
Pleated PTFE membrane filter cartridges for sterile filtration of gases and air.
BECO MEMBRAN H Air filter cartridges with 0.2 µm hydrophobic single layer membranes made of Polytetrafluorethylene (PTFE) are ideal for sterile air filtration and gas filtration in the food and beverage industry. The filter cartridges remove contaminants in large volumes in applications such as sterilizing fermenter supply air, tank ventilation, or cooling down storage tanks after steam sterilization. The PTFE membrane filter cartridges are available in 10″, 20″, and 30″ lengths.
FILTER MATERIAL
Teflon (PTFE)
RETENTION
Absolute (LRV-Values)
MAX. OPERATING TEMPERATURE
176 °F (80 °C)
Core features
- Long-term steam-resistance at 273 °F (134 °C)
- Validated bacteria retention capacity
- High throughput due to very low inherent membrane resistance
SPECIFICATIONS
| ARTICLE NUMBER | PTC02 |
|---|---|
| FILTER MATERIAL | Teflon (PTFE) |
| RETENTION RATING (ΜM) | 0.2 |
| RETENTION | Absolute |
| LENGTHS | 10”, 20”, 30” |
| ADAPTER CODES | 7 |
| CAGES | Yes |
| STRUCTURE | Pleated |
| PRESSURE HOLD TEST TEST PRESSURE IN PSIG AND DIFFUSION RATE PER 10″ | PTC02 |
| BACKWASHABILITY | Yes (20 °C) |
| CHEMICAL RESISTANCE | pH 1 – 14 |
| MAX. OPERATING TEMPERATURE | 176 °F (80 °C) |
| MAX. DIFFERENTIAL PRESSURE IN FLOW DIRECTION | 72.5 psid (5.0 bar) at 68°F (20 °C) 7.25 psid (0.5 bar) at 273 °F (134 °C) |
| STEAM CYCLES | ≥ 150 at 273 °F (134 °C) in 20 minutes |
